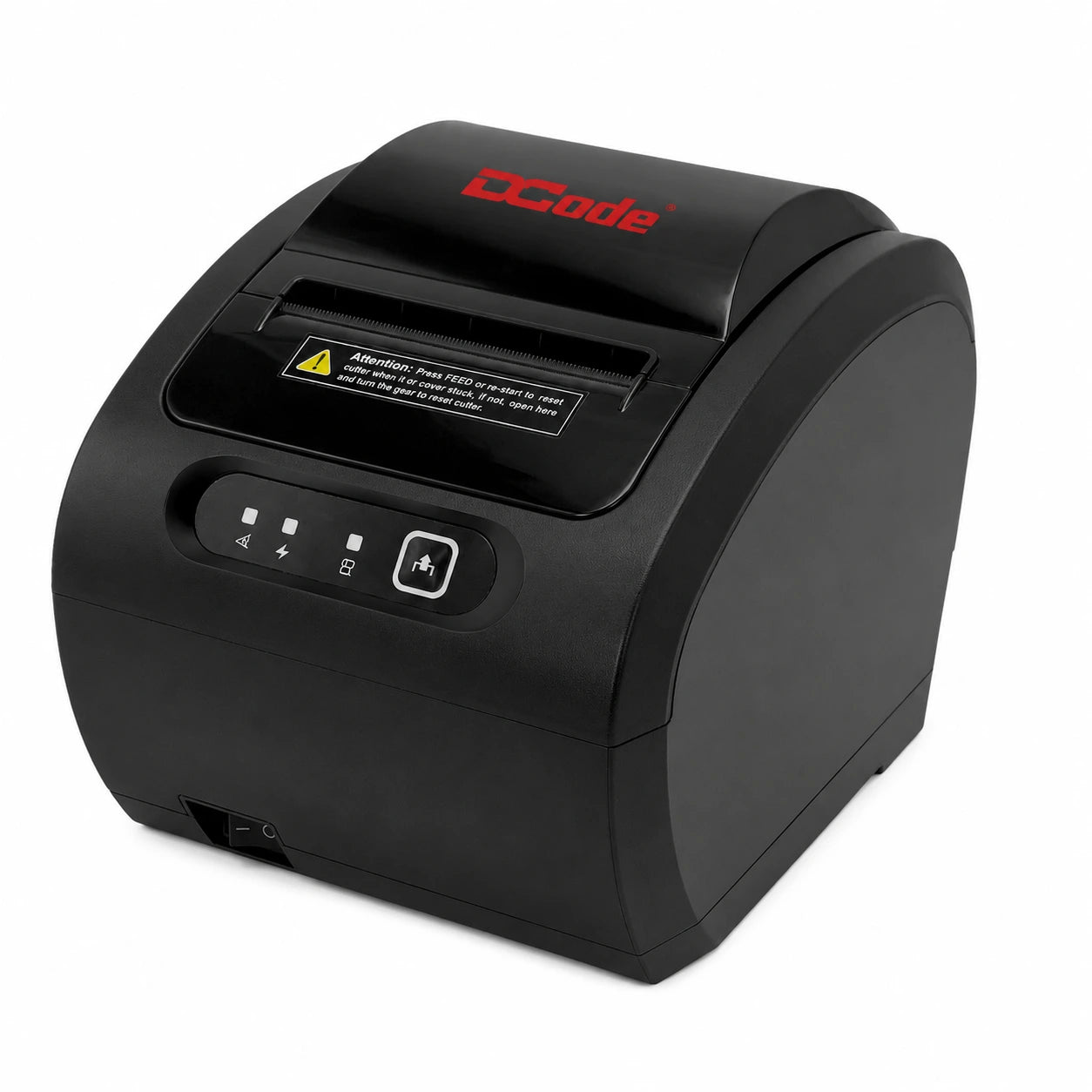

DCode DC3R1 / DC3R3 3-Inch Thermal Receipt Printer (80mm, Auto-Cutter, USB + LAN / RS232)

Product Overview

The DCode DC3R1 and DC3R3 are 3-inch direct thermal receipt printers built on the same chassis, separated only by speed and ports. The DC3R1 runs at 230 mm/s with USB + LAN. The DC3R3 runs at 260 mm/s and adds a serial port, giving USB + LAN + RS232. Both print 72 mm wide at 576 dots per line, both carry an auto-cutter, and both drive a cash drawer at DC 24V/1A — so the till pops open the moment the bill prints.

These are counter printers for Indian businesses that have outgrown a basic USB machine: supermarkets, restaurants and QSR chains, wholesale counters, pharmacies, hotels and petrol pumps. The LAN port is the practical reason to pick this family — put the printer on the shop network and any billing terminal can send to it.

Key Features

• Two variants, one chassis: DC3R1 230 mm/s USB + LAN; DC3R3 260 mm/s USB + LAN + RS232
• Auto-cutter fitted, so bills are cut cleanly instead of torn against an edge
• 72 mm print width at 576 dots per line — 48 columns in Font A, 64 in Font B
• Cash drawer port rated DC 24V/1A, so the drawer opens when the bill prints
• Networkable over LAN, so several counters can share one printer
• 96 Kbytes input buffer absorbs long bills, freeing your billing screen immediately
• Drivers for Windows, Linux, JPOS, OPOS, Android and Mac, with ESC/POS emulation
• 1D barcodes plus QR Code and PDF417 for a UPI QR on the bill

Specifications

• Brand / models: DCode DC3R1 (USB + LAN), DC3R3 (USB + LAN + RS232)
• Print method: Direct thermal
• Print speed: DC3R1 230 mm/s; DC3R3 260 mm/s
• Paper width: 79.5 ± 0.5 mm
• Print width: 72 mm
• Column capacity: 576 dots / line; Font A 48 columns, Font B 64 columns
• Auto cutter: Available
• 1D barcodes: UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN8), CODE39, ITF, CODABAR, CODE93, CODE128
• 2D barcodes: QR Code, PDF417
• Memory: 96 Kbytes input buffer; 256 Kbytes NV flash
• Power: adaptor AC 100–240V, 50–60 Hz; printer input DC 24V / 2.5A; cash drawer DC 24V / 1A
• Emulation: ESC/POS
• Drivers: Windows / JPOS / Linux / OPOS / Android / Mac; SDK for iOS, Android, Windows
• Dimensions: 192 × 145.2 × 146.3 mm
• Weight: 1.01 kg
• Environment: operating 0–45°C (10–80% RH); storage −10–60°C (10–90% RH)

Why Choose This Product?

The honest reason to buy this family over a cheaper USB-only printer is the LAN port and the cash drawer port together. Networking means your billing PC can sit anywhere and a second terminal can share the same printer — which is what actually happens as a shop grows from one counter to two. The drawer port opens the till on print without a separate trigger, and that one detail speeds up every cash transaction of the day.

Between the two variants the difference is small, and worth stating plainly: the DC3R3 is 30 mm/s faster and adds RS232. If nothing in your setup is serial, the DC3R1 does the same job for less. Note the operating range tops out at 45°C, so an unshaded counter through a north Indian summer needs shade or a fan. Tell us your billing software on WhatsApp and we will confirm the right variant before you order.

Applications

Supermarket and multi-counter retail

Put the printer on LAN and let two or three billing terminals share it, or give each lane its own and manage them by IP. The cash drawer opens on print, so the cashier's hands never leave the counter.

Restaurant billing and kitchen KOT

One unit on the cash counter for bills, another on the same network in the kitchen for KOTs. At 230–260 mm/s tickets keep up with a full dinner service.

Pharmacy and multi-till chemist counters

Batch numbers, expiry dates and HSN codes print legibly at 48 or 64 columns, and a networked printer means the second billing point needs no machine of its own.

Wholesale, distribution and hotel front desks

Full 80 mm width for wide item descriptions and tax columns on a GST invoice a buyer files. Pick the DC3R3 where an older RS232 POS is still in use.

What's Included in the Box

Supplied as a printer with its data cable, power adaptor and documentation. Contents vary by variant and batch — message us on WhatsApp before ordering and we will confirm what ships with the stock in hand, including whether a cash drawer cable is separate.

How to Use

1. Connect the power adaptor, then plug in USB, LAN, or RS232 on the DC3R3. For LAN, run the cable to the same switch as your billing terminals.
2. Install the DCode driver for your OS, or add it as a generic ESC/POS device. On LAN, assign a fixed IP so it does not change address after a power cut.
3. Open the cover, drop in an 80 mm roll with the printing side facing the head, pull out a short tail and close the cover firmly.
4. Run the bundled Windows or Linux test utility to print a self-test page and confirm the interface, IP and paper width.
5. Set 80 mm paper in your billing software, connect the cash drawer if you use one, and print a live GST bill to check the layout.
