How to Build a Desktop PC in India: Matching CPU, Motherboard, RAM, GPU and SSD

Our other guides go deep on single parts: the graphics card buying guide, the SATA vs NVMe SSD comparison, the gaming processor guide, the laptop RAM compatibility guide and the Ryzen 5 5600X and LGA 1151 motherboard guide. This page is about the whole machine and how the parts depend on each other. Every part named below is a live listing at Tech Depot India. Specs quoted come from the product titles, and prices stay on each product page so they never go stale here.

Five matching rules that stop a wasted build

1. Socket: processor and board must be one family

A desktop processor drops into one socket type only. The listings in this guide split into two families: AM4 for the AMD Ryzen chips, and LGA 1151 for the Intel Pentium Gold and Core i3 chips. A board from one family cannot take a chip from the other, so decide the family before you shop for anything else.

2. Chipset and BIOS: the board must recognise the chip

Sharing a socket is not enough on its own. Two Intel chips can both be LGA 1151 and still need different boards, and an AM4 board sometimes needs a BIOS update before a newer Ryzen will start. Open the board maker's CPU support list and look for your exact processor name before paying.

3. Memory: match the generation and the shape

Desktop boards in this guide take DDR4 DIMMs. Laptops take smaller SO-DIMM modules, and older ones take DDR3. The three are not interchangeable. If you are stuck on a laptop question, our DDR3 vs DDR4 guide covers it step by step.

4. Graphics card: scale it to the processor

A graphics card does the heavy lifting in games, but the processor feeds it. Pair a top card with a weak chip and the card sits waiting; pair a strong chip with a tiny card and the processor is wasted. The bottleneck table later in this page shows sensible and poor pairings side by side.

5. Power and case: the part nobody photographs

Large cards need space and proper power connectors. Check the listing for card size, compare it with your case, and make sure your power supply has the connectors the card asks for.

Three reference builds you can adapt

These are starting points, not fixed bundles. Swap parts within the same socket family and the logic still holds.

Build 1: an everyday desktop on LGA 1151

Good for browsing, study and office tools. The aim is a low-cost, compact machine. Check each product page for whether the processor has built-in graphics; if it does, a separate card is optional.

• Processor: Refurbished Intel Core i3 desktop processor. This listing is a Refurbished Intel Core i3 6th/7th Gen chip, so it is a second-hand part. It has 2 cores and 4 threads on LGA 1151.
• Board: the MSI B250M PRO-VDH motherboard, a Micro-ATX board with the Intel B250 chipset and DDR4 memory.
• Optional graphics: the Gigabyte GT 1030 Low Profile if you need extra display outputs or have a slim case.
• Memory and storage: DDR4 desktop modules from the RAM collection, and a drive from the SSD collection.

Build 2: a 1080p gaming desktop on AM4

The idea is a 6-core Ryzen chip with an entry board and a mid-range card, keeping the budget on the part that moves frame rates.

• Processor: the AMD Ryzen 5 3500, with 6 cores and 6 threads on AM4.
• Board: the MSI A320M-A PRO board, with the AMD A320 chipset, AM4 socket and DDR4. Confirm the BIOS supports your chip.
• Graphics, option one: the MSI RTX 4060 Ventus 2X Black OC with 8GB GDDR6.

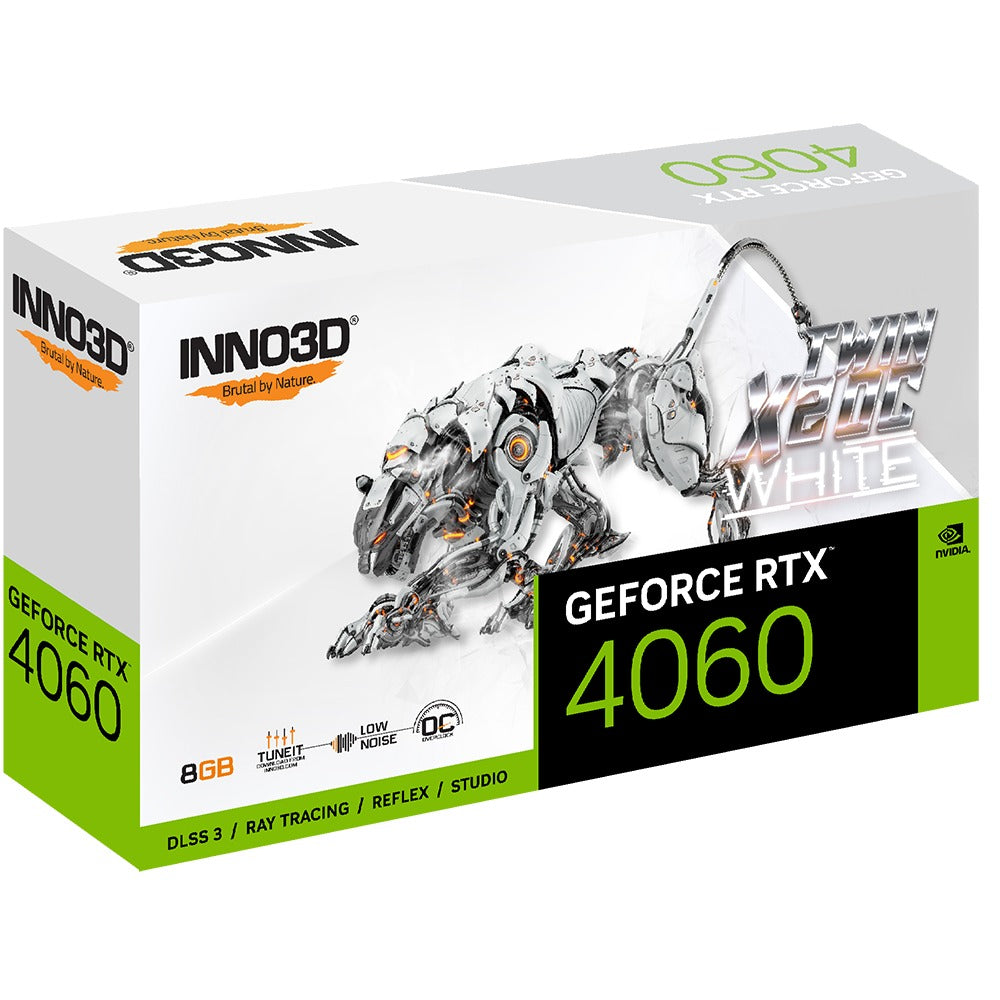

• Graphics, option two: the Inno3D RTX 4060 Twin X2 OC White, a white edition with 8GB GDDR6.
• Graphics, option three: the Galax RTX 4060 1-Click OC 2X, also 8GB GDDR6.

Build 3: a heavier AM4 desktop for 1440p and creative work

Here the 12-core chip and a stronger card handle higher resolutions and long renders. The A320 board above is an entry model, so for a 12-core chip check the support list carefully or look through the motherboard collection for a higher-tier AM4 board.

• Processor: the AMD Ryzen 9 3900X, with 12 cores and 24 threads on AM4.
• Graphics, 12GB GDDR6X tier: the ZOTAC RTX 4070 Twin Edge.
• Graphics, a step above: the ZOTAC RTX 4070 Ti AMP AIRO, the ZOTAC RTX 4070 Ti Trinity or the Inno3D RTX 4070 Ti X3, all 12GB GDDR6X.
• Graphics, 16GB GDDR6X tier: the Inno3D RTX 4070 Ti Super Twin X2 or the Inno3D RTX 4080 X3.

Graphics card tiers at a glance

Browse them all, side by side, in the graphics cards collection.

Bottleneck check: pairings that waste money

The Intel Pentium Gold G5420 is a 2-core, 4-thread LGA 1151 chip. It is perfectly fine for office use, and it is the processor where graphics card ambition should stay modest. Check the board support list before pairing it with the B250 board from Build 1, because the two Intel chips in this guide come from different generations.

Upgrading what you own instead of building

If the machine you have is a laptop, two parts in this range can add life to it. Check your model first, because both are very specific.

• Memory: the Samsung DDR3 laptop RAM is a 204-pin SO-DIMM for laptops that take DDR3, offered in 4GB and 8GB capacities at 1600MHz.
• Storage: the mSATA solid state drive is for devices with an mSATA slot. It will not fit an M.2 slot.

Six checks before you pay

• Does the processor socket match the board socket exactly?
• Is your exact processor on the board maker's CPU support list?
• Does the RAM generation and shape match what the board takes?
• Will the graphics card fit your case, and does your power supply have its connectors?
• Is the card reasonably matched to the processor, using the table above?
• Is the part you are buying described honestly? The Core i3 listing is refurbished and says so.

Frequently asked questions

What should I buy first when building a desktop PC?

Start with the processor and its socket, because that fixes your motherboard choice and, through the board, your RAM generation. Choose the graphics card after the processor so you can scale it sensibly.

Can I mix an AMD processor with an Intel motherboard?

No. Ryzen chips fit the AM4 socket and the Intel chips here fit LGA 1151. The sockets are different shapes and cannot be swapped.

Will a strong graphics card fix a slow old processor?

Not fully. In games the processor still has to prepare each frame, so a weak chip can hold back an expensive card. Upgrade the two together.

Can my laptop take the Samsung DDR3 RAM and the mSATA SSD?

Only if it has a DDR3 SO-DIMM slot and an mSATA slot. Check your laptop model's manual or the labels inside before buying either one.

Is it better to buy a prebuilt or build my own?

Building lets you choose each part and spend where it counts, but you must check compatibility yourself. If you want a finished machine with no assembly, this route is not for you.
