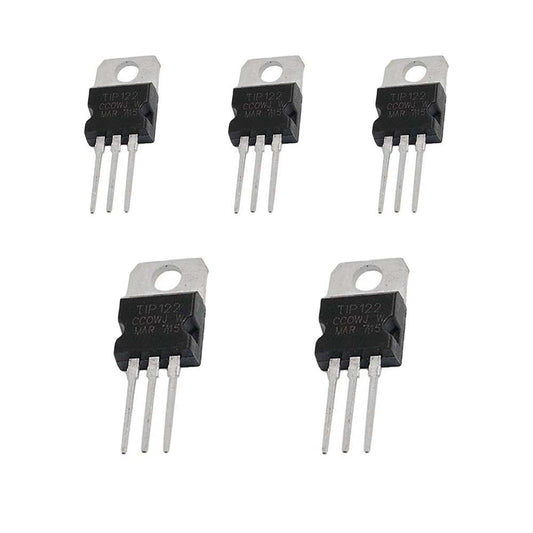

TIP122 Darlington NPN Transistor - (Pack of 5)
TIP122 Darlington NPN Transistor - (Pack of 5)
Shipping calculated at checkout.
TIP122 Darlington NPN Transistor - (Pack of 5)
Get a pack of 5 TIP122 Darlington NPN transistors - high-gain, high-current power transistors ideal for motor driving, relay control, and switching applications. From Tech Depot India, Bengaluru.
Specifications
| Transistor Type | NPN Darlington Pair |
| Package | TO-220 |
| Maximum Collector-Emitter Voltage (Vce) | 100V |
| Maximum Collector Current (Ic) | 5A (continuous) |
| DC Current Gain (hFE) | >= 1000 (typical) |
| Maximum Power Dissipation | 65W (with heatsink) |
| Base-Emitter Saturation Voltage | ~2.5V |
| Collector-Emitter Saturation Voltage | ~2V @ Ic = 3A |
| Number of Pins | 3 (Base, Collector, Emitter) |
| Quantity | 5 Pieces |
| Operating Temperature | -65 degreesC to +150 degreesC |
| Origin | Original / Authentic |
| Warranty | |
| Support | Email & WhatsApp reliable |
Key Features
- High Current Gain (hFE >= 1000): Darlington configuration delivers exceptional gain, allowing a tiny base current from a microcontroller to switch several amps of load current.
- 5A Continuous Collector Current: Comfortably drives DC motors, solenoids, relays, high-power LEDs, and resistive heating elements.
- 100V Collector-Emitter Voltage: Provides ample voltage headroom for 12V, 24V, and even 48V load circuits.
- 65W Power Dissipation (with Heatsink): TO-220 package bolts directly to a heatsink for sustained high-power operation without thermal runaway.
- Built-in Base-Emitter Resistor: Internal resistor network ensures clean turn-off and reduces external component count.
- Integrated Flyback Diode: Internal collector-emitter damper diode protects against inductive kickback from motors and relays.
- Direct Microcontroller Compatibility: Can be driven directly from 3.3V or 5V logic through a simple base resistor - no additional driver stage needed.
- Industry-Standard TO-220 Package: Easy to mount on breadboards, perfboards, PCBs, or heatsinks with standard M3 hardware.
- Pack of 5: Ideal quantity for multi-channel projects, classroom kits, or keeping spares on hand.
Why Choose This?
- 100% authentic TIP122 transistors sourced from trusted, authorized suppliers
- Individually tested and inspected before dispatch
- Expert technical support to help you integrate the TIP122 into your circuit
- Value pack of 5 - lower per-unit cost for multi-transistor designs
How the TIP122 Darlington Transistor Works
The TIP122 is a Darlington pair - two NPN transistors connected internally so the emitter of the first feeds the base of the second. This cascaded arrangement multiplies the individual gains, producing an overall hFE of 1000 or more. In practical terms, a base current of just 3-5 mA (easily supplied by an Arduino or Raspberry Pi GPIO pin through a 1 kOhm resistor) can fully saturate the transistor and switch up to 5A of load current.
The TO-220 package includes a metal tab connected to the collector, making it simple to bolt the transistor to an aluminium heatsink for thermal management in continuous-duty applications. An internal damper diode from collector to emitter provides built-in protection when switching inductive loads such as motors or relay coils.
Pin Configuration (TO-220, front face, left to right)
| Pin 1 | Base (B) |
| Pin 2 | Collector (C) - also connected to metal tab |
| Pin 3 | Emitter (E) |
Project Ideas
- DC Motor Speed Controller: Use PWM from an Arduino to vary motor speed through the TIP122 - perfect for robotics, conveyor belts, and fan control.
- Relay Driver Module: Safely interface 5V logic with 12V or 24V relay coils for home automation switching.
- LED Strip / High-Power LED Driver: Switch 12V LED strips on and off
Frequently Asked Questions
When will I receive my order?
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
