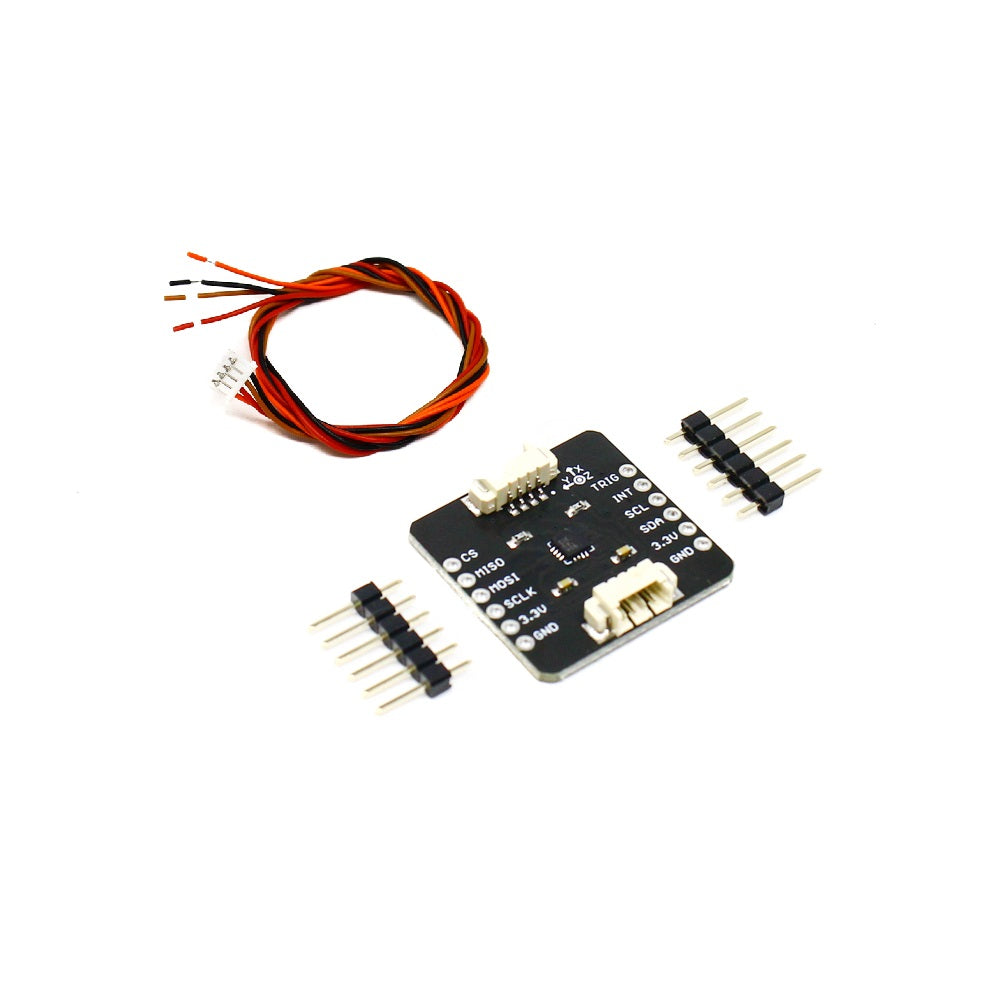

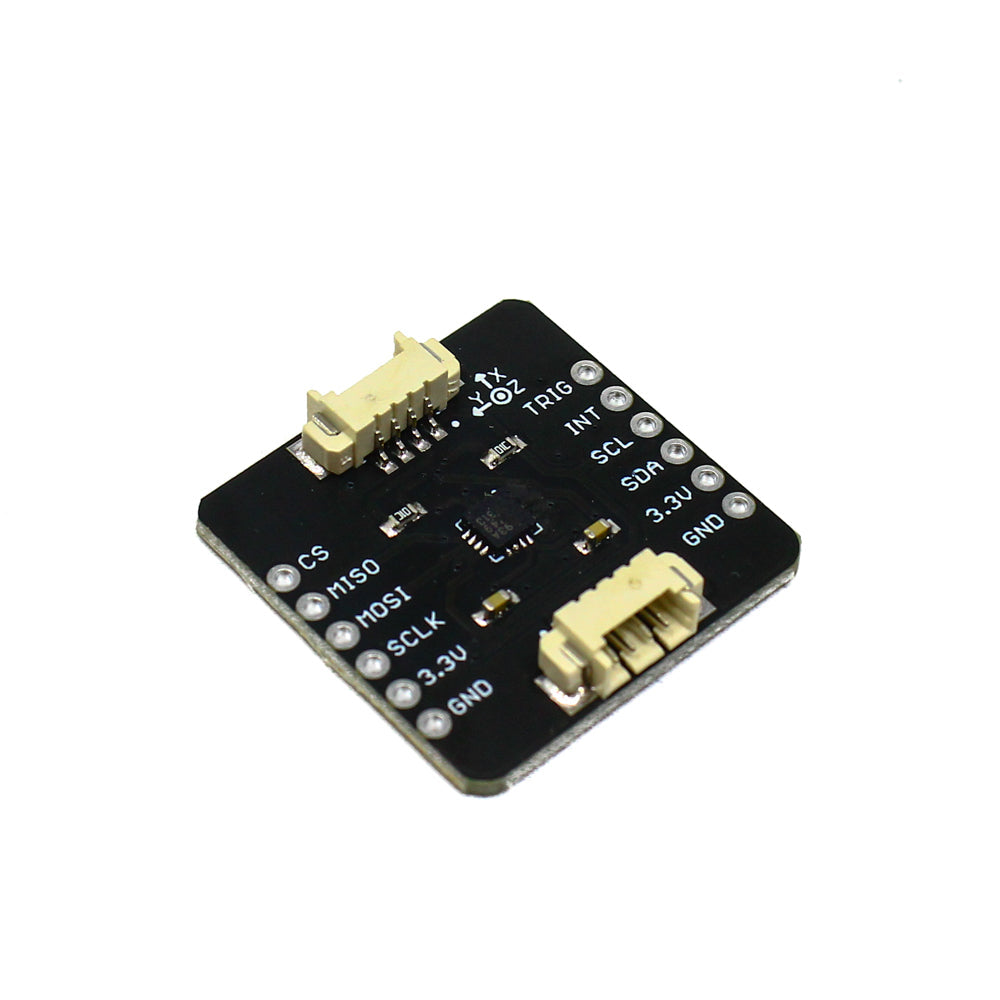

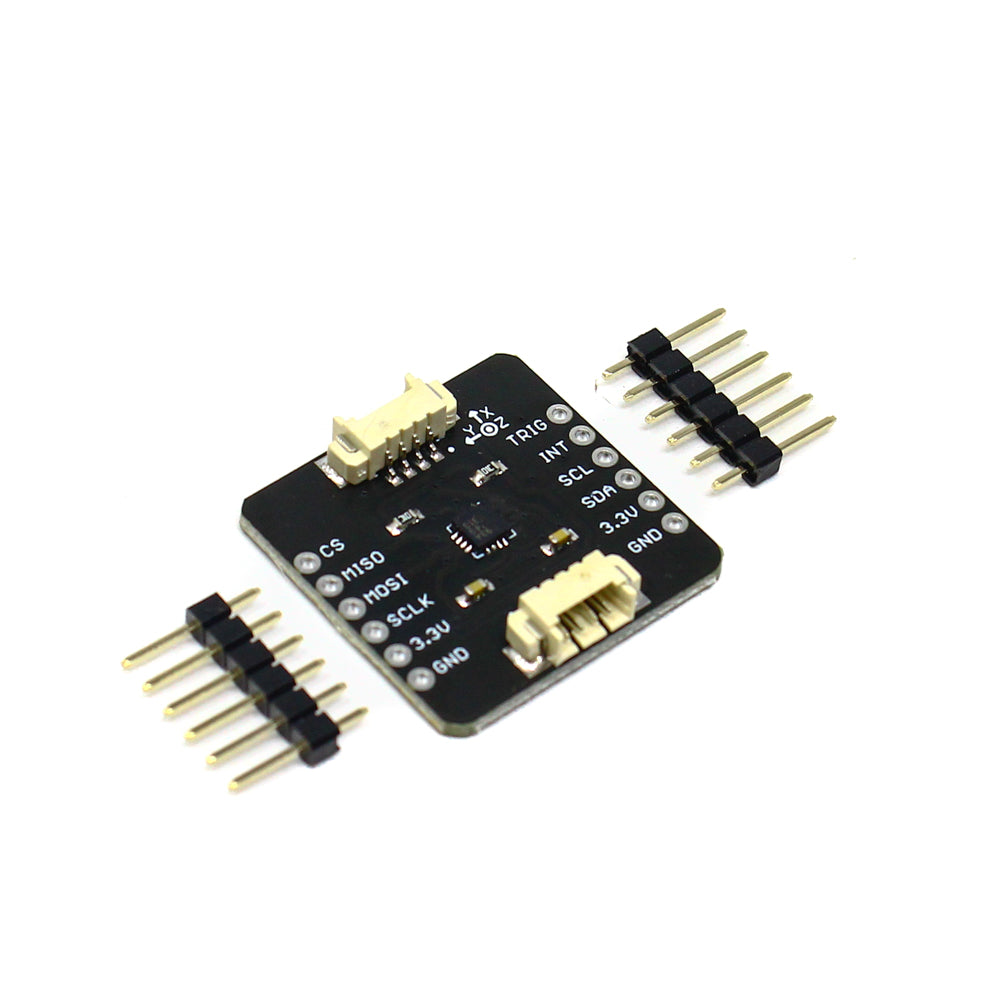

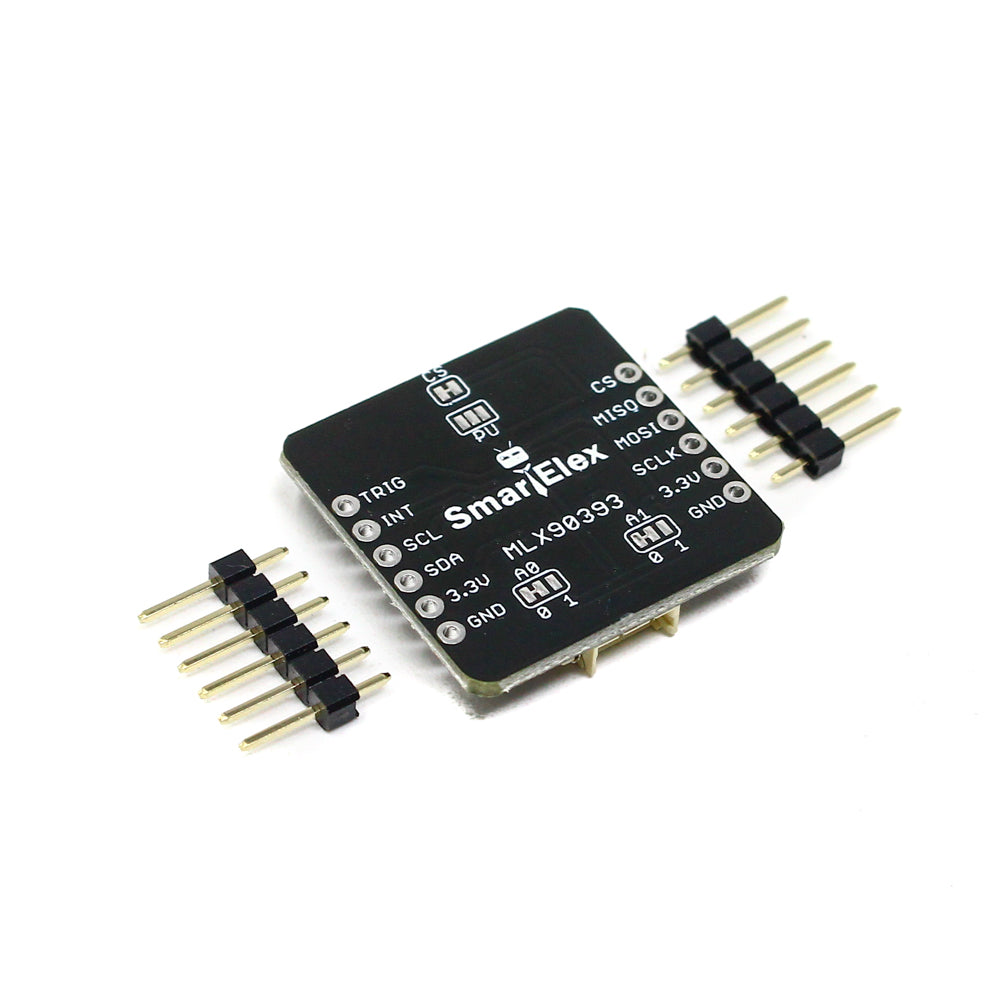

SmartElex Triple Axis Magnetometer MLX90393
SmartElex Triple Axis Magnetometer MLX90393
SmartElex Triple Axis Magnetometer MLX90393
Unlock precise 3D magnetic field sensing with the SmartElex Triple Axis Magnetometer MLX90393. Built around the Melexis MLX90393 IC, this breakout board delivers high-resolution magnetic flux measurements across X, Y, and Z axes - ideal for contactless position sensing, joystick replacements, and compass applications. Available now at The Tech Depot, Bengaluru. Trusted by makers and professionals. Fast shipping, 7-day warranty on manufacturing defects, expert technical support.
Specifications
| Sensor IC | Melexis MLX90393 |
| Measurement Axes | 3 (X, Y, Z) + Temperature |
| Communication Interface | I2C and SPI |
| Operating Voltage | 3.3V (onboard regulator accepts up to 5V) |
| Magnetic Range | +/-50 mT (configurable gain) |
| Resolution | Up to 16-bit per axis |
| I2C Addresses | Selectable (up to 4 devices on same bus) |
| Operating Temperature | -20 degreesC to +85 degreesC |
| Board Dimensions | Compact breakout form factor |
| Brand | SmartElex |
| Type | Magnetometer Sensor Breakout Board |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
| Price | Rs.7,325.00 |
Key Features
- True Triple-Axis Sensing: Measures magnetic flux density simultaneously on X, Y, and Z axes for complete 3D field mapping.
- Built-in Temperature Sensor: Onboard temperature measurement enables thermal compensation for drift-free readings.
- Dual Interface Support: Communicate via I2C or SPI - flexible integration with Arduino, Raspberry Pi, ESP32, and other microcontrollers.
- Configurable Gain & Resolution: Adjustable sensitivity settings let you optimize for either wide dynamic range or high precision.
- Multiple I2C Addresses: Connect up to 4 MLX90393 modules on a single I2C bus for multi-point magnetic field measurement.
- Wide Voltage Compatibility: Onboard 3.3V regulator allows safe operation with 5V logic microcontrollers.
- Low Power Modes: Single-shot and burst measurement modes help conserve power in battery-operated designs.
- Compact Breakout Design: Breadboard-friendly header layout for rapid prototyping and easy PCB integration.
Why Choose This?
- 100% authentic SmartElex module sourced from trusted suppliers
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse across India
- Expert technical support included - we help you get it working
- High-performance Melexis MLX90393 IC with proven industrial reliability
- Versatile I2C/SPI interface compatible with all popular development platforms
- Ideal upgrade over single-axis Hall sensors for advanced magnetic field applications
Project Ideas
- Digital Compass / Heading Sensor: Build a tilt-compensated electronic compass for robotics, drones, or navigation systems using 3-axis magnetic data.
- Contactless Joystick / Knob: Replace mechanical potentiometers with magnet-based contactless rotary or linear position sensing for wear-free, long-life controls.
- Magnetic Field Mapping: Create a portable gaussmeter to visualize and log magnetic fields around motors, magnets, coils, and electronic devices.
- Proximity & Position Detection: Detect the position of a permanent magnet through enclosures for contactless switching, lid detection, or linear displacement measurement.
- Current Sensing (Non-Invasive): Measure the magnetic field generated by current-carrying conductors for non-contact current monitoring in power systems.
- Robotics & Autonomous Navigation: Integrate heading data with IMU sensors for improved dead-reckoning and orientation estimation in mobile robots.
- Learning & Education: Excellent hands-on tool for physics and electronics students exploring electromagnetism, sensor interfacing, and I2C/SPI communication protocols.
- Industrial Automation: Implement precise rotary or linear position feedback in actuators, valves, and automated machinery without physical contact.
Compatible Platforms
- Arduino Uno, Mega, Nano, and compatible boards
- ESP32 and ESP8266 Wi-Fi development boards
- Raspberry Pi (via I2C or SPI)
- STM32 and ARM Cortex-M microcontrollers
- Teensy, BeagleBone, and other
