SmartElex Load Cell Amplifier - HX711

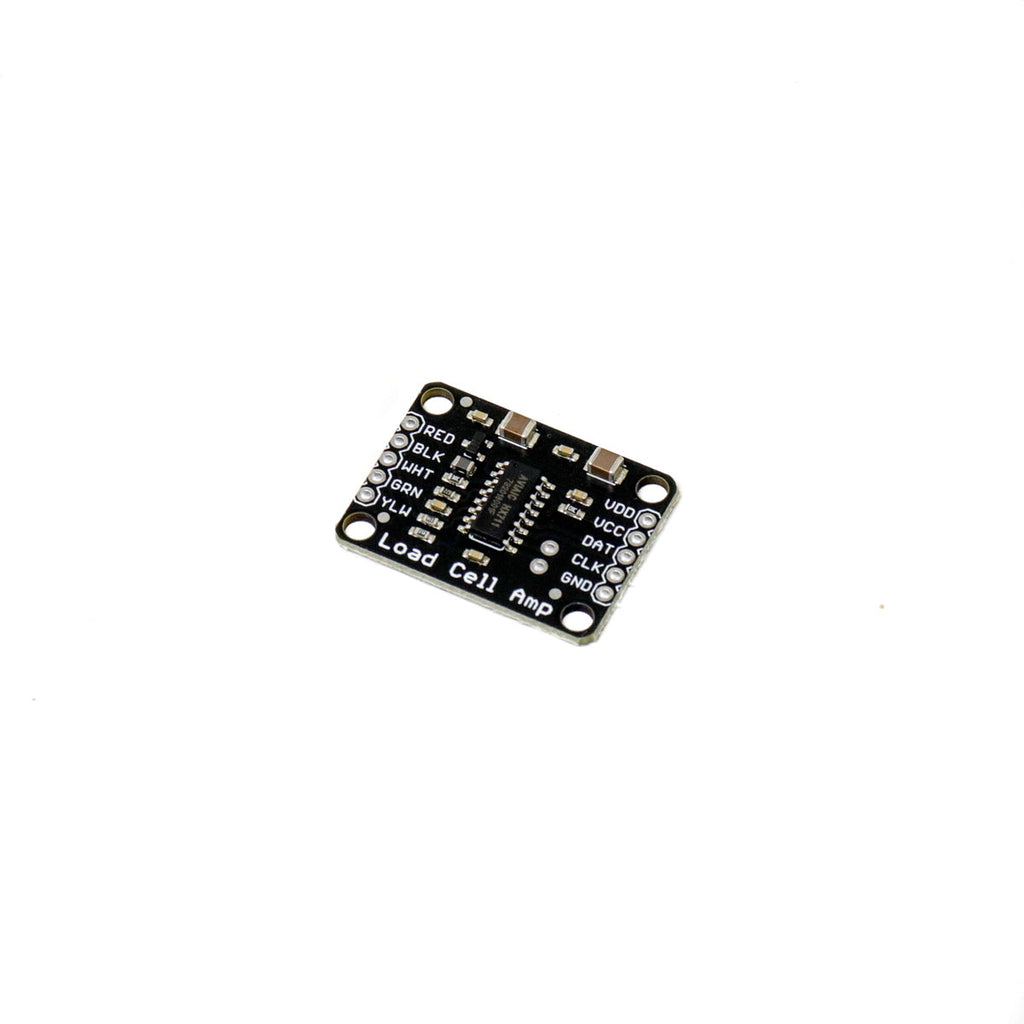

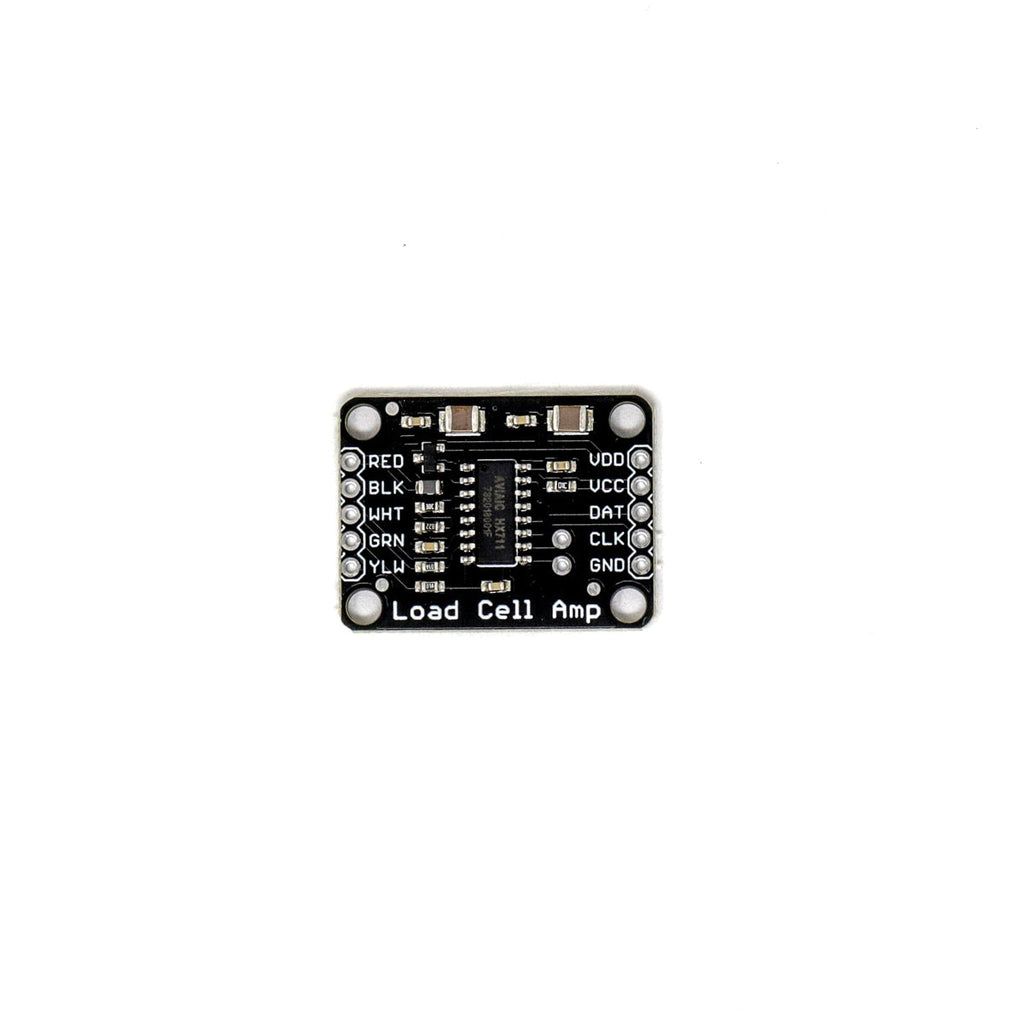

The SmartElex HX711 load cell amplifier is a compact breakout for the HX711 24-bit ADC that lets you read load cells and measure weight accurately. When you check the SmartElex HX711 price in India, this HX711 load cell amplifier for weight measurement is a go-to choice for makers and engineers in Bangalore and across India. It ships from our Bengaluru warehouse with a GST invoice.
Key Specifications
| Amplifier IC | HX711 24-bit ADC |
| Function | Load cell / strain gauge amplifier |
| Selectable Gain | 32, 64, 128 |
| Interface | 2-wire digital (clock + data) |
| Supply | Separated analog and digital supply |
| Country of Origin | Imported |
Key Features
- Reads load cell resistance changes for accurate weight data
- Separated analog and digital supply for lower noise
- Added 3.3uH inductor and 0.1uF filter cap for cleaner readings
- Simple 2-wire connection to any microcontroller
Applications & Use Cases
- DIY digital scales and industrial weighing
- Process control and force measurement
- Presence detection and load monitoring
Frequently Asked Questions
Which load cells work with the HX711?
It works with standard 4-wire strain-gauge load cells; calibrate in code for accurate weight.
How does it connect to a microcontroller?
Via a simple 2-wire digital interface (clock and data), compatible with Arduino and similar boards.
