Flame sensor
Flame sensor
Shipping calculated at checkout.
Looking to buy Flame sensor at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.

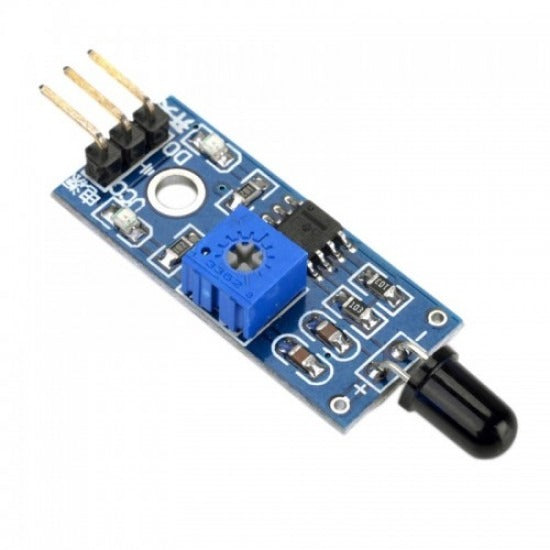

Detect fire and infrared light sources with precision using this reliable Flame Sensor module from Tech Depot India, Bengaluru. Ideal for fire alarm systems, safety automation, and robotics projects.
Specifications
| Type | IR Flame Detection Sensor Module |
| Detection Wavelength | 760 nm - 1100 nm (Infrared) |
| Detection Angle | Approximately 60 degrees |
| Operating Voltage | 3.3V - 5V DC |
| Output Type | Digital (DO) & Analog (AO) |
| Comparator Chip | LM393 |
| Sensitivity | Adjustable via onboard potentiometer |
| Indicator LEDs | Power LED & Detection Status LED |
| Detection Range | Up to 80 cm (lighter-sized flame) |
| Mounting Holes | Yes - M3 bolt compatible |
| Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi, STM32 |
| Origin | Original / Authentic |
Why Choose Flame sensor?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Flame sensor
- Dual Output Modes: Digital output for simple flame detection and analog output for measuring flame intensity, giving you maximum flexibility.
- Adjustable Sensitivity: Onboard potentiometer lets you fine-tune the detection threshold to eliminate false triggers in your specific environment.
- Wide Voltage Compatibility: Operates seamlessly at both 3.3V and 5V, making it plug-and-play with Arduino, ESP32, Raspberry Pi, and more.
- Compact & Mountable: Small form factor with M3 mounting holes for easy integration into enclosures, robots, and industrial panels.
How It Works
The flame sensor module uses an infrared (IR) photodiode to detect electromagnetic radiation in the 760-1100 nm wavelength range - the signature spectrum emitted by open flames. When a flame enters the sensor's detection cone, the IR photodiode generates a proportional voltage signal. The onboard LM393 comparator processes this signal against a user-adjustable threshold set via the potentiometer. If the detected intensity exceeds the threshold, the digital output pin goes LOW (active low), and the status LED illuminates. Simultaneously, the analog output pin provides a continuous voltage reading proportional to flame intensity, enabling more nuanced fire monitoring and data logging.
Pin Configuration
| Pin | Label | Description |
| 1 | VCC | Power supply input (3.3V - 5V DC) |
| 2 | GND | Ground connection |
| 3 | DO | Digital output - LOW when flame detected, HIGH otherwise |
| 4 | AO | Analog output - voltage proportional to flame intensity |
Wiring Guide
Arduino Uno Connection
| Sensor Pin | Arduino Pin |
| VCC | 5V |
| GND | GND |
| DO | D2 (or any digital pin) |
| AO | A0 (or any analog pin) |
ESP32 Connection
| Sensor Pin | ESP32 Pin |
| VCC | 3.3V |
| GND | GND |
| DO | GPIO4 (or any digital-capable pin) |
| AO | GPIO34 (or any ADC pin) |
Sample Code - Arduino
// Flame Sensor with Arduino - Digital & Analog Reading
// Tech Depot India, Bengaluru
const int flameDO = 2; // Digital output pin
Frequently Asked Questions
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your Flame sensor today and start building your next project.
