Feetech STS3215 (C001) 7.4V 19kg.cm Serial Bus Servo Motor – 1:345 Metal Gear, Dual Axis, TTL, 360° Magnetic Encoder

Buy Feetech STS3215 (C001) 7.4V 19kg.cm Serial Bus Servo Motor – 1:345 Metal Gear, Dual Axis, TTL, 360° Magnetic Encoder Online in India

Buy the Feetech STS3215 (C001) 7.4V 19kg.cm Serial Bus Servo Motor – 1:345 Metal Gear, Dual Axis, TTL, 360° Magnetic Encoder online at Tech Depot India — genuine, brand-sourced, with a GST invoice on every order. Delivered in 8-10 working days across India (Bengaluru, Delhi NCR, Hyderabad and pan-India), prepaid via secure Razorpay checkout, and covered by a 15-day warranty on manufacturing defects.

The Feetech STS3215 (C001) is a 7.4V smart bus servo made for multi-joint robots such as robotic arms, humanoids and quadrupeds. Inside its compact dual-shaft body sits a coreless motor, a 1:345 metal gearbox and a 12-bit magnetic encoder, delivering up to 19.5 kg.cm of stall torque along with true 360° absolute angle sensing. It is the go-to servo for popular open-source arm builds like the SO-ARM100 and SO-ARM101.

Instead of a standard PWM signal, the STS3215 is driven over a half-duplex TTL serial bus. Every servo carries its own ID, so a whole chain of servos can share one data line and still be commanded one by one from a single serial port, which keeps wiring on multi-axis builds clean and simple. Each unit also sends back real-time data on position, speed, load, supply voltage, current and temperature.

Highlights

• Strong output: 19.5 kg.cm stall torque at 7.4V, produced by a coreless motor driving a 1:345 metal reduction gearbox.
• Absolute 360° sensing: 12-bit magnetic encoder giving 4096 counts per revolution, roughly 0.088° per step.
• Bus-based control: addressable half-duplex TTL UART, so many servos can be daisy-chained on one line.
• Live status reporting: returns position, speed, load, voltage, current and temperature readings.
• Four operating modes: position (servo), closed-loop speed, open-loop speed and step mode.

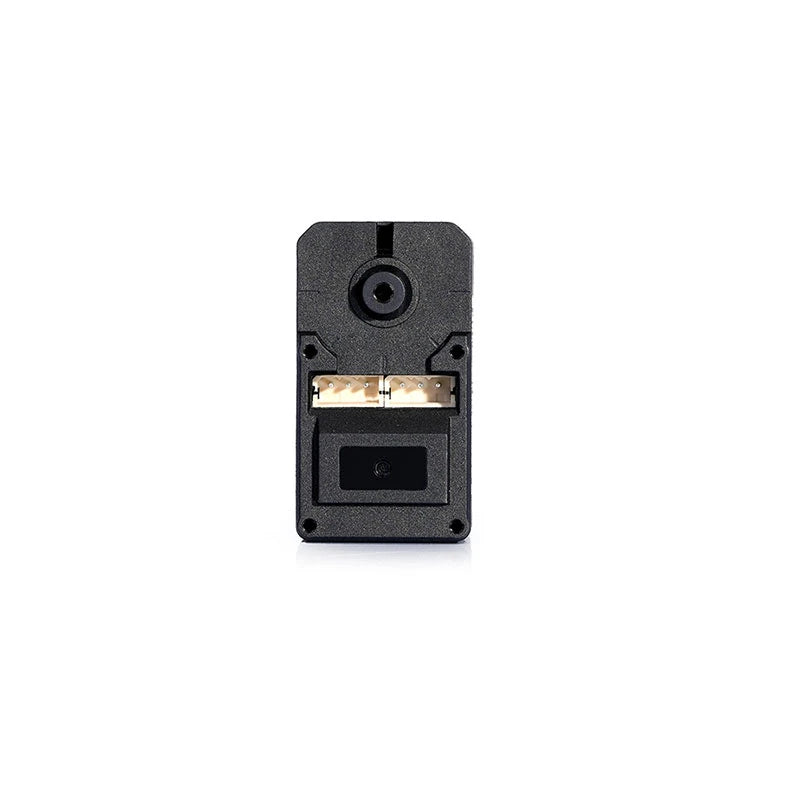

• Dual-shaft body: a main output shaft plus an auxiliary rear shaft for rigid, well-supported joints.
• Built to last: ball bearings, metal gearing and on-board over-voltage and over-temperature protection.
• Non-volatile settings: ID, angle limits and other parameters stay stored after power is removed.

Specifications

Connection Guide

Transmit and receive share a single half-duplex data wire, so this servo cannot be run from an ordinary PWM servo output. Connect it through a half-duplex serial adapter or bus servo driver board (such as the Feetech FE-URT-1 USB adapter or a compatible driver), and control it from a PC, Arduino, ESP32, STM32 or Raspberry Pi. Use a power supply sized for the combined stall current of all servos on the bus.

Where It's Used

• Robot arms, including SO-ARM100 / SO-ARM101 builds
• Humanoid, hexapod and four-legged robots
• Pan-tilt mounts, camera gimbals and grippers
• Education, research and automation projects

In the Box

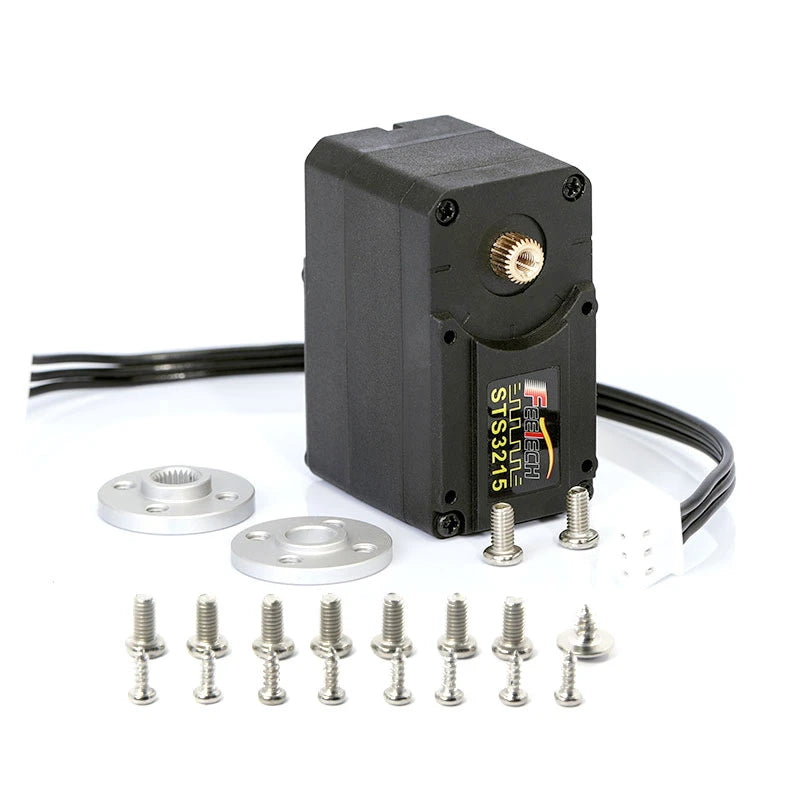

• 1 x Feetech STS3215 (C001) 7.4V 19kg Serial Bus Servo

100% authentic.
