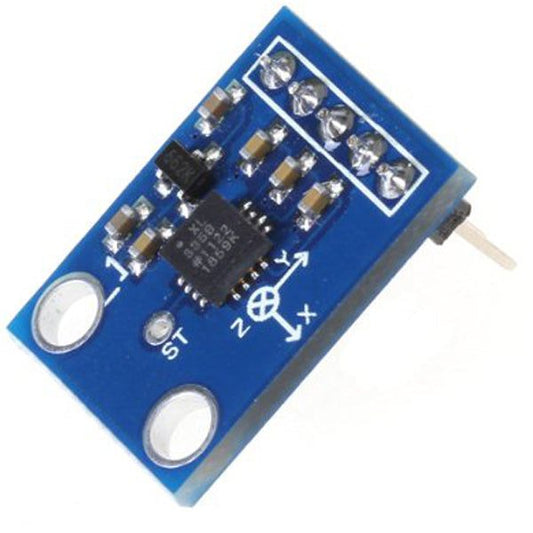

Measure acceleration along X, Y, and Z axes with the ADXL335 analog accelerometer module from The Tech Depot, Bengaluru. This compact, low-power sensor detects static acceleration (gravity/tilt) and dynamic acceleration (motion/vibration) with a full sensing range of +/-3g - ideal for robotics, gesture recognition, and motion-based projects. Fast shipping, 7-day warranty on manufacturing defects, and dedicated support.
Specifications
| Sensor IC | Analog Devices ADXL335 |
| Measurement Axes | 3 (X, Y, Z) |
| Measurement Range | +/-3g (full scale) |
| Output Type | Analog voltage (ratiometric) |
| Sensitivity | ~300 mV/g (typical at 3.3 V supply) |
| Operating Voltage | 1.8 V - 3.6 V (on-board 3.3 V regulator accepts 5 V input) |
| Current Consumption | ~350 uA |
| Bandwidth | 0.5 Hz - 1,600 Hz (X/Y), 0.5 Hz - 550 Hz (Z) |
| Interface | 3 analog output pins (connect to ADC / Arduino analog inputs) |
| Board Dimensions | ~20 mm x 20 mm |
| Operating Temperature | 40 degreesC to +85 degreesC |
| Mounting | Breakout board with header-pin-ready through-holes |
| Origin | Original / Authentic Analog Devices ADXL335 |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Why Choose the ADXL335?
- True 3-axis sensing: Simultaneously measures acceleration on X, Y, and Z for complete motion and tilt detection.
- Simple analog output: No complex communication protocol - just read three analog voltages with any microcontroller's ADC.
- Ultra-low power: Only 350 uA makes it perfect for battery-powered and wearable applications.
- Wide bandwidth: Up to 1,600 Hz on X/Y axes captures fast vibrations and impacts.
- Arduino & Raspberry Pi compatible: Plug directly into analog input pins; extensive community code and libraries available.
- Compact breakout board: On-board 3.3 V regulator and decoupling capacitors - ready to use out of the box.
- 100% authentic: Genuine Analog Devices ADXL335 sourced from trusted, authorized distributors.
- Fast delivery: 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse; same-day delivery within Bengaluru.
Pin Configuration
| VCC | Power input (3.3 V-5 V via on-board regulator) |
| GND | Ground |
| X-OUT | Analog voltage proportional to X-axis acceleration |
| Y-OUT | Analog voltage proportional to Y-axis acceleration |
| Z-OUT | Analog voltage proportional to Z-axis acceleration |
| ST (Self-Test) | Apply logic high to verify sensor functionality |
How It Works
The ADXL335 uses polysilicon surface-micromachined MEMS structures to detect acceleration. When force is applied along any axis, tiny internal capacitive plates shift, changing the capacitance. On-chip signal conditioning converts this capacitance change into a proportional analog voltage centered around half the supply voltage (1.65 V at 3.3 V). At 0 g the output sits at the midpoint; tilting or accelerating in the positive direction increases the voltage, while the negative direction decreases it. Simply read each axis with an ADC, map the voltage to g-force using the 300 mV/g sensitivity, and you have real-time acceleration data.
Project Ideas
- Tilt & Inclination Sensing: Detect the orientation of a platform, phone dock, or robotic arm joint by measuring the gravity vector across all three axes.
- Gesture-Controlled Robot: Mount the ADXL335 on a glove; tilt your hand to steer a robot car or drone in real time.
- Vibration Monitoring System: Attach to motors, bridges, or machinery to log vibration signatures and predict maintenance needs.
- Step Counter / Pedometer: Analyze periodic acceleration patterns while walking or running to count steps accurately.
- Self-Balancing Robot: Feed tilt data into a PID control
