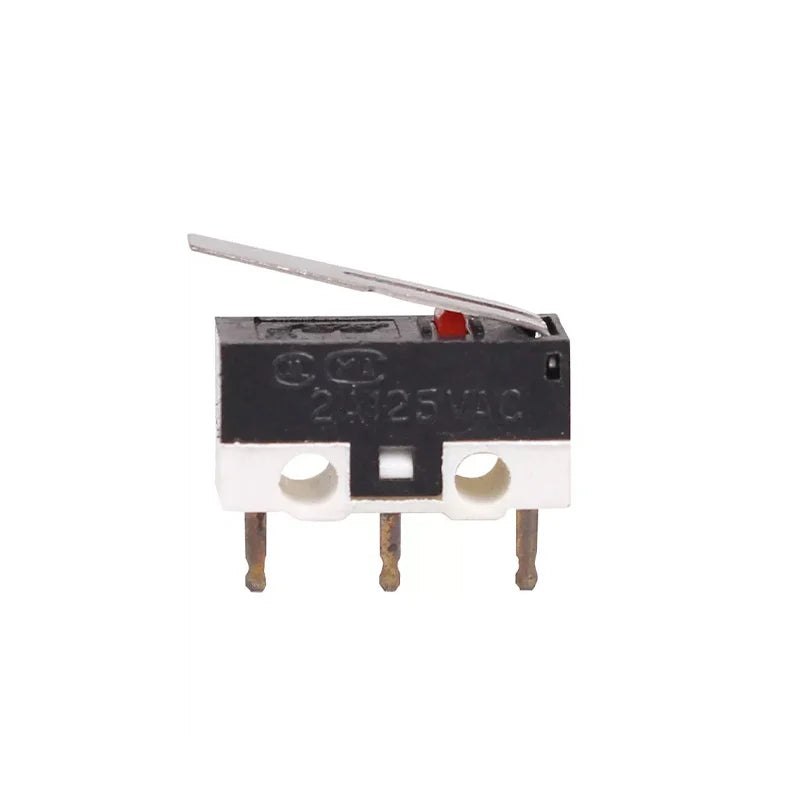

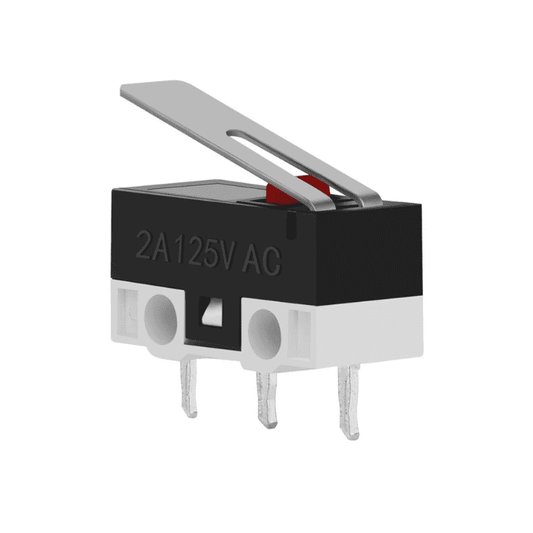

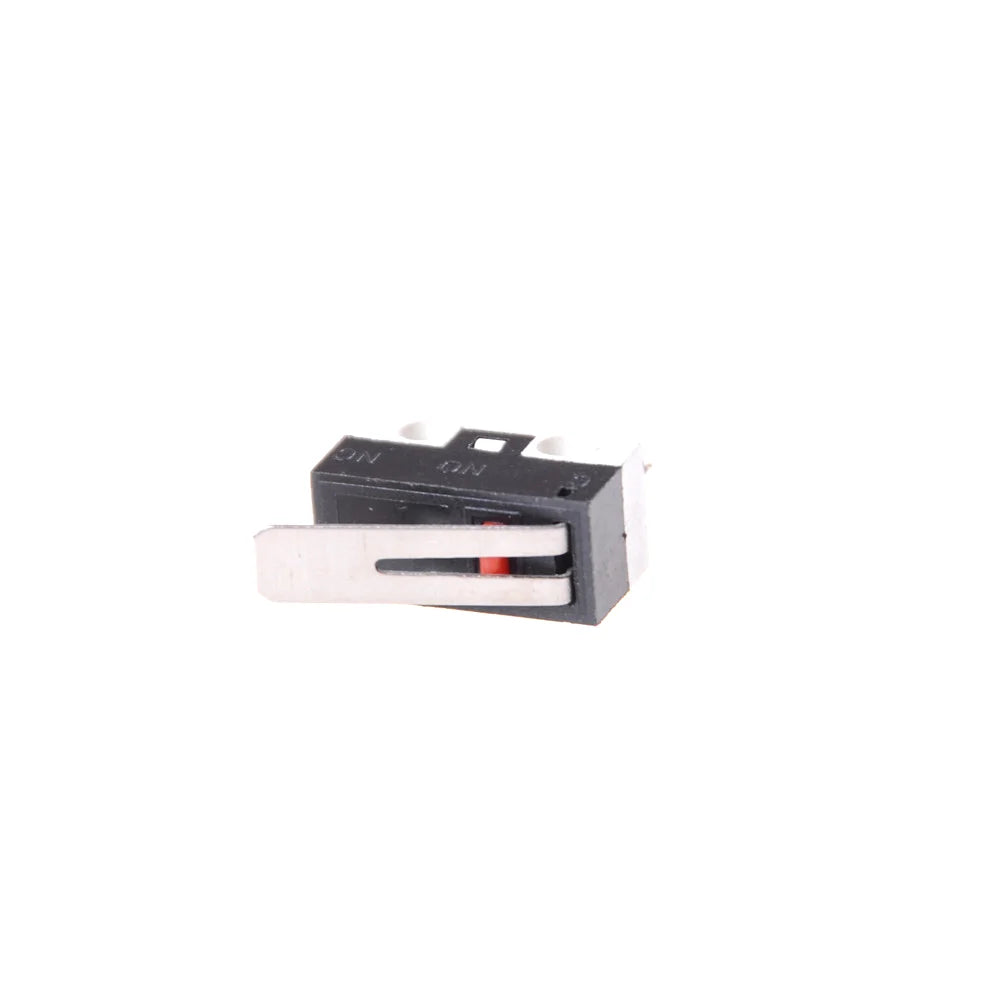

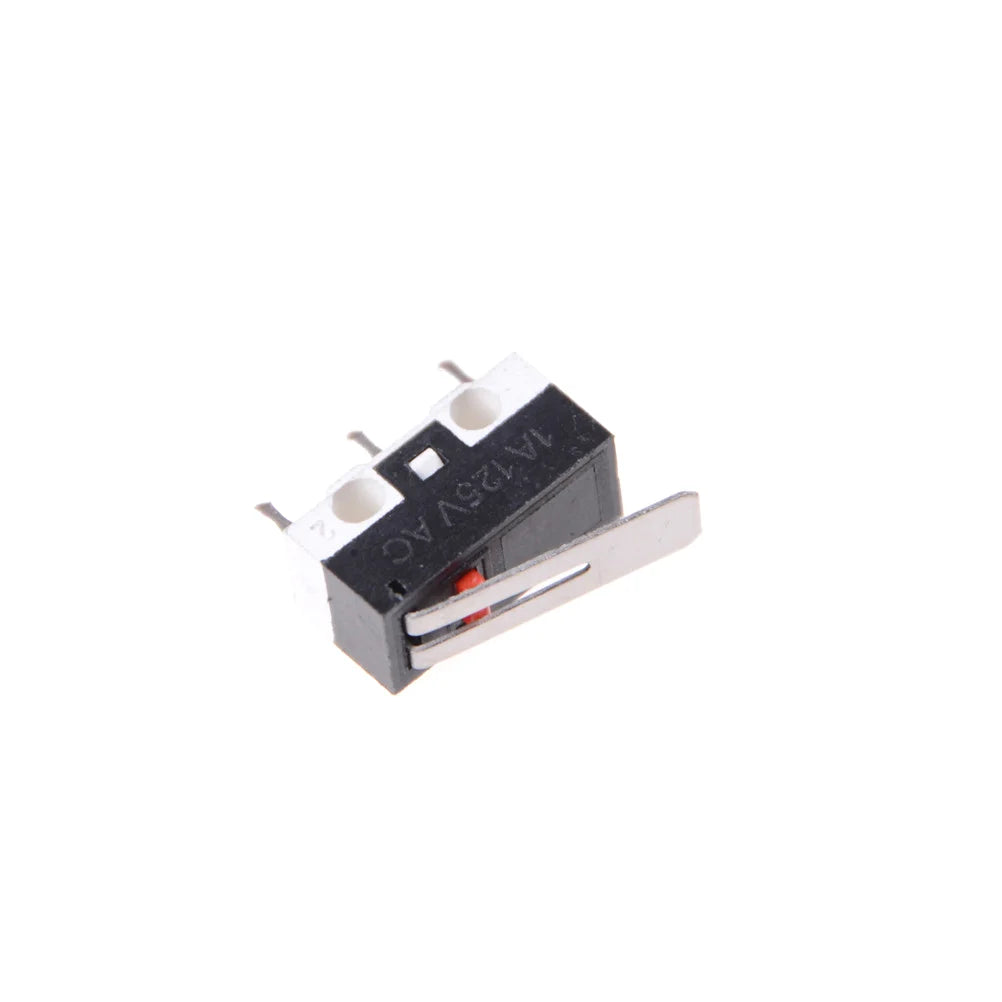

2A 125V AC Microswitch KW10-Z1P Limit Switch
2A 125V AC Microswitch KW10-Z1P Limit Switch
Shipping calculated at checkout.
Looking to buy 2A 125V AC Microswitch KW10-Z1P Limit Switch at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
A compact, high-precision snap-action microswitch rated at 2A 125V AC, ideal for detecting mechanical position, end-of-travel limits, and presence sensing in 3D printers, CNC machines, robotics, and home automation projects.
Specifications
| Model | KW10-Z1P |
| Switch Type | Snap-Action Microswitch / Limit Switch |
| Contact Configuration | SPDT (NO + NC + COM) |
| Current Rating | 2A |
| Voltage Rating | 125V AC |
| Actuator Type | Pin Plunger (Straight Lever) |
| Action | Momentary Snap-Action |
| Mechanical Life | ~1,000,000 cycles |
| Operating Force | ~0.5N (light actuation) |
| Terminals | 3-Pin Solder / PCB Mount |
| Mounting | PCB through-hole or bracket mount |
| Dimensions (approx.) | 12.8 x 5.8 x 6.5 mm (ultra-compact) |
| Operating Temperature | -25 degreesC to +85 degreesC |
| Insulation Resistance | >=100 MOhm |
| Contact Material | Silver Alloy |
| Origin | Original / Authentic |
Why Choose 2A 125V AC Microswitch KW10-Z1P Limit Switch?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of 2A 125V AC Microswitch KW10-Z1P Limit Switch
- Ultra-Compact Form Factor: One of the smallest microswitches available, fitting easily into tight enclosures and cramped PCB layouts.
- SPDT Three-Terminal Design: Provides both Normally Open (NO) and Normally Closed (NC) contacts for maximum wiring flexibility.
- Crisp Snap-Action Mechanism: Delivers a positive, tactile click with reliable switching at a consistent actuation point - no bouncing or ambiguous states.
- 2A @ 125V AC Rating: Capable of directly switching small loads such as indicator lamps, solenoids, relays, and low-power motors without an intermediary driver.
- Long Mechanical Life: Rated for approximately 1 million operations, ensuring years of dependable service even in repetitive-cycle applications.
- Low Operating Force: Light ~0.5N actuation force allows detection of subtle mechanical movements without adding significant resistance to moving parts.
- Silver Alloy Contacts: Provides low contact resistance and excellent conductivity for clean, reliable switching over the full product lifespan.
- Wide Temperature Range: Operates reliably from -25 degreesC to +85 degreesC, suitable for both indoor electronics and outdoor/industrial environments.
- Versatile Mounting: PCB through-hole pins allow direct soldering to circuit boards; also compatible with standard microswitch mounting brackets for mechanical installations.
Pin Configuration
| Pin | Label | Function |
| 1 | COM (Common) | Common terminal - connect to your signal or power line |
| 2 | NO (Normally Open) | Open when not pressed; closes when actuator is depressed |
| 3 | NC (Normally Closed) | Closed when not pressed; opens when actuator is depressed |
How It Works
The KW10-Z1P is a mechanically actuated snap-action switch. When an external force (a moving carriage, door, lever, or object) presses the small pin plunger, an internal spring mechanism snaps the contact from its resting position to the actuated position almost instantaneously. This rapid transition minimizes electrical arcing and contact wear. When the force is removed, the spring returns the contact to its default state with an equally fast snap-back action.
In the default (unactuated) state, COM is connected to NC and disconnected from NO. When actuated (pressed), COM switches to NO and disconnects from NC. This SPDT behavior lets you wire the switch for either "make on press" or "break on press" logic depending on your application needs.
