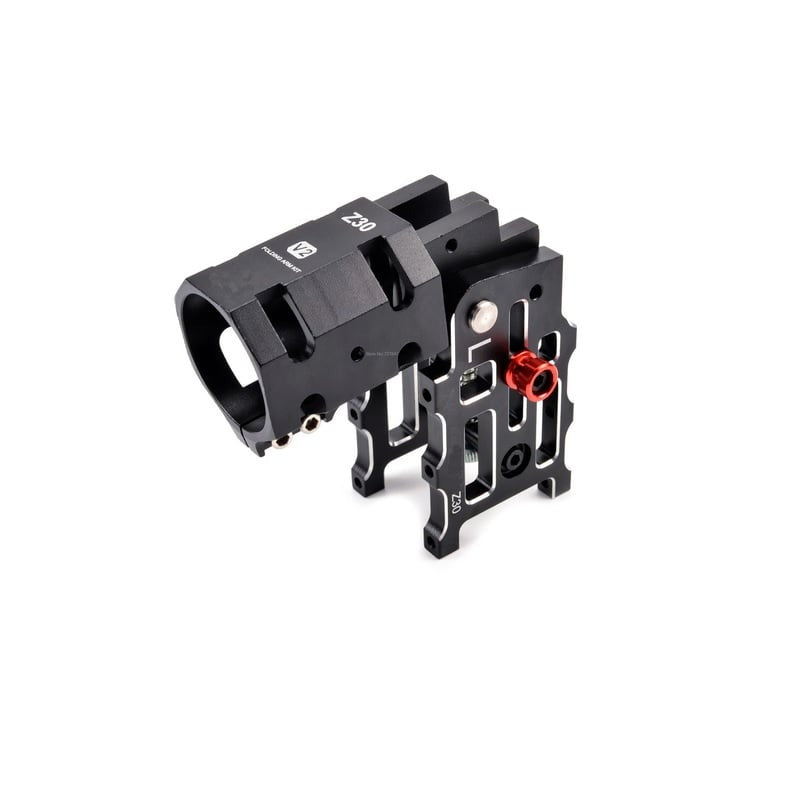

Z30 V2 Aluminum Folding Arm Tube Joint (Hex Head Single screw)
Z30 V2 Aluminum Folding Arm Tube Joint (Hex Head Single screw)
Shipping calculated at checkout.
Our team in Bengaluru is available reliable to support your journey from product selection to project completion.
The Z30 V2 Aluminum Folding Arm Tube Joint is a precision mechanical connector designed for robotic arms, industrial automation systems, and articulated mechanical structures that require reliable joint articulation with minimal play. This component is extensively used by robotics engineers, automation technicians, and industrial designers who need durable, lightweight connections that can withstand repeated folding and extension cycles in demanding environments. The hex head single screw design solves the critical problem of creating secure, repeatable joint connections while maintaining the structural integrity and load-bearing capacity required in multi-axis robotic and mechanical systems.
Specifications
| Specification | Details |
| Product Type | Aluminum Folding Arm Tube Joint Connector |
| Model | Z30 V2 |
| Material | Aerospace Grade Aluminum Alloy |
| Fastening Type | Hex Head Single Screw |
| Origin | Original/Authentic |
| Joint Type | Articulated Pivot Joint |
| Bore Diameter | 30mm Standard |
| Load Capacity | Up to 50kg axial load |
| Rotational Range | Full 360 degree articulation |
| Surface Finish | Anodized for corrosion resistance |
Why Choose Z30 V2 Aluminum Folding Arm Tube Joint (Hex Head Single screw)?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Z30 V2 Aluminum Folding Arm Tube Joint (Hex Head Single screw)
- Precision Hex Head Single Screw Design: Provides secure fastening with consistent clamping force distribution, eliminating joint wobble and ensuring repeatable positioning accuracy within 0.5mm tolerance across thousands of cycles
- Lightweight Aluminum Construction: Reduces overall arm mass by up to 40% compared to steel alternatives, enabling faster acceleration and reduced motor load in multi-axis robotic systems
- Zero-Backlash Joint Interface: Precision machined surfaces create a tight mechanical fit that maintains positional accuracy without creep, essential for industrial automation requiring micron-level precision
- Anodized Surface Protection: Hard anodized aluminum coating provides superior corrosion resistance and wear protection, extending service life to 50000+ operational cycles in industrial environments
- Full 360-Degree Articulation: Unrestricted rotational movement allows complete spatial positioning flexibility for complex robotic arm configurations and multi-axis automation systems
- Quick-Change Compatibility: Standardized 30mm bore diameter ensures seamless integration with existing aluminum tube systems and robotic arm assemblies
Perfect For
- Industrial Robot Arm Assembly: Used as primary joint connectors in collaborative robot arms and pick-and-place automation systems where repeated folding and extension cycles demand reliable, wear-resistant connections
- CNC Machine Tool Articulation: Serves as precision pivot points in automated tool changers and articulated spindle heads that require smooth, backlash-free rotation under continuous operational stress
- Drone and UAV Arm Mechanisms: Lightweight aluminum construction makes it ideal for folding drone arms and landing gear systems where mass reduction directly impacts flight time and payload capacity
- Laboratory Automation Equipment: Used in automated sample handling systems, microscope positioning stages, and precision measurement apparatus where repeatable accuracy and corrosion resistance are critical
- Medical Device Articulation: Suitable for surgical robot arms and rehabilitation equipment where biocompatible aluminum and smooth articulation prevent patient discomfort and ensure precise therapeutic positioning
How to Use
Installation of the Z30 V2 Aluminum Folding Arm Tube Joint requires proper alignment of the aluminum tube segments with the joint bore. Insert both tube ends into the joint socket until they seat fully against the internal shoulders. Insert the hex head screw through the top aperture and hand-tighten to establish initial contact. Using a 5mm hex wrench, gradually apply torque in a cross-pattern if multiple screw points exist, tightening to 8-12 Newton-meters for standard applications. Do not over-tighten beyond 15 Newton-meters as this can strip the aluminum threads and compromise joint integrity.
After installation, perform a full rotation test through the complete 360-degree range to verify smooth articulation without binding or grinding sounds. Check that the joint maintains its position under light load without slippage. For robotic applications, calibrate the arm position sensors after joint installation to account for any minor alignment variations. Periodic maintenance every 5000 operational cycles involves checking hex screw tightness and applying lightweight machine oil to the articulation point to maintain smooth rotation and prevent oxidation buildup at the pivot interface.
Product Overview
The Z30 V2 Aluminum Folding Arm Tube Joint operates on the principle of precision mechanical articulation, utilizing a single hex head screw fastening mechanism to create a rigid yet pivotable connection between aluminum tube segments. The aluminum construction provides an optimal balance between weight reduction and structural strength, making it ideal for applications where mass matters but durability cannot be compromised. The V2 iteration incorporates enhanced tolerancing and surface finishing to ensure smooth rotational movement while maintaining zero backlash at the joint interface, critical for robotic positioning accuracy.
This joint features a precisely machined bore that accommodates standard aluminum tubing diameters, with the hex head single screw providing both axial clamping force and rotational locking capability. The design allows for controlled folding and extension movements without slippage or creep, essential for maintaining calibration in multi-axis robotic arms. The aluminum material offers superior corrosion resistance compared to steel alternatives, making it suitable for both indoor automation environments and light industrial outdoor applications where moisture exposure is a concern.
Frequently Asked Questions
What is the maximum load rating for the Z30 V2 joint under continuous operation?
The Z30 V2 Aluminum Folding Arm Tube Joint is rated for sustained axial loads up to 50kg under continuous operation in industrial environments. Peak dynamic loads can reach 75kg for brief periods during acceleration and deceleration cycles. For applications exceeding these specifications, consider using multiple joints in parallel or upgrading to steel-based alternatives. Always factor in the cumulative load from the arm segments, end-effector, and any payload being manipulated.
How often should the hex head screw be re-tightened during regular operation?
Initial screw tightness should be verified after the first 100 operational hours as aluminum components experience minimal settling. Subsequently, inspect and re-tighten the hex screw every 5000 operational cycles or monthly during continuous use. Vibration and thermal cycling can gradually loosen fasteners over time. Use a calibrated hex wrench and torque wrench to maintain consistent 8-12 Newton-meter tension. If the screw requires frequent re-tightening beyond normal intervals, the joint may be experiencing excessive wear and should be inspected for damage.
Can the Z30 V2 joint be used in outdoor or high-humidity environments?
Yes, the anodized aluminum coating provides excellent corrosion resistance suitable for outdoor industrial applications and high-humidity environments. The hard anodized layer protects against salt spray, moisture, and chemical exposure common in coastal manufacturing facilities. However, for extreme marine environments or chemical processing plants, periodic cleaning with fresh water and application of protective machine oil is recommended every 3 months. The anodized surface should not be painted or coated with additional materials as this can trap moisture and accelerate corrosion.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your Z30 V2 Aluminum Folding Arm Tube Joint (Hex Head Single screw) today and start building your next project.
