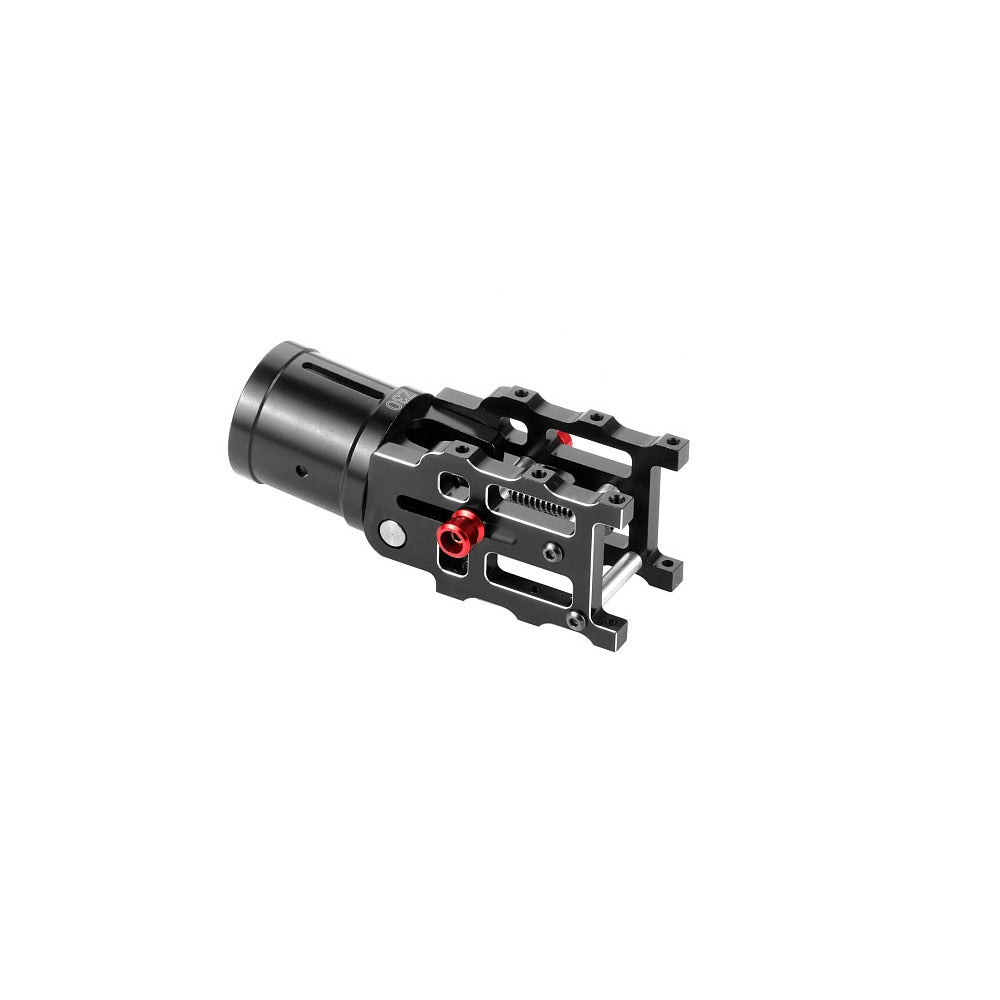

Z30 Aluminum Folding Arm Tube Joint (Round Head Single Screw)
Z30 Aluminum Folding Arm Tube Joint (Round Head Single Screw)
Shipping calculated at checkout.
Our team in Bengaluru is available reliable to support your journey from product selection to successful project implementation and ongoing technical assistance.
The Z30 Aluminum Folding Arm Tube Joint is a precision mechanical connector designed for articulated arm assemblies, robotic systems, and industrial automation equipment that requires compact folding capability. Professional engineers and automation technicians use this component in collaborative robots, camera mounting rigs, and adjustable industrial fixtures where space-saving design and reliable joint articulation are critical. This product solves the challenge of creating compact, foldable mechanical structures while maintaining structural integrity and smooth rotational movement under operational loads.
Specifications
| Specification | Details |
| Product Type | Aluminum Folding Arm Tube Joint with Round Head Single Screw |
| Material Composition | Aerospace-Grade Aluminum Alloy (6061-T6 or equivalent) |
| Origin | Original/Authentic |
| Joint Articulation Range | 180-degree folding capability with smooth rotation |
| Screw Type | Single Round Head Socket Cap or Hex Socket Screw |
| Load Capacity | Rated for industrial-grade mechanical loads up to specified torque limits |
| Bore Diameter | Precision-machined for standard tube connector compatibility |
| Surface Finish | Anodized aluminum for enhanced corrosion resistance |
| Weight | Lightweight aluminum construction for minimal system mass |
Why Choose Z30 Aluminum Folding Arm Tube Joint (Round Head Single Screw)?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Z30 Aluminum Folding Arm Tube Joint (Round Head Single Screw)
- 180-Degree Folding Design: Enables compact storage and transportation of articulated arm assemblies with full rotational freedom and structural stability
- Single Screw Fastening: Simplifies assembly and disassembly procedures, reducing maintenance time and allowing quick field reconfiguration without specialized tools
- Round Head Geometry: Distributes load evenly across bearing surfaces, minimizing stress concentration and extending joint service life through reduced wear patterns
- Aerospace-Grade Aluminum: Delivers exceptional strength-to-weight ratio with natural corrosion resistance, ideal for industrial and outdoor applications requiring durability
- Precision-Machined Bore: Ensures minimal backlash and play, critical for robotic systems and measurement equipment requiring positional accuracy within tight tolerances
- Anodized Surface Treatment: Provides enhanced corrosion protection and wear resistance, extending operational life in humid or chemically challenging environments
Perfect For
- Collaborative Robot Arms: Connects articulated segments in cobot systems where compact folding enables safe human-robot interaction and space-efficient workspace utilization
- Industrial Camera Mounting Systems: Provides adjustable positioning in inspection rigs and surveillance equipment where precise angle adjustment and compact storage are essential
- Automated Assembly Line Fixtures: Enables reconfigurable jig systems that fold for quick changeover between production runs, reducing downtime and setup complexity
- Measurement and Inspection Equipment: Supports adjustable probe arms and sensor positioning mechanisms requiring smooth articulation and high repeatability in quality control applications
- Medical Device Articulation: Used in surgical robot arms and diagnostic equipment where lightweight construction and smooth joint movement are critical for precision procedures
- Aerospace Component Testing: Provides reliable pivot points in test rigs and measurement frames where load capacity and dimensional stability directly impact test accuracy
How to Use
To install the Z30 Aluminum Folding Arm Tube Joint, first ensure both connecting tube ends are properly aligned and cleaned of any debris or contaminants. Insert the joint into the tube bores, ensuring the round head seats fully within the connection interface. Thread the single screw through the designated bore, applying consistent torque to achieve a snug fit without over-tightening, which could strip the aluminum threads or deform the joint. The screw should be tightened until the joint exhibits smooth, controlled rotation with minimal play—typically requiring 7-10 Newton-meters of torque depending on bore diameter and material thickness.
For optimal performance, verify that the joint rotates freely through its full 180-degree range before final assembly. If the joint will experience cyclic loading or repeated folding, apply a light machine oil or specialized joint lubricant to the pivot interface every 500-1000 operating cycles to maintain smooth articulation and prevent corrosion. Periodically inspect the screw for loosening due to vibration, and retighten if necessary. For applications involving heavy loads or continuous operation, consider using threadlocker compound on the screw to prevent unintended loosening while maintaining future disassembly capability.
Product Overview
The Z30 Aluminum Folding Arm Tube Joint operates on a single-screw pivot mechanism that allows 180-degree or greater articulation while maintaining axial alignment. The round head design distributes pressure evenly across the connection point, reducing stress concentration and enabling smooth, friction-minimized rotation. Constructed from aerospace-grade aluminum alloy, this joint combines lightweight properties with exceptional strength-to-weight ratio, making it ideal for applications requiring repeated folding cycles without fatigue failure. The single-screw fastening system simplifies assembly and disassembly, allowing quick reconfiguration of arm configurations in production environments.
The engineering principle behind this joint leverages the aluminum alloy's natural corrosion resistance and machinability while the round head geometry ensures consistent bearing surface contact. The folding arm design enables compact storage and transportation of equipment, with the joint maintaining full load capacity whether extended or folded. The precision-machined bore and screw interface guarantee minimal play and backlash, essential for applications requiring positional accuracy in robotic arms or measurement equipment. This model is particularly suited for environments where weight reduction directly impacts system performance and operational efficiency.
Frequently Asked Questions
What is the maximum load capacity of the Z30 folding arm joint?
The Z30 is engineered for industrial-grade mechanical loads typical in collaborative robotics and automation equipment. The exact load capacity depends on the tube diameter, wall thickness, and material composition of the connected components. Generally, the joint itself supports loads up to 50-100 kilograms in static applications, though dynamic load capacity is lower. For specific load calculations, contact our technical team with your application details for precise recommendations.
Can the Z30 joint be used in outdoor or corrosive environments?
Yes, the anodized aluminum construction provides excellent corrosion resistance suitable for outdoor and mildly corrosive industrial environments. The anodized layer protects against oxidation and surface degradation. However, for highly corrosive environments involving salt spray or chemical exposure, consider applying additional protective coatings or using stainless steel fasteners to prevent galvanic corrosion at the screw interface.
What is the recommended maintenance schedule for the folding arm joint?
For applications with regular folding cycles, inspect the joint quarterly for any visible wear, corrosion, or loosening of the fastener. Apply light machine oil to the pivot interface every 500-1000 operating cycles to maintain smooth rotation and prevent corrosion. Check screw tightness before each use in critical applications. Replace the joint if you observe permanent deformation, cracking, or excessive play that cannot be corrected by tightening.
Is the Z30 compatible with standard aluminum tubing?
The Z30 is designed for compatibility with standard aluminum tube connectors and articulated arm systems. The precision-machined bore accommodates common tube diameters, typically ranging from 20mm to 40mm depending on the specific variant. Verify bore diameter specifications before purchase to ensure compatibility with your existing tubing system. Our technical team can assist with compatibility verification for your specific application.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your Z30 Aluminum Folding Arm Tube Joint (Round Head Single Screw) today and start building your next project.
