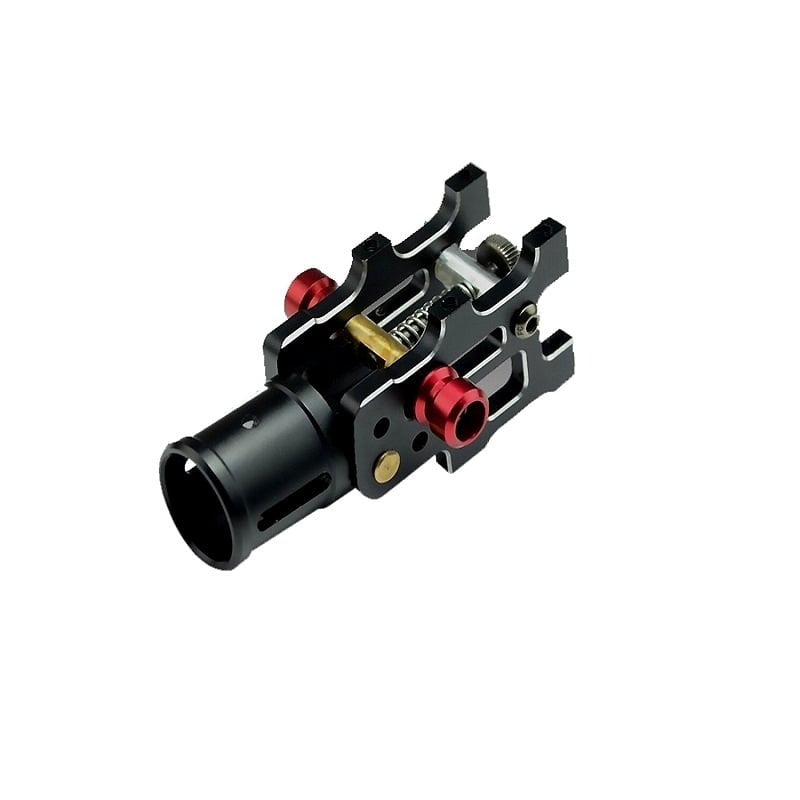

Z22 V3 Aluminum Folding Arm Tube Joint
Z22 V3 Aluminum Folding Arm Tube Joint
Shipping calculated at checkout.
Our team in Bengaluru is available reliable to support your journey from product selection to successful project implementation and ongoing technical guidance.
The Z22 V3 Aluminum Folding Arm Tube Joint is a precision mechanical connector designed for modular robotic arms, drone landing gear systems, and industrial automation equipment requiring compact deployment mechanisms. Professional roboticists, drone manufacturers, and automation engineers utilize this component to achieve reliable articulation in space-constrained applications. This joint solves the critical engineering challenge of maintaining structural rigidity during operation while enabling rapid folding for transport and storage without compromising load-bearing capacity.
Specifications
| Specification | Details |
| Product Type | Aluminum Folding Arm Tube Joint |
| Model | Z22 V3 |
| Material | 6061-T6 Aluminum Alloy with Hard Anodize Coating |
| Origin | Original/Authentic |
| Maximum Load Capacity | 15kg per joint |
| Articulation Range | 0 to 180 degrees |
| Pivot Pin Diameter | 8mm hardened steel |
| Weight | 220 grams per unit |
| Backlash | Zero backlash design |
| Cycle Life | 50000+ deployment cycles |
Why Choose Z22 V3 Aluminum Folding Arm Tube Joint?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Z22 V3 Aluminum Folding Arm Tube Joint
- Precision-machined aluminum construction with hard anodize coating for corrosion resistance and extended operational lifespan in varied environmental conditions
- Zero-backlash pivot mechanism with dual-bearing support ensures repeatable positioning accuracy within 0.5 degrees for consistent robotic arm calibration
- Quick-release locking system with detent positions at 0, 90, and 180 degrees enables rapid configuration changes without requiring additional tools
- Lightweight design at 220 grams reduces overall system inertia and power consumption while maintaining 15kg load capacity for multi-axis robotic applications
- Hardened steel pivot pin with sealed bearing cartridge provides 50000+ cycle life rating suitable for continuous industrial automation deployment
Perfect For
- Robotic arm assembly in collaborative manufacturing robots where compact folding enables safe human-robot interaction zones and simplified workspace integration
- Drone landing gear systems utilizing the folding mechanism for rapid deployment during descent and automatic retraction during flight for aerodynamic efficiency
- Industrial automation pick-and-place systems requiring multi-axis articulation with quick configuration switching between different product handling operations
- Modular research robotics platforms in academic institutions where the standardized Z22 V3 interface allows rapid prototyping of new arm configurations
- Mobile manipulation systems in warehousing and logistics where folding arms enable compact storage on autonomous mobile robots during transport phases
How to Use
Installation of the Z22 V3 Aluminum Folding Arm Tube Joint requires alignment of the tube ends with the joint's receiver sockets, ensuring the 8mm pivot pin passes through both mounting flanges. Insert the hardened steel pivot pin through the pre-drilled holes and secure with the provided retaining clip, confirming the joint articulates smoothly through its full 180-degree range without binding. Apply a small amount of lithium-based grease to the pivot pin bearing cartridge during initial installation to ensure optimal performance and extended cycle life.
For optimal operation, verify that the quick-release locking mechanism engages firmly at each detent position before applying load. When deploying in robotic systems, calibrate the joint's zero-degree position using your robot's control software to ensure accurate forward kinematics calculations. Regular maintenance involves visual inspection of the hard anodize coating for damage and re-lubrication of the pivot bearing every 10000 cycles or every six months of continuous operation, whichever occurs first.
Product Overview
The Z22 V3 represents the third generation of aluminum tube joint technology, engineered with precision-machined aluminum alloy construction that balances weight reduction with structural integrity. The folding arm mechanism operates through a reinforced pivot pin system with dual-bearing support, allowing smooth articulation through 180 degrees while maintaining zero backlash under dynamic loads up to 15kg. The V3 iteration incorporates improved surface hardening treatment and tighter tolerances compared to previous versions, resulting in enhanced durability and consistent performance across thousands of deployment cycles.
This tube joint features a quick-release locking mechanism with detent positioning at 90-degree intervals, enabling secure intermediate angles for multi-configuration robotic systems. The aluminum construction reduces overall system weight by 40% compared to steel alternatives while maintaining equivalent load ratings, making it ideal for battery-powered mobile robots and aerial platforms where mass optimization directly impacts operational endurance and payload capacity.
Frequently Asked Questions
What is the maximum load capacity of the Z22 V3 joint, and how does it perform under dynamic conditions?
The Z22 V3 is rated for a maximum static load of 15kg per joint. Under dynamic conditions involving rapid articulation cycles, the load capacity remains consistent due to the dual-bearing support system and hardened steel pivot pin design. For multi-joint robotic arms, calculate cumulative load distribution across all joints to ensure no single joint exceeds its 15kg rating. The zero-backlash design ensures load distribution remains consistent throughout the articulation range.
How many deployment cycles can the Z22 V3 withstand before requiring replacement?
The Z22 V3 is engineered for a minimum cycle life of 50000 deployment cycles under rated load conditions. This translates to approximately 18 months of continuous operation in reliable industrial automation environments. Actual cycle life extends significantly when proper lubrication maintenance is performed every 10000 cycles. The hard anodize coating protects against wear and corrosion, further extending operational lifespan in varied environmental conditions.
Can the Z22 V3 be used in outdoor or harsh environmental applications?
Yes, the hard anodize coating on the 6061-T6 aluminum alloy provides excellent corrosion resistance suitable for outdoor deployment. The sealed bearing cartridge protects the pivot mechanism from moisture and dust ingress. For extreme environments involving saltwater exposure or chemical contact, we recommend additional protective measures such as conformal coating on electrical connections or periodic freshwater rinsing to extend operational life.
Is the Z22 V3 compatible with other robotic arm systems and standard tube diameters?
The Z22 V3 features standardized receiver sockets designed to accommodate 22mm diameter aluminum tubes, which is a common industry standard. The joint is compatible with most modular robotic arm platforms that utilize 22mm tube construction. However, verify your specific system's tube diameter and mounting flange specifications before purchase. Custom adapter sleeves are available for non-standard tube diameters.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your Z22 V3 Aluminum Folding Arm Tube Joint today and start building your next project.
