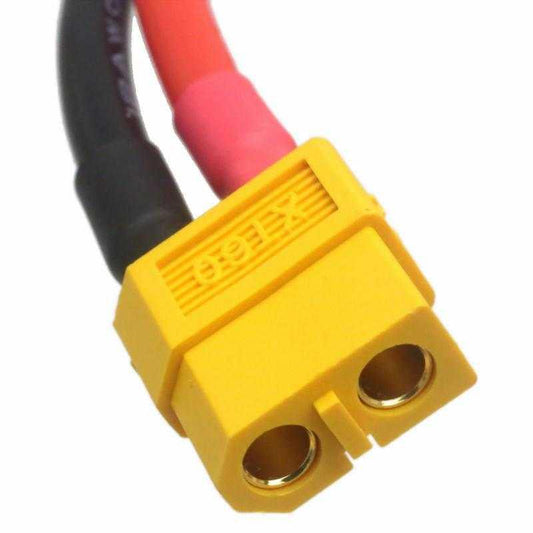

XT60 Female Connector with Silicone Wire

High-quality XT60 female connector pre-soldered with flexible silicone wire, designed for reliable high-current power connections in RC vehicles, drones, LiPo battery packs, and power distribution systems. Available at The Tech Depot, Bengaluru - fast shipping, expert support, and guaranteed authenticity.

Specifications

Product Description

The XT60 Female Connector with Silicone Wire is a ready-to-use power connector solution that eliminates the need for manual soldering of leads to the connector. The XT60 is the industry-standard connector for medium-to-high current applications, widely trusted in the RC hobby, drone, and power electronics communities for its secure locking mechanism, low contact resistance, and robust build quality.

The female connector features gold-plated copper contacts housed in a durable, heat-resistant nylon shell. Gold plating ensures minimal resistance at the contact point, reducing heat buildup and power loss even under sustained high-current loads. The XT60's bullet-style contact design provides a firm, positive connection that won't accidentally disconnect during operation - critical for applications involving vibration, movement, or high-performance demands.

The pre-attached silicone wire is a significant advantage over bare connectors. Silicone-insulated wire is far more flexible than standard PVC wire, making routing and installation easier in tight spaces such as drone frames and RC car chassis. Silicone insulation also withstands extreme temperatures ranging from -60 degreesC to +200 degreesC, ensuring the wire remains supple and crack-free in both cold outdoor environments and near heat-generating components like ESCs and motors. The 12 AWG wire gauge handles up to 60A continuous current comfortably, matching the connector's own rating for a balanced, bottleneck-free power path.

In the XT60 system, the female connector is typically used on the battery side, while the male connector is used on the device or load side. This convention ensures that exposed pins are never live when the battery is disconnected, adding a layer of safety. The anti-reverse design of the XT60 housing prevents incorrect polarity connections, protecting sensitive electronics from potentially catastrophic reverse-voltage damage.

Whether you are building a custom battery pack, replacing a worn connector on your quadcopter, wiring a power distribution board, or setting up a benchtop power supply, this pre-wired XT60 female connector saves time and delivers a professional, reliable result straight out of the package.

Key Features

• 60A Continuous Current Rating: Handles demanding high-current loads from LiPo batteries, brushless motors, and high-power ESCs without overheating.
• Gold-Plated Copper Contacts: Delivers ultra-low contact resistance below 1 mOhm, minimizing voltage drop and maximizing power transfer efficiency.
• Premium Silicone Wire: Ultra-flexible 12 AWG silicone-insulated wire withstands temperatures from -60 degreesC to +200 degreesC and resists cracking, melting, and abrasion.
• Factory Pre-Soldered: Professional solder joints ensure a secure, low-resistance connection between wire and connector - no soldering required on your end.
• Anti-Reverse Polarity Design: Keyed housing allows connection in only one orientation, preventing accidental reverse polarity that could damage electronics.
• Secure Locking Fit: Firm friction-fit connection resists vibration and accidental disconnection during operation.
• Heat-Resistant Nylon Housing: Durable shell withstands high temperatures generated during sustained current draw.
• Compact & Lightweight: Minimal size and weight make it ideal for weight-sensitive applications like racing drones and RC aircraft.
• Industry Standard Compatibility: Mates with any standard XT60 male connector - universally compatible across brands and devices.
• Color-Coded Wires: Red (positive) and black (negative) wires for quick, error-free identification during wiring.

Frequently Asked Questions

Buy XT60 Female Connector with Silicon Wire Online in India

Purchase the XT60 Female Connector with Silicon Wire online at The Tech Depot - India's most trusted electronics components store. We deliver across all major cities including Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on XT60 Female Connector with Silicon Wire with fast 1-5 day shipping from our Bengaluru warehouse. All products are 100% authentic, sourced from authorized distributors with 7-day warranty on manufacturing defects.

Looking to buy XT60 Female Connector with Silicon Wire at the best price in India? The Tech Depot offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
