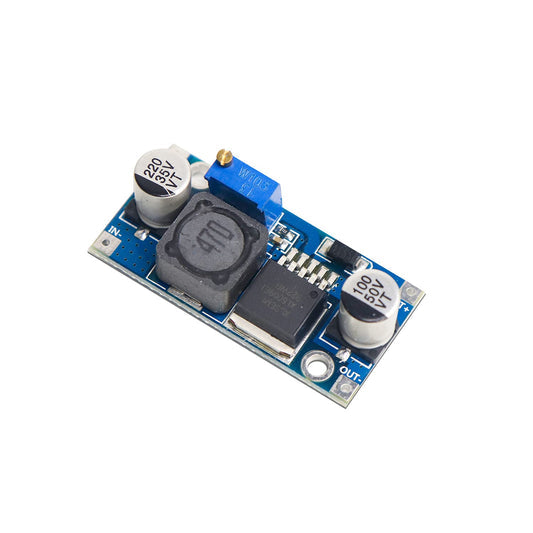

XL6009 Boost Module - Adjustable DC-DC Step-Up Voltage Converter
Step up your DC voltage efficiently with the XL6009 Boost Module from The Tech Depot, Bengaluru. Built around the high-performance XL6009 switching regulator IC, this adjustable boost converter takes a lower input voltage and delivers a higher, regulated output - ideal for battery-powered projects, solar systems, LED drivers, and portable electronics. With wide input/output ranges, high switching frequency, and up to 94% conversion efficiency, it's a must-have power management module for every engineer's toolkit. Fast shipping across India with 7-day warranty on manufacturing defects and dedicated technical support.
Specifications
| Module Type | DC-DC Step-Up (Boost) Converter |
| Core IC | XL6009E1 (XLSEMI) |
| Input Voltage Range | 3V - 32V DC |
| Output Voltage Range | 5V - 35V DC (Adjustable via Potentiometer) |
| Maximum Output Current | 4A (recommended <= 2.5A continuous with heatsinking) |
| Maximum Output Power | Approx. 35W (dependent on input/output differential and cooling) |
| Conversion Efficiency | Up to 94% (typical 90%+ under optimal conditions) |
| Switching Frequency | 400 kHz |
| Output Ripple | <= 50mV (at rated load) |
| Output Adjustment | Multi-turn precision potentiometer (onboard) |
| Regulation Type | PWM (Pulse Width Modulation) with automatic PFM at light loads |
| Inductor | 33uH shielded power inductor (onboard) |
| Rectifier Diode | SS54 Schottky diode (low forward voltage drop) |
| Output Capacitor | 220uF / 50V electrolytic capacitor |
| Input Protection | Reverse polarity protection (diode-based) |
| Thermal Protection | Built-in thermal shutdown on XL6009 IC |
| Operating Temperature | -40 degreesC to +85 degreesC |
| PCB Dimensions | Approx. 43mm x 21mm x 14mm (L x W x H) |
| Mounting | Through-hole pads (IN+, IN, OUT+, OUT) |
| Weight | Approx. 10g |
| Origin | Original XL6009E1 IC / Authentic Module |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp Technical Support 24/7 |
Key Features
- Wide Input Range (3V-32V): Accepts power from a single lithium cell (3.7V), USB (5V), 12V batteries, solar panels, or any DC source up to 32V - extremely versatile across applications.
- Adjustable Output (5V-35V): Onboard multi-turn precision potentiometer lets you dial in your exact desired output voltage with fine control and stable regulation.
- High Efficiency (Up to 94%): The XL6009 IC's 400 kHz switching frequency and optimized inductor/diode combination minimize power loss, keeping heat generation low and battery life high.
- 4A Peak Current Capability: Handles demanding loads with a 4A maximum switch current - suitable for powering LEDs, motors, microcontroller boards, and communication modules simultaneously.
- Low Output Ripple (<=50mV): Quality output filtering ensures clean, stable voltage suitable for sensitive electronics, sensors, and analog circuits.
- Compact & Lightweight Design: At just 43mm x 21mm, it fits easily into enclosures, breadboard projects, and space-constrained PCB layouts without adding bulk.
- SS54 Schottky Rectifier: Low forward voltage drop Schottky diode maximizes efficiency and reduces heat compared to standard rectifier diodes.
- Built-in Protections: Thermal shutdown on the IC prevents damage from overheating, and the input diode provides basic reverse polarity protection for accidental wiring mistakes.
- Solderless Connection Ready: Clearly labeled IN+/IN/OUT+/OUT pads accept standard hookup wire, making it beginner-friendly for quick prototyping.
- No Minimum Load Required: Maintains regulation even at very light loads thanks to automatic PFM mode switching, unlike some boost converters that need a minimum draw.
