WS2812 64 Bit RGB LED Matrix
WS2812 64 Bit RGB LED Matrix
WS2812 64 Bit RGB LED Matrix

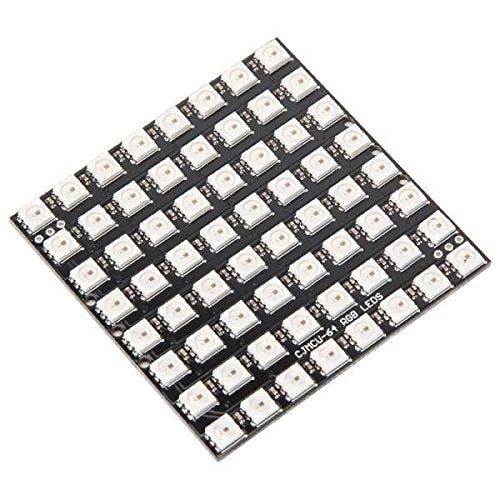

Create stunning visual displays with the WS2812 64 Bit RGB LED Matrix - an 8x8 grid of individually addressable, full-color RGB LEDs powered by the popular WS2812B chipset. Control all 64 pixels with just a single data pin from your Arduino, ESP32, or Raspberry Pi. Perfect for scrolling text displays, pixel art animations, ambient lighting, spectrum analyzers, and creative IoT projects. Available now from The Tech Depot, Bengaluru with fast shipping and full technical support.
Specifications
| LED Type | WS2812B (Individually Addressable RGB) |
| Matrix Configuration | 8x8 (64 LEDs Total) |
| Colors per LED | 16.7 Million (24-bit color: 256 levels per R/G/B channel) |
| Operating Voltage | 5V DC |
| Max Current (All White) | ~3.8A (approximately 60mA per LED at full brightness) |
| Data Protocol | Single-wire NZR (one data pin control) |
| Data Transfer Rate | 800 Kbps |
| Refresh Rate | >=400 Hz (no visible flicker) |
| Board Dimensions | Approximately 65mm x 65mm |
| LED Pitch | ~8mm center-to-center |
| Connector Interface | 3-pin header (VCC, GND, DIN) with DOUT for daisy-chaining |
| Chipset Integration | Driver IC built into each LED package |
| Cascading Support | Yes - chain multiple matrices via DOUT -> DIN |
| Compatible Platforms | Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and more |
| Library Support | Adafruit NeoPixel, FastLED, WS2812FX |
| Operating Temperature | -25 degreesC to +80 degreesC |
| Origin | Original/Authentic Components |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Individually Addressable LEDs: Control each of the 64 RGB LEDs independently for precise color, brightness, and animation effects across the entire matrix.
- Single-Pin Control: Drive the entire 8x8 matrix using just one digital GPIO pin - freeing up your microcontroller's I/O for sensors, buttons, and other peripherals.
- 16.7 Million Colors: Each LED supports 24-bit color depth (8 bits per channel) for smooth gradients, vivid hues, and professional-quality light output.
- Built-in Driver IC: The WS2812B chip is integrated directly into each LED package, eliminating the need for external shift registers or LED driver ICs.
- Daisy-Chain Expandable: Connect multiple matrices end-to-end via the DOUT-to-DIN interface to build larger displays - 16x16, 8x32, or custom configurations.
- High Refresh Rate: 400Hz+ refresh rate ensures smooth, flicker-free animations even at high frame rates for scrolling text and dynamic effects.
- 5V Logic Compatible: Works directly with 5V microcontrollers like Arduino Uno/Mega; compatible with 3.3V boards (ESP32, Raspberry Pi) using a level shifter for reliable communication.
- Compact Form Factor: The ~65mm x 65mm board fits easily into enclosures, wearable projects, and space-constrained installations.
- Extensive Library Support: Plug-and-play compatibility with Adafruit NeoPixel, FastLED, and WS2812FX libraries for rapid prototyping with ready-made effects.
- Low Power Sleep Mode: LEDs consume minimal current when set to off (black), making the matrix suitable for battery-powered applications with intermittent display use.
Why Choose The Tech Depot?
- 100% authentic WS2812B matrix modules sourced from trusted, authorized suppliers
- Every unit tested for dead pixels and data signal integrity before dispatch
- 1-5 day shipping, 7-8 day delivery across India from our Bengaluru warehouse
- Same-day delivery available within Bengaluru city limits
- Expert technical support to help with wiring, code, and project integration
- Competitive pricing with wholesale discounts on bulk orders
Project Ideas
- Scrolling Text Display: Program scrolling messages, clocks, or countdown timers using character mapping across the 8x8 grid - ideal for desks, retail signage, or event displays.
- Pixel Art & Retro Gaming: Design 8x8 pixel art sprites, recreate classic game characters, or build a mini playable game with button inputs and real-time
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
