Waveshare USB to CAN Adapter, Dual-Channel CAN Analyzer, Industrial Isolation
Waveshare USB to CAN Adapter, Dual-Channel CAN Analyzer, Industrial Isolation
Waveshare USB to CAN Adapter, Dual-Channel CAN Analyzer, Industrial Isolation

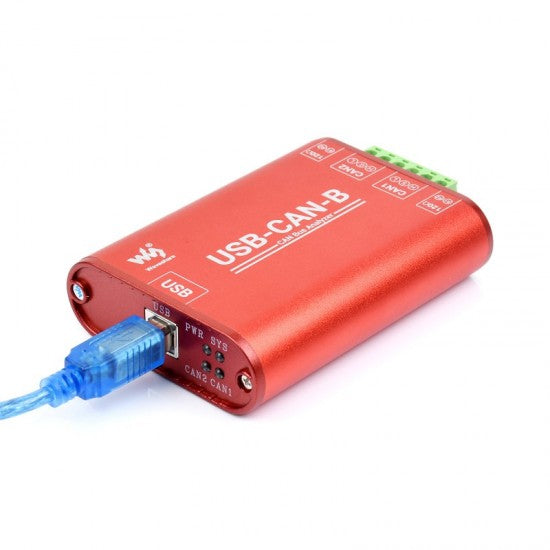

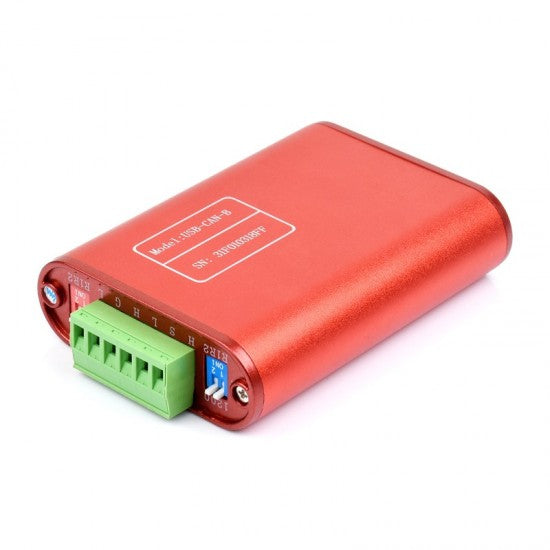

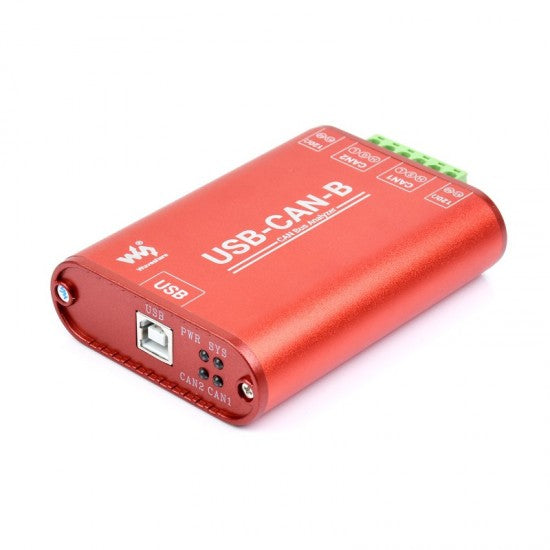

USB-CAN-B is an industrial high-performance USB to CAN adapter, CAN-bus communication interface card and CAN protocol data analyzer. Integrating dual independent channels with electrical isolation and multiple protection circuits. Supports Windows and Linux systems, comes with drivers, CANTools related software, secondary development examples and tutorials. It can be connected to the PC or industrial control host via USB port to realize transceiver control, data analysis, collection and monitoring of CAN bus network. Compact in size and easy to use, which can be used for learning and debugging of CAN bus, and secondary developmentand integration into various industrial, power communication and intelligent control applications that require CAN bus communication.
Specifications
| PRODUCT TYPE | Industrial grade: USB to CAN interface converter/CAN-bus communication interface card/CAN protocol data analyzer | |
|---|---|---|
| USB | Operating voltage | 5V (directly powered by USB port without external power supply) |
| Connector | USB-B | |
| Protection | Power and signal fully isolation, 2500V DC isolation, +/-8KV electrostatic discharge | |
| CAN INTERFACE | CAN channel | Dual-channel: CAN1 and CAN2 (independent and isolated) |
| Connector | CAN bus screw terminal | |
| Protection | Built-in GDT Ceramic discharge tube, can effectively release surge current Built-in EPCOS Common mode Choke, can improve anti-interference ability Built-in power and signal isolation module, 2500V DC isolation, +/-8KV electrostatic discharge |
|
| Terminal resistor | Each CAN channel has two built-in 120Ohm terminal resistors, which can be enabled by switch | |
| Baud Rate | 10Kbps~1Mbps | |
| Protocol Support | CAN2.0A, CAN2.0B, CANOpen, SAE J1939, DeviceNet, iCAN, ISO 15765 protocol | |
| Hardware Support | Single-wire CAN, High-speed CAN, Low-speed/Fault-tolerant CAN | |
| Transfer speed | The receiving and sending of each CAN channel can reach: 8500 frames/s | |
| Transmit buffer | 2000 frames receiving buffer and 1000 frames sending buffer per channel (automatically retransmit when transmission fails) | |
| INDICATORS | PWR | Red power indicator, light up when there is USB connection and voltage is detected |
| TXD | Green TX indicator, light up when the USB port sends data | |
| RXD | Blue RX indicator, light up when the device ports send data back | |
| CASE MATERIAL | Aluminum alloy case + 3D flame-retardant insulating sheets on both sides | |
| DIMENSIONS | 104 x 70 x 25 mm | |
| OPERATING TEMPERATURE | -40~85 | |
| SYSTEM SUPPORT | Windows | Windows XP/7/8/10/11 (32/64 bits) |
| Linux | Raspberry Pi OS, Ubuntu (Jetson Nano), VMware virtual PC and so on. | |
