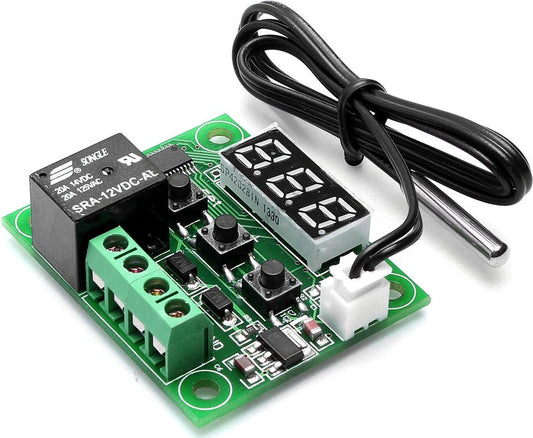

Precisely control heating and cooling systems with the W1209 Digital Temperature Controller Thermostat Module - a compact, reliable, and highly versatile board featuring a bright LED display, onboard relay, and NTC temperature sensor probe. Ideal for incubators, aquariums, 3D printer heated beds, home brewing, and countless DIY automation projects.
Specifications
| Module | W1209 Digital Thermostat Temperature Controller |
| Supply Voltage | 12V DC |
| Measurement Range | -50 degreesC to +110 degreesC |
| Temperature Resolution | 0.1 degreesC |
| Measurement Accuracy | +/-0.1 degreesC (at -20 degreesC to +70 degreesC range) |
| Temperature Sensor | NTC (10K 0.5%) Waterproof Probe (included) |
| Sensor Cable Length | ~50 cm (approx. 20 inches) |
| Control Output | Onboard 10A Relay (1 channel, SPDT - NO/NC) |
| Relay Rating | 10A @ 250V AC / 10A @ 30V DC (resistive load) |
| Control Modes | Heating (H) / Cooling (C) - user selectable |
| Hysteresis Setting | 0.1 degreesC to 15 degreesC (adjustable to prevent relay chatter) |
| Temperature Calibration | -7.0 degreesC to +7.0 degreesC offset adjustment |
| Trigger Delay | 0 to 10 minutes (configurable relay activation delay) |
| High/Low Alarm | User-settable upper and lower temperature alarm thresholds |
| Display | 3-digit 0.36" Red LED (clear visibility in low light) |
| User Interface | 3 tactile buttons (SET, +, ) for easy programming |
| Standby Current | <=35 mA |
| Operating Current | <=65 mA (relay energized) |
| Refresh Rate | ~0.5 seconds |
| Board Dimensions | 48 mm x 40 mm x 14 mm (approx.) |
| Weight | ~20 g (module + sensor probe) |
| Operating Environment | -10 degreesC to +60 degreesC ambient, 20-85% RH (non-condensing) |
| Mounting | Screw terminal connections; optional panel-mount cutout |
| Type | Electronics Module / Thermostat Controller |
| Origin | Original / Authentic Quality-Tested Module |
Why Choose W1209 Digital Temperature Controller Thermostat Module?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of W1209 Digital Temperature Controller Thermostat Module
- Wide Sensing Range: Measures from -50 degreesC to +110 degreesC with 0.1 degreesC resolution, covering freezing applications to high-temperature process control.
- Dual Mode Operation: Easily switch between heating mode and cooling mode via the settings menu - one module handles both scenarios.
- Powerful Onboard Relay: Built-in 10A relay directly switches heaters, fans, compressors, pumps, or solenoid valves without requiring an external relay board.
- Waterproof NTC Probe Included: Stainless steel-tipped, sealed sensor probe can be submerged in liquids or placed in humid environments for accurate readings.
- Adjustable Hysteresis: Set the temperature differential (0.1 degreesC-15 degreesC) to prevent rapid relay cycling, extending the life of both the relay and connected equipment.
- Configurable Delay Timer: Add a 0-10 minute delay before the relay activates to protect compressors and other equipment that require rest periods between cycles.
- Temperature Offset Calibration: Fine-tune readings by +/-7 degreesC to compensate for sensor placement or cable length variations.
- High & Low Alarms: Set upper and lower temperature boundaries; the display flashes and alerts you when thresholds are breached.
- Bright LED Display: 3-digit red LED readout is clearly visible even in dimly lit workshops, enclosures, or server rooms.
- Simple 3-Button Programming: Intuitive SET / + / interface makes configuration fast - no special tools or software required.
- Compact & Lightweight: Tiny 48 x 40 mm footprint fits inside project enclosures, electrical panels, or custom dashboard cutouts.
- Low Power Consumption:
