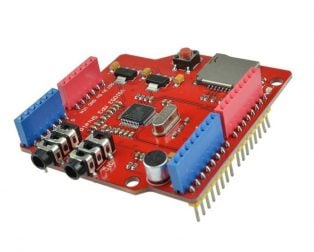

VS1053 MP3 Recording Module Development Board with Onboard Recording Function
VS1053 MP3 Recording Module Development Board with Onboard Recording Function
VS1053 MP3 Recording Module Development Board with Onboard Recording Function
The VS1053 MP3 Recording Module is a professional-grade audio codec development board featuring integrated MP3 encoding and decoding capabilities with real-time recording functionality. Audio engineers, IoT developers, and embedded systems specialists use this module to build voice recording applications, smart audio devices, and multimedia projects without requiring complex DSP programming. This module solves the critical challenge of adding high-quality MP3 audio recording and playback to microcontroller-based projects while maintaining minimal power consumption and code complexity.
Product Overview
The VS1053 is a versatile single-chip audio codec that combines MP3, OGG Vorbis, WAV, MIDI, and FLAC decoding with real-time MP3 encoding for recording applications. The module operates on a sophisticated architecture with an integrated 16-bit microprocessor core, 32KB of internal RAM, and dedicated hardware for audio signal processing. The onboard recording function allows direct audio input through a microphone or line-in source, which is then compressed in real-time to MP3 format at variable bitrates (8-320 kbps), making it ideal for voice recording, audio logging, and multimedia applications where storage efficiency is critical.
This development board includes all necessary support circuitry including crystal oscillator (12.288 MHz), power supply filtering, audio input amplification stage, and SPI interface for microcontroller communication. The VS1053 communicates via a 4-wire SPI bus at speeds up to 7 MHz, enabling seamless integration with Arduino, Raspberry Pi, STM32, and other embedded platforms. The module's low power consumption (approximately 50mA during recording) and compact footprint make it suitable for battery-powered portable recording devices, IoT audio sensors, and embedded multimedia systems where space and power efficiency are paramount.
Key Specifications
| Specification | Details |
| Product Type | MP3 Audio Codec Development Board with Recording Module |
| Chipset | VS1053 Single-Chip Audio Codec |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| Operating Voltage | 3.3V to 5V DC |
| Audio Input | Microphone input with programmable gain amplifier |
| Audio Output | Stereo line-out (DAC output) |
| MP3 Bitrate Support | 8 kbps to 320 kbps variable bitrate encoding |
| Sampling Rates | 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz |
| Interface | SPI (Serial Peripheral Interface) 4-wire |
| Current Consumption | Recording: 50mA, Playback: 80mA, Standby: 5mA |
| Board Dimensions | Compact form factor with standard pinout |
Key Features
- Real-time MP3 Encoding: Directly records audio to MP3 format at variable bitrates (8-320 kbps) with hardware-accelerated compression, eliminating the need for post-processing
- Multi-codec Support: Decodes MP3, OGG Vorbis, WAV, MIDI, and FLAC formats, providing versatility for multimedia applications and audio playback functionality
- Programmable Microphone Amplifier: Integrated analog front-end with adjustable gain control (0-40dB) for optimal signal conditioning from various microphone types and sensitivities
- Low Power Consumption: Efficient DSP architecture consumes only 50mA during recording and 5mA in standby mode, ideal for battery-powered IoT and portable devices
- Easy SPI Integration: Standard 4-wire SPI interface operates at up to 7 MHz, ensuring rapid data transfer and compatibility with all major microcontroller platforms
- Flexible Sampling Rates: Supports 8 standard sampling rates from 8 kHz to 48 kHz, enabling applications from voice recording to high-fidelity audio capture
Applications and Use Cases
- Voice Recording Devices: Build portable voice recorders and dictation machines with MP3 compression, reducing storage requirements by 90% compared to uncompressed WAV files
- IoT Audio Sensors: Integrate into smart home systems, security cameras, and environmental monitoring devices to capture and transmit compressed audio data over wireless networks
- Embedded Music Players: Create standalone MP3 music players for educational kits, automotive systems, and consumer electronics with full playback and recording capabilities
- Audio Logging Systems: Develop industrial audio logging solutions for machinery monitoring, call recording, and acoustic event detection with automatic MP3 compression
- Arduino and Raspberry Pi Projects: Add professional-grade audio recording and playback to maker projects, robotics platforms, and educational electronics experiments
- Multimedia Development Boards: Prototype multimedia applications including voice-controlled devices, audio annotation systems, and interactive educational tools
How to Use
Begin by connecting the VS1053 module to your microcontroller via the SPI interface: MOSI to data input, MISO to data output, SCK to clock, and CS to chip select pin. Apply 3.3V to 5V power supply with appropriate decoupling capacitors (100nF ceramic and 10uF electrolytic) placed close to the power pins. Connect your audio source (microphone or line-in) to the microphone input pins, ensuring proper impedance matching and AC coupling if necessary. Initialize the SPI bus at a lower frequency (1-2 MHz) during startup, then increase to 7 MHz for normal operation once the codec is initialized.
Use the VS1053 control library or datasheet-based SPI commands to configure recording parameters: set the desired sampling rate (typically 16 kHz for voice, 44.1 kHz for music), MP3 bitrate (128-192 kbps recommended for voice), and microphone gain. Send audio data frames through the SPI interface to the codec, which handles real-time MP3 compression internally. Monitor the interrupt pins for buffer status and data availability. Store the encoded MP3 stream directly to SD card, flash memory, or transmit over network interfaces. The module handles all complex DSP operations internally, requiring only straightforward SPI command sequences from your application code.
Frequently Asked Questions
What is the difference between recording at 128 kbps versus 192 kbps MP3 bitrate?
128 kbps provides adequate quality for voice recording and speech applications with approximately 7.5 KB/second file size, suitable for long-duration recording on limited storage. 192 kbps delivers near-CD quality audio with minimal compression artifacts, consuming 11.4 KB/second, recommended for music and high-fidelity applications. The VS1053 allows runtime bitrate switching, enabling you to select the optimal balance between audio quality and storage efficiency for each recording session.
Can the VS1053 record and play audio simultaneously?
The VS1053 codec can theoretically handle simultaneous recording and playback through separate data channels, but practical implementation requires careful buffer management and sufficient SPI bandwidth. Most applications use the module in either recording or playback mode exclusively to simplify firmware development and ensure reliable operation. If simultaneous audio I/O is required, consider using two separate VS1053 modules or implementing a switching mechanism that alternates between modes at high frequency.
What microphone types are compatible with the VS1053 input stage?
The VS1053 microphone input accepts electret condenser microphones (ECM), dynamic microphones, and line-level audio sources. The programmable gain amplifier (0-40dB) accommodates microphone sensitivities from -40dBV/Pa to -20dBV/Pa. For optimal performance, use microphones with impedance between 2K to 10K ohms. AC coupling capacitors (10-100uF depending on impedance) should be placed between the microphone and input pins to block DC offset and prevent bias current issues.
How do I transfer recorded MP3 files to a computer?
Recorded MP3 files stored on SD cards can be transferred via standard SD card readers connected to a computer. If using internal flash memory, implement a data transfer protocol through UART, USB, or network interface connected to your microcontroller. The VS1053 module itself does not include USB connectivity; you must use the host microcontroller to manage file transfer. Most projects use Arduino with SD shield or Raspberry Pi with attached storage for convenient file management and computer access.
