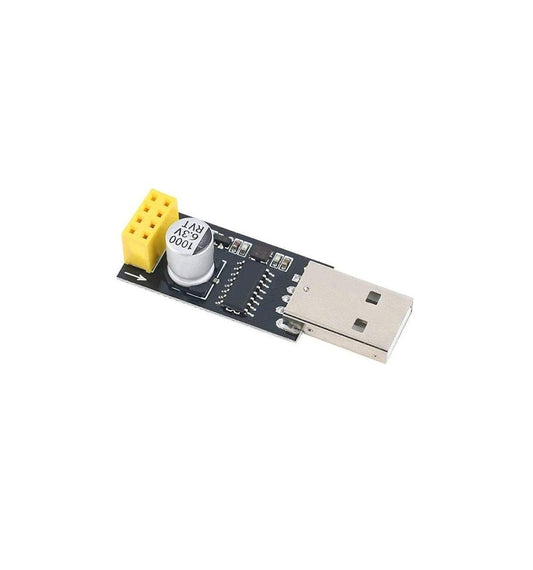

USB to UART ESP-01 CH340 Programmer

Easily program and debug your ESP-01 Wi-Fi modules with this compact USB to UART adapter powered by the reliable CH340 chipset. Simply plug in your ESP-01, connect to your computer via USB, and start uploading firmware through the Arduino IDE or any serial terminal - no messy wiring or breadboard connections required. Available now from The Tech Depot, Bengaluru, with fast shipping and full technical support.

Specifications

Key Features

• Plug-and-Program Design: Snap your ESP-01 directly onto the 2x4 header - no jumper wires, no breadboard, no soldering needed.
• Reliable CH340G Chipset: Proven USB-to-serial converter with stable communication and wide OS driver support.
• On-Board 3.3V Regulator: Safely powers the ESP-01 at 3.3V from the 5V USB bus, protecting the ESP8266 from overvoltage.
• Dedicated Flash Mode Control: Built-in button or switch pulls GPIO0 LOW so you can enter programming mode with a single press - no manual wire grounding.
• TX/RX Activity LEDs: Visual feedback during data transmission helps with quick debugging.
• Compact USB Stick Form Factor: Plugs directly into any USB-A port; small enough to carry in a pocket or tool kit.
• High Baud Rate Support: Communicates at up to 2 Mbps for fast firmware uploads and serial monitoring.
• Cross-Platform Drivers: CH340 drivers available for Windows 7/8/10/11, macOS, and all major Linux distributions.
• Arduino IDE Ready: Select "Generic ESP8266 Module" in the Arduino IDE board manager, pick the COM port, and upload your sketch immediately.
• Serial Debug Console: Also functions as a standard USB-to-UART adapter for serial monitoring and AT command interaction with the ESP-01.

Why Choose This?

• 100% authentic from trusted suppliers - no clones or counterfeit chips
• Eliminates complex breadboard wiring typically needed to program ESP-01 modules
• On-board voltage regulation and flash-mode control for a hassle-free workflow
• 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse; same-day delivery within Bengaluru
• Expert technical support included - we help you install drivers and upload your first sketch

Project Ideas

• IoT Wi-Fi Sensor Node: Program the ESP-01 to read temperature, humidity, or motion sensor data and publish it to an MQTT broker or Blynk dashboard over Wi-Fi.
• Smart Home Relay Controller: Flash custom firmware to toggle a relay module from your phone, enabling Wi-Fi-controlled lights, fans, or appliances.
• ESP-01 Web Server: Upload a lightweight HTTP server sketch that serves a control webpage, letting you monitor GPIO states or trigger actions from any browser.
• AT Command Experimentation: Use the programmer as a serial terminal to send AT commands, learn the ESP8266 AT firmware, and configure Wi-Fi settings manually.
• OTA Bootloader Setup: Flash an OTA-capable bootloader onto the ESP-01 so future updates can be pushed wirelessly - the programmer is needed only once.
