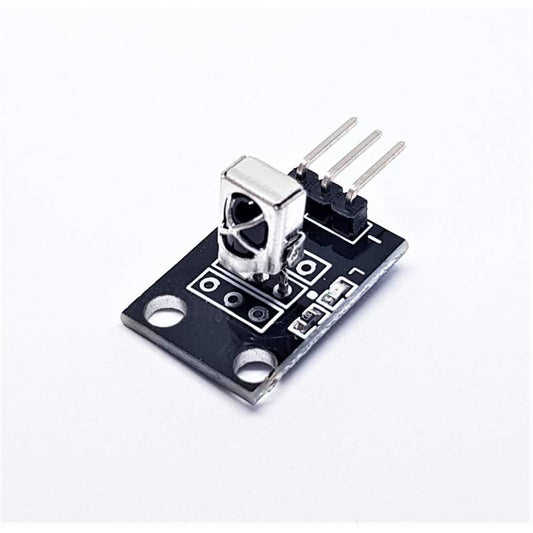

TSOP Module
TSOP Module
Shipping calculated at checkout.
Looking to buy TSOP Module at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
Specifications
| Module Type | IR Receiver Module (TSOP-based) |
| Sensor IC | TSOP1738 / TSOP38238 (38kHz Carrier Frequency) |
| Operating Voltage | 3.3V - 5V DC |
| Output Type | Digital (Active Low - demodulated signal) |
| Carrier Frequency | 38 kHz (optimized for standard IR remotes) |
| Reception Angle | +/-45 degrees (typical) |
| Reception Distance | Up to 10-18 meters (depending on remote transmitter power) |
| Output Pin | Signal (OUT), VCC, GND - 3-pin header |
| Onboard Features | Power LED indicator, signal conditioning capacitors, pull-up resistor |
| Protocol Compatibility | NEC, Sony SIRC, RC5, RC6, Samsung, and other standard IR protocols |
| Dimensions | Approx. 25mm x 15mm (compact breakout board) |
| Mounting | PCB with header pins for breadboard or direct wiring |
| Operating Temperature | -25 degreesC to +85 degreesC |
| Origin | Original/Authentic Components |
Why Choose TSOP Module?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of TSOP Module
- 38kHz Tuned Reception: Optimized for standard TV, AC, and universal IR remotes, ensuring reliable signal decoding with minimal noise interference.
- Plug-and-Play 3-Pin Interface: Simple VCC, GND, and Signal output header pins connect directly to Arduino, ESP32, STM32, or any microcontroller without additional circuitry.
- Built-In Signal Demodulation: The TSOP sensor handles bandpass filtering, demodulation, and AGC (Automatic Gain Control) internally, delivering a clean digital output.
- Wide Voltage Compatibility: Operates reliably at both 3.3V and 5V logic levels, making it compatible with Arduino Uno, Nano, ESP8266, ESP32, and Raspberry Pi GPIO.
- Excellent Ambient Light Rejection: Advanced shielding and internal filtering reject interference from sunlight, fluorescent lamps, and other IR noise sources.
- Long Range Detection: Receives signals from standard IR remotes at distances up to 18 meters in clear line-of-sight conditions.
- Breadboard Friendly: Pre-soldered header pins allow instant prototyping on standard breadboards without any soldering required.
- Low Power Consumption: Draws minimal current (typically under 5mA), suitable for battery-powered and portable projects.
- Pre-assembled module eliminates the need for external filtering capacitors and biasing resistors
- Extensive Arduino library support (IRremote, IRLib2) with abundant online tutorials and example code
Perfect For
- IR Remote Controlled Robot: Build a robot car or robotic arm that responds to any standard TV remote control. Map different remote buttons to motor directions, speed control, and gripper actions for an engaging robotics project.
- Home Automation System: Use any spare IR remote to control relays connected to lights, fans, and appliances. Combine with Arduino and a relay module to create an affordable smart home controller without Wi-Fi dependency.
- IR Remote Decoder & Analyzer: Capture and decode the protocol, address, and command data from any IR remote. Useful for reverse-
TSOP Module - IR Receiver Module for Remote Control Applications
Decode infrared remote control signals effortlessly with this TSOP IR Receiver Module from Tech Depot India, Bengaluru. This compact, ready-to-use module integrates a TSOP1738 (or equivalent 38kHz) IR sensor with onboard signal conditioning circuitry, making it ideal for Arduino, Raspberry Pi, and microcontroller-based remote control projects.
How It Works
The TSOP module contains an integrated IR photodetector and preamplifier tuned to 38kHz. When an IR remote transmits a modulated signal, the TSOP sensor receives the infrared light, filters out ambient interference through its internal bandpass filter, demodulates the 38kHz carrier, and outputs a clean digital pulse train. This output directly represents the encoded data (button presses) from the remote, which your microcontroller decodes using standard IR libraries. The module's onboard circuitry includes decoupling capacitors and a power indicator LED for stable, hassle-free operation.
Frequently Asked Questions
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your TSOP Module today and start building your next project.
