Thermoelectric Peltier Refrigeration Cooling System DIY Kit (Without TEC-12706 Peltier Module)

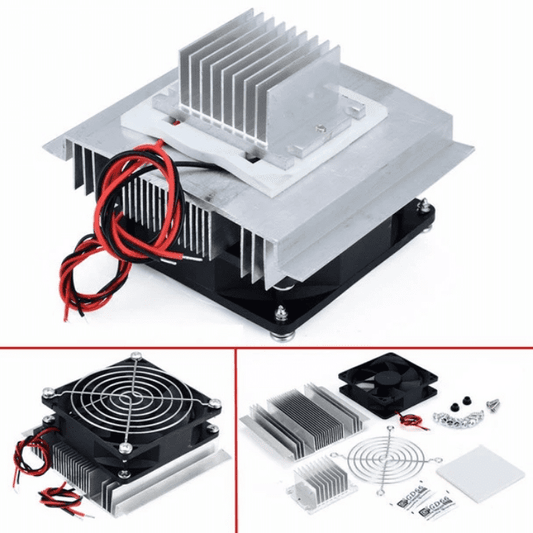

Build your own compact refrigeration and cooling system with this complete Thermoelectric Peltier Cooling DIY Kit from Tech Depot India, Bengaluru. This kit includes all essential components - heatsinks, fan, cold-side aluminum block, mounting hardware, and thermal accessories - needed to assemble a functional thermoelectric cooler. Simply add your own TEC-12706 Peltier module to get started. Ideal for hobbyists, students, and engineers exploring solid-state cooling, mini-fridge projects, CPU cooling experiments, and thermal management prototypes.
Specifications
| Kit Type | Thermoelectric Peltier Refrigeration Cooling System DIY Kit |
| Compatible Peltier Module | TEC1-12706 (Not Included - sold separately) |
| Hot-Side Heatsink | Large aluminum fin heatsink for efficient heat dissipation |
| Cold-Side Block | Aluminum cold plate / water block for cooling surface |
| Cooling Fan | DC 12V brushless fan for hot-side heat exhaust |
| Fan Dimensions | Approximately 90mm x 90mm x 25mm (may vary by batch) |
| Fan Operating Voltage | DC 12V |
| Thermal Interface Material | Thermal grease / thermal pad included for optimal heat transfer |
| Mounting Hardware | Screws, brackets, clamps, and insulation gasket included |
| Recommended Power Supply | DC 12V, 6A or higher (not included) |
| Assembled Dimensions | Approximately 150mm x 100mm x 80mm (varies by assembly) |
| Cold-Side Temperature | Can reach 5 degreesC-15 degreesC below ambient (depending on Peltier module and setup) |
| Application Temperature Range | -10 degreesC to +50 degreesC ambient operating environment |
| Material | Aluminum heatsinks, ABS/plastic fan housing, steel fasteners |
| Weight | Approximately 300-450g (without Peltier module) |
| Category | Cooling System / Thermal Management / DIY Electronics Kit |
| Skill Level | Beginner to Intermediate (basic assembly and wiring required) |
| Origin | Original / Authentic Components |
| Warranty | |
| Support | Email & WhatsApp reliable Technical Assistance |
Key Features
- Complete Cooling Assembly (Minus Peltier): Includes hot-side heatsink, cold-side aluminum block, DC fan, thermal paste, insulation gasket, and all mounting hardware - everything except the TEC-12706 module
- Efficient Hot-Side Heat Dissipation: Large aluminum fin heatsink paired with a powerful 12V DC brushless fan rapidly exhausts heat from the hot side, ensuring the Peltier module operates at peak efficiency
- Precision Cold-Side Aluminum Block: Machined aluminum cold plate provides a flat, thermally conductive surface that can cool small enclosures, beverage containers, or electronic components effectively
- Thermal Interface Materials Included: Pre-packaged thermal grease or thermal pad ensures minimal thermal resistance between the Peltier module and both the heatsink and cold block
- Insulation Gasket for Efficiency: Foam or rubber insulation gasket prevents thermal bridging between hot and cold sides, maximizing the temperature differential and cooling performance
- Universal TEC-12706 Compatibility: Designed specifically for the widely available TEC1-12706 Peltier thermoelectric module (40mm x 40mm standard footprint), giving you flexibility to source your preferred module
- Easy Bolt-Together Assembly: All components are pre-drilled and matched - simply sandwich the Peltier module between the heatsink and cold block, apply thermal paste, secure with included hardware, and connect power
- Compact and Portable Design: Small overall footprint makes it easy to integrate into mini-fridge builds, portable coolers, small enclosure cooling, and benchtop experiments
- Solid-State Reliability: Thermoelectric cooling has no moving parts (aside from the fan), no refrigerant, and no compressor - resulting in quiet, vibration-free, maintenance-free operation
- 12V DC Operation: Runs on standard 12V DC power, compatible with benchtop power supplies, 12V adapters, car batteries, and solar panel setups
Why Choose This Kit?
- 100% Authentic Components: Sourced directly from trusted and authorized suppliers - every heatsink, fan, and accessory is quality-verified
- Cost-Effective Flexibility: Already have a TEC-12706 module? This kit lets you avoid paying for a duplicate -
Frequently Asked Questions
When will I receive my order?
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
