TEC1-12715 Peltier Module
TEC1-12715 Peltier Module

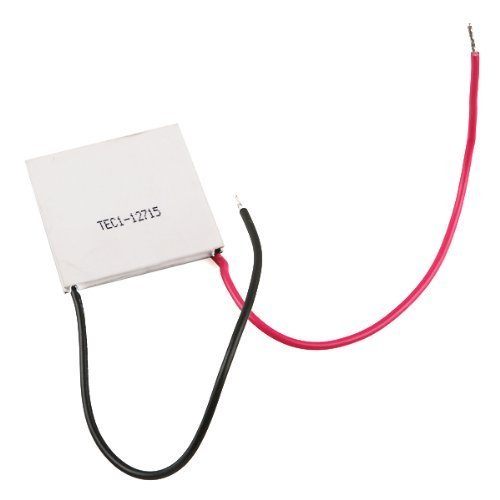

TEC1-12715 Peltier Thermoelectric Cooler Module
High-performance 15A thermoelectric cooling module from The Tech Depot, Bengaluru. The TEC1-12715 is a powerful Peltier device capable of creating a significant temperature differential - one side gets cold while the other gets hot when DC current is applied. Ideal for DIY coolers, CPU cooling, mini refrigerators, and thermal management projects. Fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Model | TEC1-12715 |
| Type | Thermoelectric Peltier Cooler Module |
| Operating Voltage | 12V DC (Max 15.4V) |
| Maximum Current | 15A |
| Maximum Power Consumption | ~136W |
| Max Temperature Differential (T) | Up to 67 degreesC |
| Maximum Cooling Capacity (Qmax) | ~150W |
| Number of Thermocouples | 127 |
| Module Dimensions | 40mm x 40mm x 3.6mm |
| Hot Side Max Temperature | 138 degreesC |
| Ceramic Plate Material | Alumina (Al2O3) |
| Sealing | Silicone sealed edges for moisture protection |
| Wire Length | ~150mm (Red: +, Black: ) |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- High Cooling Power: 15A rated current with up to 150W cooling capacity - one of the most powerful standard 40x40mm Peltier modules available
- Significant Temperature Differential: Achieves up to 67 degreesC difference between hot and cold sides for effective cooling or heating
- Solid-State Reliability: No moving parts, no refrigerant, no noise - operates silently with no mechanical wear
- Reversible Operation: Swap polarity to switch between cooling and heating modes instantly
- Compact 40x40mm Form Factor: Industry-standard size fits easily into custom enclosures, heatsink assemblies, and project builds
- 127 Thermocouple Pairs: Dense bismuth telluride semiconductor array for efficient thermoelectric energy transfer
- Durable Ceramic Construction: Alumina ceramic plates provide excellent electrical insulation and thermal conductivity
- Sealed Edges: Silicone sealing protects internal thermocouples from moisture and oxidation
- Pre-Soldered Leads: Color-coded wires (red positive, black negative) for quick and easy wiring
- Wide Application Range: Suitable for cooling, heating, temperature stabilization, and thermoelectric power generation experiments
Why Choose The TEC1-12715?
- 100% authentic module sourced from trusted, authorized suppliers
- 1-5 day shipping, 7-8 day delivery across India from our Bengaluru warehouse
- Expert technical support to help you design effective cooling systems
- One of the highest-power 40mm Peltier modules - ideal when maximum cooling is needed
- Proven and widely documented module with extensive community resources and datasheets
How It Works
The TEC1-12715 operates on the Peltier effect - when DC current flows through the 127 bismuth telluride thermocouple pairs inside the module, heat is actively transferred from one ceramic face to the other. The cold side absorbs heat (cooling your target), while the hot side dissipates heat (requiring a heatsink and fan). The greater the current, the greater the cooling effect - up to the module's 15A maximum. Reversing the polarity reverses the hot and cold sides, making it equally useful for heating applications.
Important Usage Notes
- Heatsink is mandatory: The hot side MUST be attached to an adequate heatsink (with fan) to prevent thermal runaway and module damage
- Use thermal paste: Apply thermal compound between the Peltier module and both the heatsink and the object being cooled for optimal heat transfer
- Power supply requirements: A 12V 15A (180W+) DC power supply is recommended for full-power operation; lower current limits cooling capacity proportionally
- Do not exceed 15.4V: Overvoltage will permanently damage the thermocouple junctions
- Avoid mechanical stress: Ceramic plates are brittle - do not overtighten mounting screws or bend the module
- Condensation management: At low temperatures, moisture may condense on the cold side - use insulation or sealed enclosures to prevent water damage to electronics
- PWM control compatible:
