TDA7492 50*2 100W HighPower Digital Amplifier Board
TDA7492 50*2 100W HighPower Digital Amplifier Board
TDA7492 50*2 100W HighPower Digital Amplifier Board

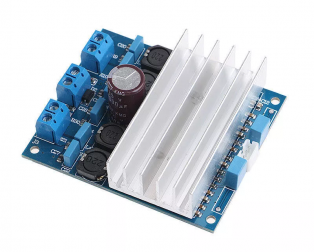

The TDA7492 is a Class D digital amplifier board delivering 50W x 2 channels at 4 ohms or 100W total output power, making it ideal for professional audio applications requiring compact high-efficiency amplification. Audio engineers, DIY enthusiasts, and commercial sound system integrators rely on this board for powering active speakers, home theater systems, and portable PA systems with minimal thermal dissipation. This amplifier solves the critical challenge of delivering high-power output in space-constrained applications while maintaining superior audio fidelity and energy efficiency compared to traditional Class AB amplifiers.
Product Overview
The TDA7492 operates on Class D amplification principles, utilizing pulse-width modulation to achieve exceptional power efficiency of up to 90 percent. Unlike conventional linear amplifiers that waste significant energy as heat, this digital amplifier switches the output transistors at high frequencies, dramatically reducing power consumption and thermal output. The board features integrated protection circuitry including thermal shutdown, DC offset detection, and short-circuit protection, ensuring reliable operation even under demanding conditions. The compact PCB design incorporates a high-quality power supply section with robust filtering capacitors and a precision feedback network that maintains low THD distortion levels below 1 percent across the audio spectrum.
The TDA7492 chip integrates both amplification channels on a single IC, eliminating the need for discrete component amplifier designs and significantly reducing board complexity. The amplifier accepts low-level audio inputs from line sources, microphones with preamplification, or digital audio interfaces, making it versatile for various audio source configurations. Its ability to operate from a single 12V to 24V DC power supply with minimal external components makes it exceptionally suitable for battery-powered applications, automotive audio systems, and portable equipment. The board's thermal characteristics allow extended operation without active cooling in most applications, though heatsinking is recommended for continuous high-power operation above 80 watts per channel.
Key Specifications
| Specification | Details |
| Product Type | Class D Digital Amplifier Board |
| Amplifier IC | TDA7492 |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| Output Power | 50W x 2 channels at 4 ohms, 100W total |
| Supply Voltage | 12V to 24V DC single supply |
| Input Impedance | 10 kilo-ohms |
| Frequency Response | 20 Hz to 20 kHz |
| Total Harmonic Distortion | Less than 1 percent at rated power |
| Power Efficiency | Up to 90 percent Class D efficiency |
| Board Dimensions | Approximately 80mm x 50mm x 25mm |
| Protection Features | Thermal shutdown, DC offset detection, short-circuit protection |
Key Features
- Dual 50W channel output at 4 ohms impedance delivers 100W total power in a compact form factor, enabling powerful audio amplification in space-limited installations
- Class D digital amplification architecture achieves 90 percent power efficiency, reducing heat generation and power supply requirements compared to conventional amplifiers
- Single 12V to 24V DC power supply operation eliminates the need for dual-rail power supplies, simplifying circuit design and reducing component count
- Integrated thermal shutdown protection automatically disables the amplifier if junction temperature exceeds safe limits, preventing permanent IC damage
- Low total harmonic distortion below 1 percent ensures clean audio reproduction with minimal audible artifacts across the entire audio frequency range
- DC offset detection and automatic shutdown prevents speaker damage from harmful DC voltage components in the output signal
- Minimal external component requirements reduce PCB space, cost, and assembly complexity while maintaining audio performance
- Wide frequency response from 20 Hz to 20 kHz covers the complete audible spectrum with consistent gain across all audio frequencies
Applications and Use Cases
- Active speaker systems and powered monitors in professional recording studios, live sound reinforcement, and broadcast facilities requiring compact amplification with minimal distortion
- Portable PA systems and battery-powered sound equipment for outdoor events, conferences, and mobile entertainment applications where power efficiency directly extends operating time
- Home theater and surround sound systems as satellite speaker amplifiers or subwoofer drivers, delivering dynamic audio reproduction in compact speaker enclosures
- Automotive audio systems and in-vehicle entertainment platforms where space constraints and 12V power supplies make Class D amplification the optimal choice
- DIY audio projects including guitar amplifiers, keyboard amplifiers, and custom audio installations where builders require proven, cost-effective amplification solutions
- IoT audio devices and smart speakers requiring efficient amplification with minimal power consumption and thermal output for continuous operation
How to Use
Begin by connecting your DC power supply to the board, ensuring correct polarity with the positive lead to the VCC pad and negative to ground. Use a power supply rated for at least 24V at 5 amperes for full 100W output capability, though 12V supplies work adequately for lower power applications. Connect your audio source to the left and right input pads through coupling capacitors if DC blocking is required, or directly if your source provides AC-coupled audio signals. The input level should be approximately 1 to 2 volts RMS for full output power, adjustable through a preamp stage or volume control in your audio chain.
Connect your speakers to the output terminals, respecting the minimum 4-ohm impedance specification to prevent amplifier damage and ensure rated power delivery. For stereo operation, connect left channel speaker to the left output and right channel speaker to the right output. If operating in bridged mono mode, connect a single 8-ohm or higher impedance speaker between the left and right positive terminals, yielding approximately 200W output power. Mount the board on a heatsink if continuous operation above 50W per channel is required, using thermal compound between the IC and heatsink surface. Allow adequate ventilation around the amplifier board, and avoid blocking airflow around the output transistors and power supply components during extended operation.
Frequently Asked Questions
What is the difference between Class D and Class AB amplifiers in the TDA7492?
Class D amplifiers like the TDA7492 use pulse-width modulation to switch output transistors at high frequencies, achieving 90 percent efficiency with minimal heat generation. Class AB amplifiers use linear output stages that conduct continuously, wasting significant energy as heat and achieving only 50 to 70 percent efficiency. This makes Class D ideal for battery-powered and portable applications where power efficiency directly impacts runtime and eliminates the need for large heatsinks.
Can I operate the TDA7492 from a 12V power supply, and will I get full 100W output?
Yes, the TDA7492 operates from 12V DC, but output power will be reduced compared to 24V operation due to the lower supply voltage. At 12V, you can expect approximately 25W per channel at 4 ohms impedance, totaling 50W output. For full 100W capability, use a 24V power supply. The amplifier will operate safely at any voltage between 12V and 24V, with output power scaling proportionally with supply voltage.
What speaker impedance should I use with the TDA7492?
The TDA7492 is rated for 4-ohm speaker impedance minimum for stereo operation, delivering 50W per channel at this impedance. Using lower impedance speakers below 4 ohms will exceed the amplifier's current capability and may trigger protection circuits or cause permanent damage. For 8-ohm speakers, output power reduces to approximately 25W per channel. In bridged mono mode, use 8-ohm or higher impedance loads to maintain safe current levels.
Does the TDA7492 require a heatsink for normal operation?
The TDA7492 can operate without a heatsink at moderate power levels below 30W per channel due to its efficient Class D design. However, for continuous operation above 50W per channel or in high-ambient-temperature environments, mounting the IC on an aluminum heatsink with thermal compound significantly extends component life and prevents thermal shutdown. A small 50mm x 50mm heatsink with forced air cooling is sufficient for most applications.
What input level does the TDA7492 require for full output power?
The TDA7492 requires approximately 1 to 2 volts RMS at the input for full rated output power. Most line-level audio sources from mixing consoles, audio interfaces, and preamps provide 1 to 2 volts RMS, making them directly compatible. Microphone-level signals around 10 to 50 millivolts require preamplification before the amplifier input. Use a volume control potentiometer or preamp stage to adjust input levels for proper gain staging.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
Why Buy from The Tech Depot
- Genuine Products: Sourced directly from authorized distributors with authentication
- Expert Team: Our technical team validates every product before listing
- Fast Shipping: Dispatched within 1-5 days from our Bengaluru warehouse
- Pan-India Delivery: 7-8 days to Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata
- Payment Options: COD, UPI, credit/debit cards, net banking, EMI available
- Technical Support: 24/7 expert guidance via email and WhatsApp
- Returns: 7-day return policy on manufacturing defects only
Buy TDA7492 50*2 100W HighPower Digital Amplifier Board Online in India
Purchase the TDA7492 50*2 100W HighPower Digital Amplifier Board online at
