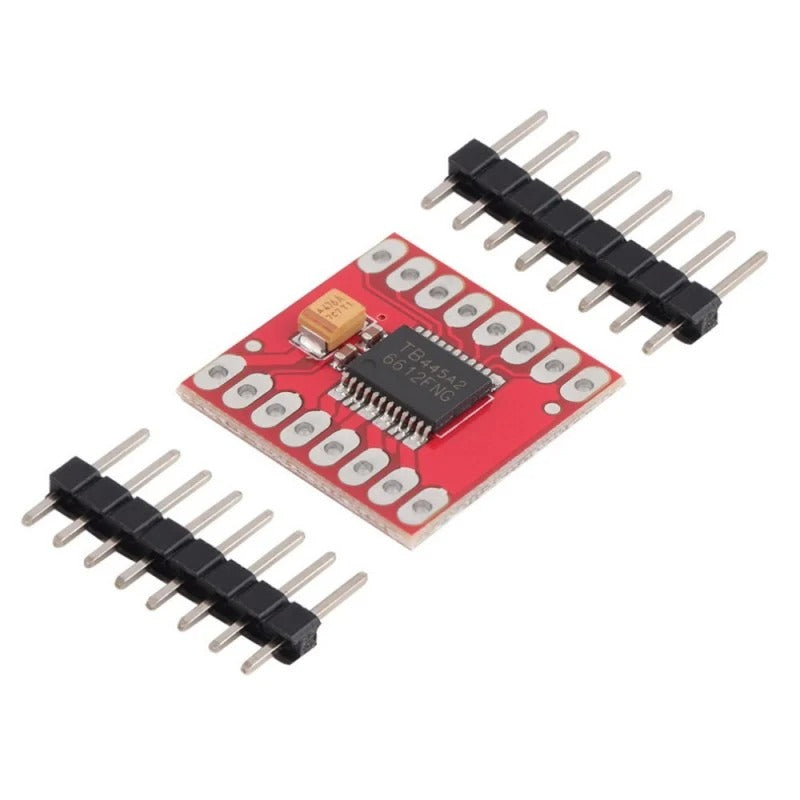

TB6612FNG Dual Motor/Stepper Motor Driver Module
Drive two DC motors or one stepper motor with precision using the TB6612FNG driver module - a compact, efficient MOSFET-based alternative to traditional L298N drivers. Available at The Tech Depot, Bengaluru, with fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Driver IC | Toshiba TB6612FNG |
| Motor Channels | 2 (Dual H-Bridge) |
| Motor Voltage (VM) | 4.5V - 13.5V |
| Logic Voltage (VCC) | 2.7V - 5.5V |
| Continuous Output Current | 1.2A per channel |
| Peak Output Current | 3.2A per channel (pulsed) |
| Control Modes | CW, CCW, Short Brake, Stop |
| PWM Speed Control | Yes - up to 100 kHz |
| Standby Pin | Yes - low-power shutdown mode |
| Output Type | MOSFET H-Bridge (low voltage drop) |
| Built-in Protection | Thermal shutdown, under-voltage lockout |
| Compatible Motors | 2x DC motors or 1x bipolar stepper motor |
| Interface Pins | AIN1, AIN2, PWMA, BIN1, BIN2, PWMB, STBY, VM, VCC, GND |
| Board Dimensions | Approx. 20mm x 20mm (breakout module) |
| Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi, STM32, PIC |
| Operating Temperature | -20 degreesC to +85 degreesC |
| Origin | Original/Authentic Toshiba IC |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- MOSFET-Based Efficiency: Dramatically lower voltage drop and heat generation compared to BJT-based drivers like the L298N, maximizing power delivery to your motors.
- Dual H-Bridge Design: Independently control two DC motors with full directional control (forward, reverse, brake, coast) or drive one bipolar stepper motor.
- 1.2A Continuous / 3.2A Peak Per Channel: Ample current for small-to-medium DC motors, gear motors, and NEMA-style stepper motors in lightweight applications.
- PWM Speed Control Up to 100 kHz: Smooth, precise speed regulation with high-frequency PWM support for quiet, efficient motor operation.
- Wide Voltage Range: Motor supply from 4.5V to 13.5V with separate logic supply (2.7V-5.5V) for clean, flexible integration with 3.3V and 5V microcontrollers.
- Standby Mode: Dedicated STBY pin enables low-power shutdown, ideal for battery-powered robots and portable projects.
- Built-in Protections: Thermal shutdown and under-voltage lockout safeguard the IC and your motors from damage.
- Ultra-Compact Footprint: Tiny breakout board fits easily into space-constrained builds - perfect for mini robots, drones, and wearable mechatronics.
- Simple Digital Interface: Only 3 pins per motor channel (2 direction + 1 PWM) plus standby - straightforward wiring and coding.
Why Choose the TB6612FNG Over the L298N?
- Higher Efficiency: MOSFET output transistors produce minimal heat with near-zero voltage drop - no bulky heatsink needed.
- More Voltage to Your Motors: L298N drops ~2V across its BJTs; the TB6612FNG delivers nearly full supply voltage to motors.
- Smaller & Lighter: Fraction of the L298N module's size, making it the go-to choice for compact robotics and weight-sensitive builds.
- 3.3V Logic Compatible: Works natively with ESP32, Raspberry Pi Pico, and other 3.3V boards without level shifters.
- Lower Power Waste: Ideal for battery-powered projects where every milliwatt counts.
Pin Configuration & Wiring Guide
| Pin | Function | Connection |
| VM | Motor power supply | 4.5V - 13.5V battery/supply |
| VCC | Logic power supply | 3.3V or 5V from microcontroller |
| GND |
