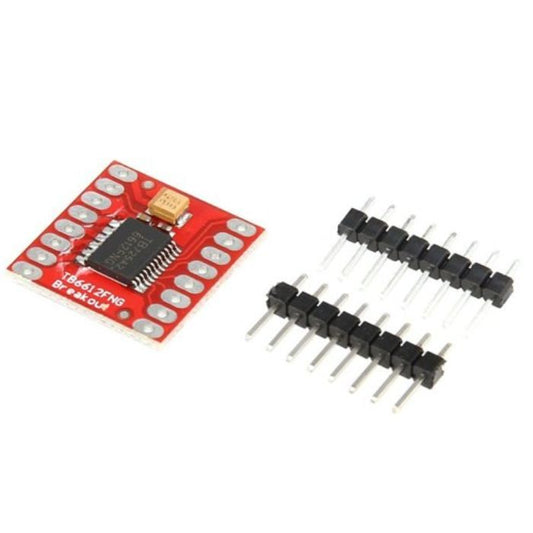

TB6612FNG Dual DC Motor Driver
TB6612FNG Dual DC Motor Driver
TB6612FNG Dual DC Motor Driver
Drive two DC motors or one stepper motor with precision using the TB6612FNG - a compact, efficient MOSFET-based H-bridge driver that outperforms the classic L298N with lower heat, smaller size, and no need for bulky heatsinks. Ideal for robotics, smart cars, and automated systems. Available at The Tech Depot, Bengaluru with fast shipping and full technical support.
Specifications
| Driver IC | Toshiba TB6612FNG |
| Motor Channels | 2 (Dual H-Bridge) |
| Motor Voltage (VM) | 4.5V - 13.5V |
| Logic Voltage (VCC) | 2.7V - 5.5V |
| Continuous Output Current | 1.2A per channel |
| Peak Output Current | 3.2A per channel (pulsed) |
| Driver Type | MOSFET H-Bridge (low voltage drop) |
| Control Inputs | IN1, IN2, PWM per channel + STBY (standby) |
| PWM Frequency | Up to 100 kHz |
| Built-in Protection | Thermal shutdown, low-voltage detection, overcurrent |
| Motor Control Modes | CW, CCW, Short Brake, Stop |
| Quiescent Current | ~5 uA in standby mode |
| Board Dimensions | ~20mm x 20mm (breakout module) |
| Operating Temperature | -20 degreesC to +85 degreesC |
| Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi, STM32, PIC |
| Origin | Original Toshiba IC / Authentic Module |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Pin Configuration
| VM | Motor power supply (4.5V-13.5V) |
| VCC | Logic power supply (2.7V-5.5V) |
| GND | Common ground |
| AIN1 / AIN2 | Direction control for Motor A |
| BIN1 / BIN2 | Direction control for Motor B |
| PWMA | Speed control (PWM) for Motor A |
| PWMB | Speed control (PWM) for Motor B |
| AO1 / AO2 | Motor A output terminals |
| BO1 / BO2 | Motor B output terminals |
| STBY | Standby pin (HIGH to enable, LOW for sleep) |
Why Choose the TB6612FNG?
- Superior to L298N: MOSFET-based design means virtually no voltage drop, dramatically less heat, and no heatsink required - more power reaches your motors
- Ultra-Compact Footprint: Tiny breakout board fits easily in space-constrained robots, drones, and wearable projects where the bulky L298N simply won't fit
- Dual Channel Independence: Control two DC motors with individual speed and direction, or drive one bipolar stepper motor with full step control
- Energy Efficient: Standby mode draws only ~5 uA - critical for battery-powered robots and portable automation projects
- High-Speed PWM Support: Up to 100 kHz PWM frequency enables ultra-smooth speed control with minimal audible motor noise
- Comprehensive Protection: Built-in thermal shutdown, overcurrent protection, and low-voltage detection safeguard your circuit and motors
- Universal Compatibility: Works seamlessly with 3.3V and 5V logic - Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and more
- Breadboard Friendly: Standard pin header spacing makes prototyping quick and hassle-free
- 100% Authentic: Genuine Toshiba TB6612FNG IC sourced from authorized distributors with full traceability
- Fast Shipping from Bengaluru: 1-5 day shipping, 7-8 day delivery across India with same-day dispatch in Bengaluru
TB6612FNG vs L298N Comparison
| Feature | TB6612FNG | L298N |
| Driver Technology | MOSFET H-Bridge | Bipolar Junction Transistor |
| Voltage Drop |
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
