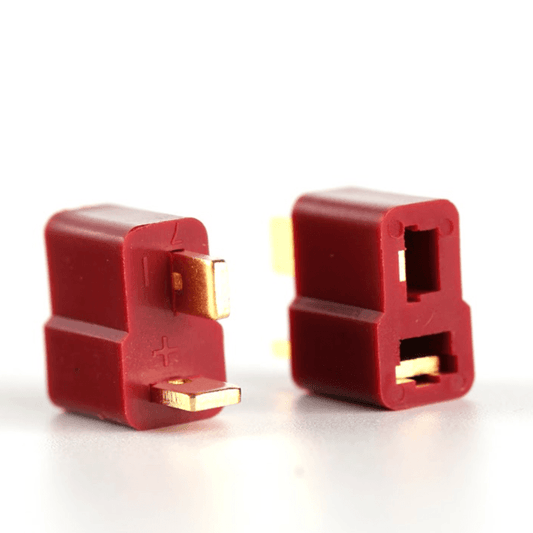

T Plug Deans Connector for LiPo Battery - Male and Female Pair
High-current T Plug Deans connectors from The Tech Depot, Bengaluru. This matched male and female pair delivers reliable, low-resistance connections for LiPo batteries, ESCs, and high-power RC applications. Fast shipping, 7-day warranty on manufacturing defects, and dedicated support.
Specifications
| Connector Type | T Plug / Deans Style |
| Package Contents | 1 x Male Connector + 1 x Female Connector (pair) |
| Continuous Current Rating | Up to 40A |
| Burst Current Rating | Up to 60A (short duration) |
| Voltage Rating | Up to 600V DC |
| Contact Material | Gold-Plated Copper Alloy |
| Housing Material | High-Temperature Nylon (PA66) |
| Number of Pins | 2 per connector (positive & negative) |
| Wire Gauge Compatibility | 12 AWG - 16 AWG (solder connection) |
| Contact Resistance | <= 0.5 mOhm |
| Operating Temperature | 20 degreesC to +120 degreesC |
| Polarized Design | Yes - prevents reverse polarity insertion |
| Mating Style | Friction-fit with positive locking feel |
| Connector Dimensions (approx.) | 18 mm x 14 mm x 8 mm per plug |
| Weight | ~6 g per pair |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Product Description
The T Plug Deans connector is the go-to standard for RC hobbyists, drone builders, and anyone working with lithium polymer batteries that demand high-current, low-loss power delivery. This male-and-female pair features gold-plated copper contacts that minimize resistance and heat buildup, ensuring maximum energy transfer from your LiPo pack to your motor, ESC, or charger.
The compact, flat-profile design keeps wiring neat and reduces drag in airframes, while the keyed polarized housing makes it physically impossible to connect the battery in reverse-protecting your electronics from costly mistakes. The high-temperature nylon body withstands the heat generated during soldering and sustained high-current operation without warping or melting.
Each connector accepts 12 AWG to 16 AWG silicone wire via solder cups, giving you flexibility across a wide range of power systems. The friction-fit mating mechanism provides a secure connection that won't vibrate loose during flight or off-road driving, yet disconnects cleanly when you need to swap batteries.
Key Features
- High-Current Capability: Rated for 40A continuous and 60A burst, suitable for powerful brushless motor setups and multi-cell LiPo packs.
- Gold-Plated Contacts: Minimizes contact resistance and prevents oxidation for consistent, long-lasting conductivity.
- Reverse-Polarity Protection: Keyed housing physically prevents incorrect insertion, safeguarding ESCs, flight controllers, and batteries.
- Low-Profile Design: Compact flat form factor fits inside tight fuselages, car chassis, and enclosures without adding bulk.
- Heat-Resistant Nylon Housing: PA66 body withstands soldering temperatures and sustained high-current thermal loads up to 120 degreesC.
- Secure Friction-Fit Connection: Stays firmly mated under vibration and G-forces; disconnects with deliberate pull force.
- Wide Wire Compatibility: Solder cups accommodate 12 AWG to 16 AWG silicone wire for flexible integration.
- Universal Compatibility: Industry-standard T Plug footprint works with most RC chargers, ESCs, battery harnesses, and power distribution boards.
- Lightweight: Only ~6 grams per pair-adds negligible weight to weight-sensitive builds like racing drones and micro aircraft.
- Matched Pair Included: One male and one female connector in every pack-ready for immediate battery-to-device wiring.
Why Choose This?
- 100% authentic connectors sourced directly from trusted suppliers
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse to most of India
- Expert technical support for soldering tips, wire sizing, and system integration
- Gold-plated contacts deliver measurably lower voltage drop than standard tin-plated connectors
- Ideal upgrade from bullet connectors, Tamiya plugs, or JST connectors for high-power applications
Project Ideas
- RC Cars & Trucks: Wire your LiPo battery to the ESC with a secure, high-current connection that handles aggressive throttle inputs and sustained
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
