Sub-Miniature Toggle Switch (Pack of 5)
Sub-Miniature Toggle Switch (Pack of 5)
Sub-Miniature Toggle Switch - Pack of 5

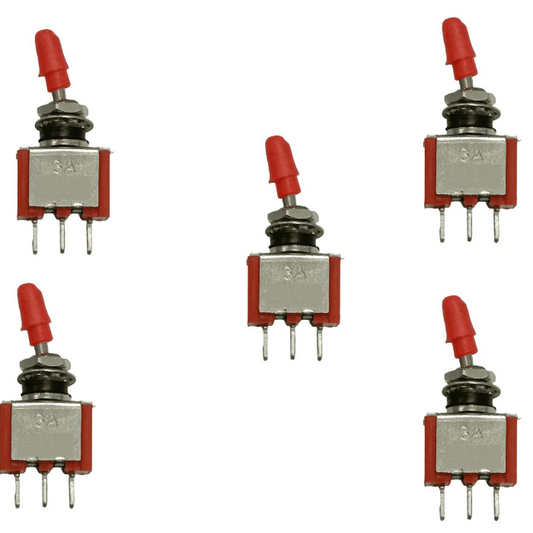

Get a convenient pack of 5 sub-miniature toggle switches, ideal for compact electronic projects where space is at a premium. These tiny yet robust SPDT toggle switches deliver reliable ON-OFF or ON-ON switching action in a fraction of the footprint of standard toggles. Sourced from trusted manufacturers and available exclusively at The Tech Depot, Bengaluru, with fast shipping and full technical support.
Specifications
| Type | Sub-Miniature Toggle Switch (SPDT) |
| Quantity | 5 Pieces per Pack |
| Switching Action | ON-OFF / ON-ON (2-position) |
| Contact Rating | 3A @ 125V AC / 1A @ 250V AC |
| Contact Resistance | <= 20 mOhm |
| Insulation Resistance | >= 100 MOhm |
| Number of Pins | 3 (Common, NO, NC) |
| Mounting Style | Panel Mount (through-hole, threaded bushing) |
| Mounting Hole Diameter | ~5 mm (M5 thread) |
| Body Dimensions (approx.) | 8 x 4 x 7 mm (L x W x H, excluding toggle lever) |
| Toggle Lever Length | ~7 mm |
| Operating Temperature | 20 degreesC to +85 degreesC |
| Mechanical Life | >= 10,000 cycles |
| Material - Body | High-temperature thermoplastic with metal housing |
| Material - Contacts | Silver-plated copper alloy |
| Material - Toggle Lever | Nickel-plated brass |
| Weight (per switch) | ~2 g |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Ultra-Compact Form Factor: Significantly smaller than standard or miniature toggles, making them perfect for tight PCB layouts, hand-held devices, and micro enclosures.
- Positive Tactile Feedback: Crisp, satisfying click at each position ensures the operator always knows the switch state without visual confirmation.
- Silver-Plated Contacts: Low contact resistance and excellent conductivity for clean, reliable signal and power switching.
- Durable Metal Housing: The Tech Depot construction withstands vibration, mechanical stress, and repeated use well beyond 10,000 cycles.
- Panel-Mount Ready: Threaded bushing with included hex nut allows quick, secure installation in panels, project boxes, and custom enclosures.
- Versatile 3-Pin SPDT Configuration: Use as a simple ON-OFF switch or wire as an ON-ON changeover switch for signal routing and mode selection.
- Wide Operating Temperature: Performs reliably from 20 degreesC to +85 degreesC, suitable for both indoor lab work and field-deployed equipment.
- Value Pack of 5: Stock up for multiple projects, prototypes, or classroom kits at a cost-effective per-unit price.
Why Choose This?
- 100% authentic switches sourced from trusted, authorized suppliers
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse to most of India
- Expert technical support included - wiring guidance, datasheet help, and project advice
- Ideal balance of size, current rating, and mechanical durability for hobby and professional use
- Pack of 5 ensures you always have spares on hand
How It Works
A sub-miniature toggle switch is a manually actuated electromechanical device. Flipping the metal lever rocks an internal spring-loaded contact mechanism between two stable positions. In the SPDT (Single Pole, Double Throw) configuration, the common terminal connects to one of two output terminals depending on the lever position. This allows you to switch a single circuit ON or OFF, or alternate between two separate circuits. The spring-loaded snap-action mechanism ensures fast contact transition, minimising arcing and contact wear for a long, reliable service life.
Pin Configuration
| Pin | Label | Function |
| 1 (Top) | Terminal A (NO) | Connected to Common when toggle is flipped UP |
| 2 (Centre) | Common (C) | Input / common terminal - always connected to one output |
| 3 (Bottom) | Terminal B (NC) | Connected to Common when toggle is flipped DOWN |
