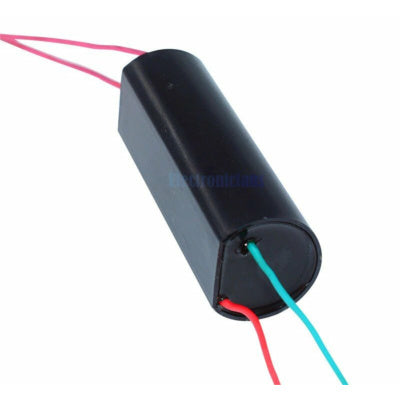

Step Up High Voltage Ignition Coil Generator Module 50 KV, 3 V - 6V
Step Up High Voltage Ignition Coil Generator Module 50 KV, 3 V - 6V
Step Up High Voltage Ignition Coil Generator Module 50 KV, 3 V - 6V
The Step Up High Voltage Ignition Coil Generator Module is a compact step-up transformer module designed to generate high voltage outputs of up to 50 kV from low-voltage DC inputs ranging from 3V to 6V. Electronics engineers, hobbyists, and researchers use this module extensively in high-voltage experimentation, plasma generation, Tesla coil construction, and ignition system prototyping. This module solves the critical challenge of obtaining high-voltage outputs from standard battery-powered systems without requiring bulky transformers or complex power supply circuits.
Product Overview
The Step Up High Voltage Ignition Coil Generator Module operates on the principle of electromagnetic induction and rapid magnetic field collapse. When a low-voltage DC signal is applied to the primary coil, it generates a magnetic field that collapses suddenly, inducing a high-voltage spike across the secondary coil through Faraday's law of electromagnetic induction. The module incorporates a high-frequency oscillator circuit that rapidly switches the primary coil on and off, creating continuous high-voltage pulses at the output. This design enables efficient voltage multiplication from just 3-6V input to produce 50 kV output, making it ideal for compact, portable applications where space and power consumption are critical constraints.
What distinguishes this ignition coil module is its robust construction with quality insulation materials, optimized coil winding ratios, and integrated protection circuitry to prevent damage from transient spikes. The module features a compact form factor suitable for breadboard integration and DIY electronics projects, while maintaining the electrical safety standards required for high-voltage applications. The 50 kV output capability makes it powerful enough for plasma channel creation, high-voltage arcing demonstrations, and advanced ignition system testing, yet the low input voltage requirement ensures compatibility with standard battery sources and microcontroller-based triggering circuits.
Key Specifications
| Specification | Details |
| Product Type | Step Up High Voltage Ignition Coil Generator Module |
| Input Voltage Range | 3V to 6V DC |
| Output Voltage | Up to 50 kV |
| Voltage Multiplication Ratio | Approximately 8000:1 to 16000:1 |
| Output Type | High Frequency Pulsed DC |
| Operating Frequency | Typically 300 Hz to 1 kHz |
| Maximum Output Current | 10 to 20 mA at peak |
| Module Dimensions | Compact form factor suitable for breadboards |
| Insulation Rating | High voltage rated dielectric material |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
Key Features
- Ultra-High Voltage Output: Generates up to 50 kV from minimal 3-6V input, enabling high-voltage experiments without large power supplies
- Efficient Step-Up Conversion: Advanced coil design with optimized turns ratio delivers maximum voltage multiplication with minimal input current draw
- Wide Input Voltage Range: Compatible with 3V, 4.5V, and 6V battery sources, allowing flexible power source selection for different applications
- Compact Module Design: Breadboard-compatible form factor integrates seamlessly into DIY projects and experimental setups without requiring external enclosures
- High-Frequency Oscillation: Internal switching circuit operates at 300-1000 Hz, producing continuous high-voltage pulses suitable for plasma and arc generation
- Robust Insulation: Premium dielectric materials protect against electrical breakdown and ensure safe operation in high-voltage environments
Applications and Use Cases
- Plasma Channel Generation: Create visible plasma filaments and ionized air channels for physics demonstrations and educational experiments in high-voltage phenomena
- Tesla Coil Construction: Serve as the primary ignition stage in Tesla coil projects, providing the initial high-voltage pulse to excite resonant LC circuits
- Automotive Ignition System Prototyping: Test and develop advanced spark plug ignition circuits with controlled high-voltage pulse generation and timing
- High-Voltage Arc and Spark Demonstrations: Generate impressive electrical arcs and sparks for STEM education, science fair projects, and laboratory demonstrations
- Electrostatic Precipitator Testing: Prototype air purification systems using electrostatic particle collection with precisely controlled high-voltage fields
- Ozone Generation: Drive corona discharge tubes for experimental ozone production and air treatment applications
How to Use
To operate the Step Up High Voltage Ignition Coil Generator Module, connect the positive and negative input terminals to your DC power source within the 3-6V range. Most modules feature two input pins for direct battery connection or regulated power supply output. Ensure secure connections to prevent arcing at the input terminals. The high-voltage output typically appears on two output terminals or an output coil, which should be properly insulated and positioned to prevent accidental contact. Always use appropriate high-voltage safety precautions including insulated tools, proper grounding, and protective barriers around the output terminals.
For optimal performance, maintain a stable input voltage within the specified 3-6V range, as fluctuations may reduce output voltage stability. If using with microcontroller-based triggering, ensure the control signal frequency matches the module's internal oscillation characteristics for maximum efficiency. The module generates continuous high-voltage pulses, so connect your load circuit carefully with proper impedance matching. For plasma or arc applications, maintain adequate spacing between output terminals to prevent uncontrolled arcing. Allow the module to cool between extended operating sessions, as continuous high-frequency operation generates internal heat.
Frequently Asked Questions
What is the actual output voltage I can expect from this 50 kV module?
The 50 kV specification represents the theoretical maximum output voltage under ideal conditions with minimal load. In practical applications, you can typically achieve 30-45 kV depending on input voltage stability, load impedance, and environmental conditions. The output voltage is inversely proportional to the output current drawn, so light loads produce higher voltages while heavy loads reduce the output voltage. Testing with an appropriate high-voltage probe is recommended to verify actual output for your specific application.
Can I use this module with a 12V power supply instead of 3-6V?
No, using voltages above the specified 6V maximum input can damage the internal oscillator circuit and transformer windings. The module is specifically designed for 3-6V operation, and exceeding this range may cause component failure, reduced lifespan, or safety hazards. If you have a 12V source, use a voltage regulator or buck converter to step down the voltage to the 3-6V range before connecting to the module.
How much current does this module draw from the input power source?
Input current consumption typically ranges from 500 mA to 2 A depending on the output load and input voltage. At no-load conditions, the module draws approximately 300-500 mA to power the internal oscillator circuit. When generating high-voltage arcs or driving plasma channels, input current increases significantly to support the energy transfer to the output. Always ensure your power source can supply sufficient current; undersized power supplies may cause voltage sag and reduced output performance.
Is this module safe to touch or handle during operation?
No, the output terminals generate lethal high-voltage levels up to 50 kV and must never be touched during operation. The module itself can be safely handled by the non-conductive housing, but the output terminals require proper insulation and protective barriers. Always disconnect the input power before servicing or modifying the circuit. Use appropriate personal protective equipment including insulated gloves when working near the output terminals, and maintain a safe distance from any arcs or plasma generation.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
