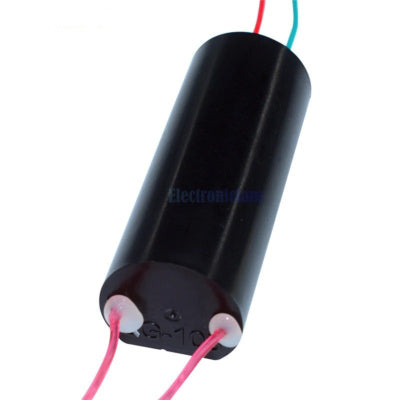

The Step Up High Voltage Ignition Coil Generator Module is a compact DC-to-DC converter that generates 1000 KV peak output voltage from low input voltage sources of 3.7V to 7.4V, making it ideal for ignition systems, plasma generation, and high-voltage experimentation. This module is widely used by electronics engineers, hobbyists, and researchers who require reliable high-voltage generation for ignition circuits, arc lighters, and Tesla coil applications. It solves the critical challenge of converting low-voltage battery power into extremely high voltages needed for spark generation and ionization without requiring bulky transformer-based solutions.
Product Overview
This ignition coil generator module employs a step-up transformer topology combined with a high-frequency oscillator circuit to achieve voltage multiplication. The module operates by rapidly switching the input DC voltage through a primary coil, inducing a high-voltage output in the secondary winding through electromagnetic induction. The internal oscillator typically operates at frequencies between 10-30 kHz, allowing for compact design while maintaining efficient energy transfer. The 1000 KV output specification represents the peak voltage capability, making this module suitable for applications requiring sustained high-voltage arcing and ionization.
What distinguishes this model is its wide input voltage range of 3.7V to 7.4V, accommodating both single lithium-ion cells and dual-cell battery configurations without requiring voltage regulators. The compact PCB design integrates the oscillator, switching transistor, and transformer assembly into a single module, reducing component count and improving reliability. Protection circuits typically include current limiting and thermal management to prevent damage during continuous operation. The module features low quiescent current consumption, making it suitable for battery-powered portable applications.
Key Specifications
| Specification | Details |
| Product Type | Step-Up High Voltage Ignition Coil Generator Module |
| Output Voltage | 1000 KV Peak |
| Input Voltage Range | 3.7V to 7.4V DC |
| Oscillation Frequency | 10-30 kHz |
| Output Current | Microampere range typical |
| Module Dimensions | Compact PCB form factor |
| Operating Temperature | -10 to +60 degrees Celsius |
| Efficiency | 70-85 percent typical |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
Key Features
- Ultra-High Voltage Output of 1000 KV enables spark generation and plasma ionization for ignition and experimental applications
- Wide Input Voltage Range from 3.7V to 7.4V eliminates need for external voltage regulation and supports single to dual lithium cell configurations
- Compact Integrated Design combines oscillator, switching circuit, and transformer on single PCB for space-efficient integration
- High-Frequency Switching at 10-30 kHz reduces transformer size while maintaining efficient voltage multiplication and energy transfer
- Low Quiescent Current Consumption extends battery life in portable ignition and plasma applications
- Thermal Protection Circuit prevents module damage during extended high-load operation
Applications and Use Cases
- Ignition Systems for small engines, lighters, and spark plug drivers requiring reliable high-voltage pulse generation
- Plasma Generation and Arc Lighters for creating visible plasma channels and sustained arcing effects in educational demonstrations
- Tesla Coil and High-Voltage Experiments for hobbyists and researchers building resonant transformer circuits and electromagnetic experiments
- Electronic Pest Repellent Circuits that generate high-voltage pulses to deter rodents and insects through electric shock
- Electrostatic Precipitator Modules for air purification systems requiring ionization voltage for particle charging
- Neon and Gas Tube Ignition for powering decorative gas discharge tubes and neon sign drivers
How to Use
To operate the Step Up High Voltage Ignition Coil Generator Module, connect your DC power source (3.7V to 7.4V) to the input terminals, observing correct polarity as marked on the PCB. The module will automatically begin oscillating and generating high voltage at the output terminals. For ignition applications, connect the positive output terminal to your spark gap or ignition electrode, and the negative terminal to ground. Ensure adequate spacing between output terminals to prevent arcing within the module itself - typically 5-10mm minimum depending on your application voltage requirements.
When integrating this module into your circuit, use high-voltage rated wiring (minimum 1000V insulation rating) and keep output leads short to minimize capacitive coupling and radiation. If your application requires continuous operation, monitor the module temperature and ensure adequate ventilation to prevent thermal shutdown. For battery-powered applications, use fresh lithium-ion cells to maintain stable voltage output throughout the discharge cycle. Always include a current-limiting resistor in series with your load to protect the module from excessive current draw, and consider adding a capacitive load across the output for smoothed high-voltage generation.
Frequently Asked Questions
What is the maximum continuous current output from this 1000 KV module?
The Step Up High Voltage Ignition Coil Generator Module produces output current in the microampere range, typically 1-10 microamperes at 1000 KV. This is intentional for safety and efficiency in ignition applications. The high voltage combined with very low current prevents dangerous shock hazards while providing sufficient energy for spark generation and ionization. For applications requiring higher current, multiple modules can be connected in parallel configuration.
Can I use this module with voltages outside the 3.7V to 7.4V range?
Operating outside the specified 3.7V to 7.4V input range can damage the internal oscillator circuit and switching transistor. Voltages below 3.7V will not provide sufficient energy for proper oscillation, while voltages above 7.4V exceed the component ratings and may cause thermal runaway. If you need to use different voltage sources, employ a voltage regulator to condition your input to the specified range.
How long can I operate this module continuously without damage?
The module is designed for continuous operation within its thermal limits, typically maintaining safe operation for extended periods when properly ventilated. However, extended high-load operation may trigger thermal protection circuits that temporarily disable output. For maximum lifespan, allow brief cooling periods every 30-60 minutes of continuous operation, and ensure the module is mounted in an enclosure with adequate airflow. The internal thermal protection will automatically reset once the module cools below threshold temperature.
Is this module safe to handle while powered?
The output of this module generates 1000 KV at microampere levels, which can deliver a painful shock but is generally not lethal due to the extremely low current. However, you should always treat the output terminals with extreme caution and never touch them while powered. Wear insulated gloves when handling, keep the module away from flammable materials, and ensure all connections are secure before powering on. The high voltage can arc across gaps and cause burns, so maintain proper spacing and use appropriate high-voltage rated components.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
