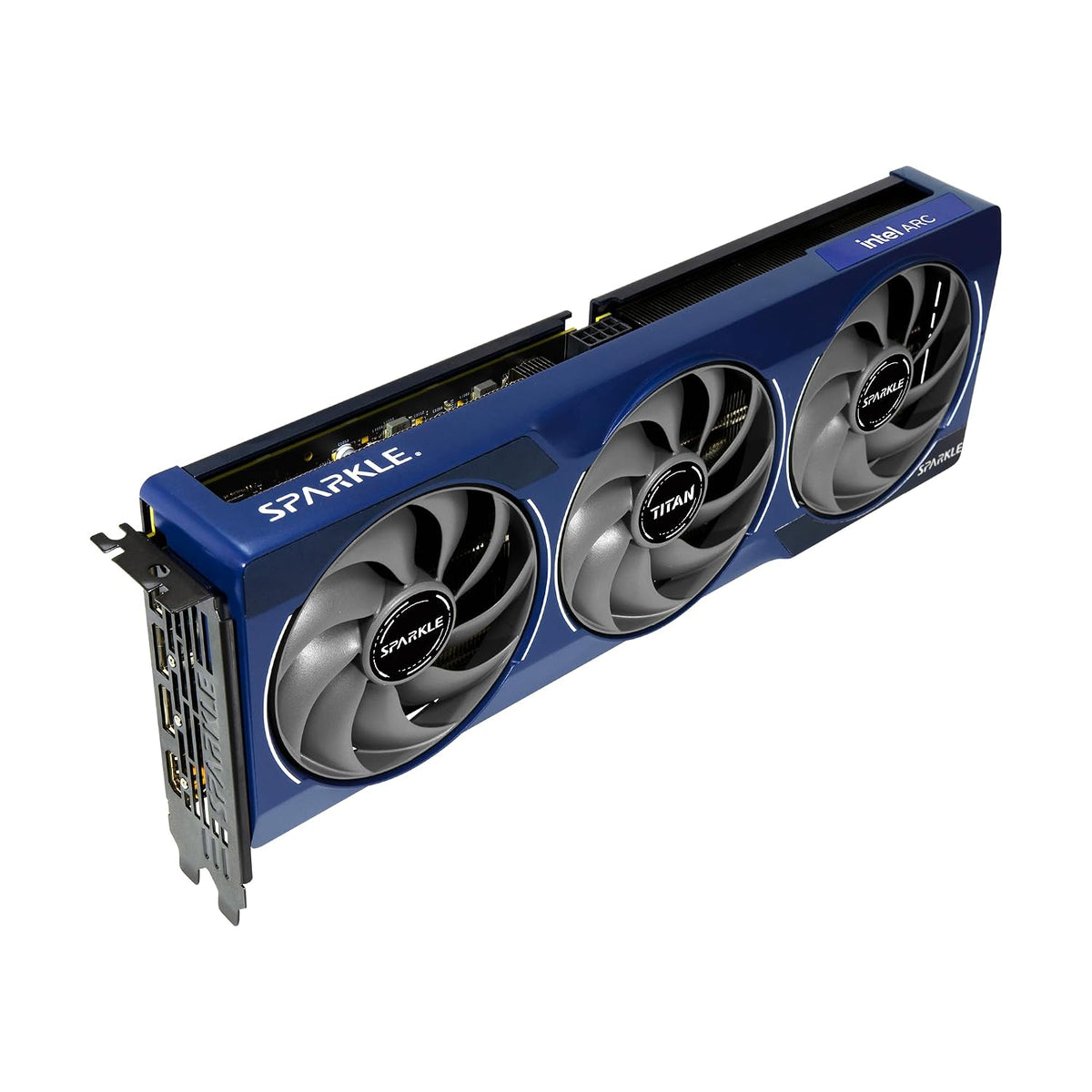

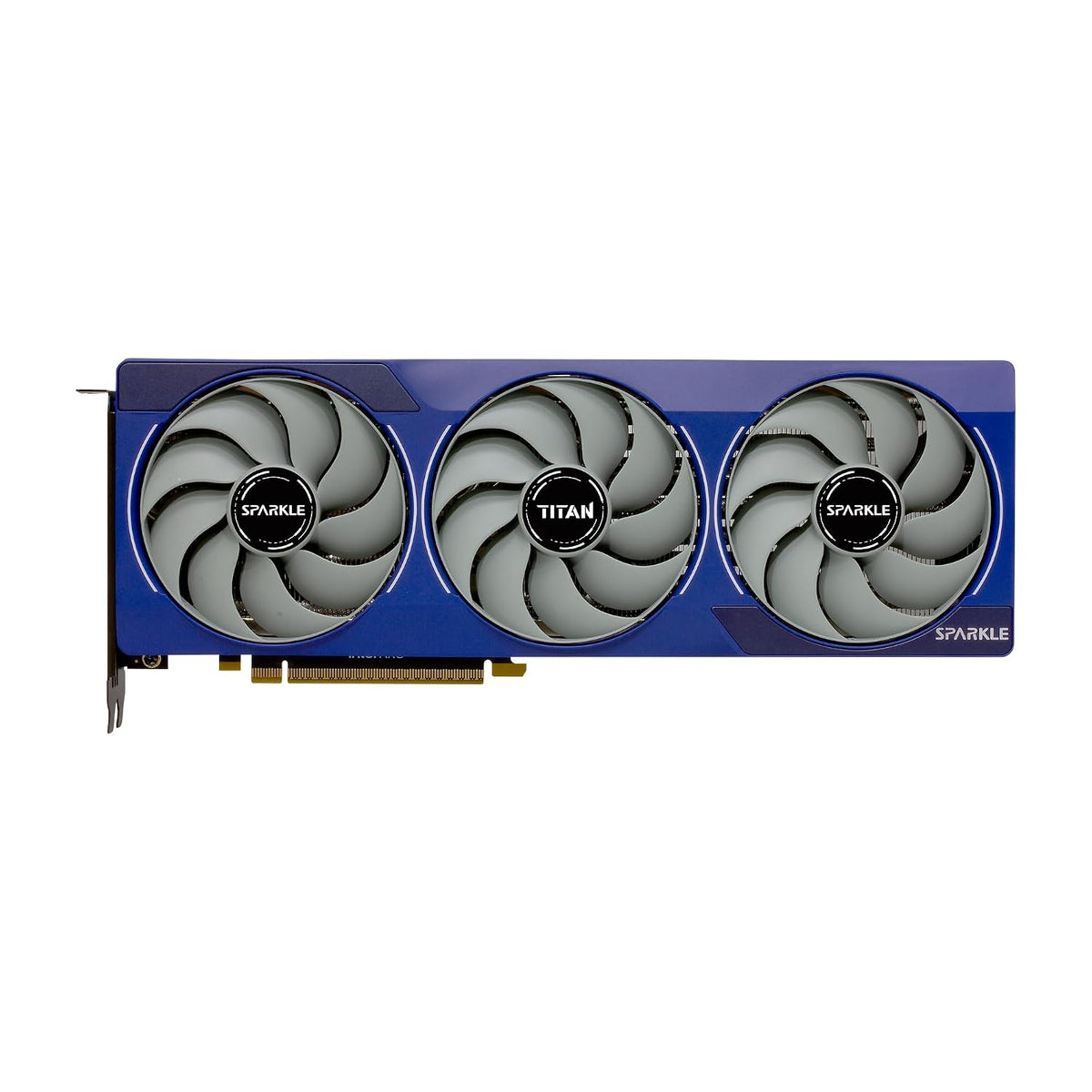

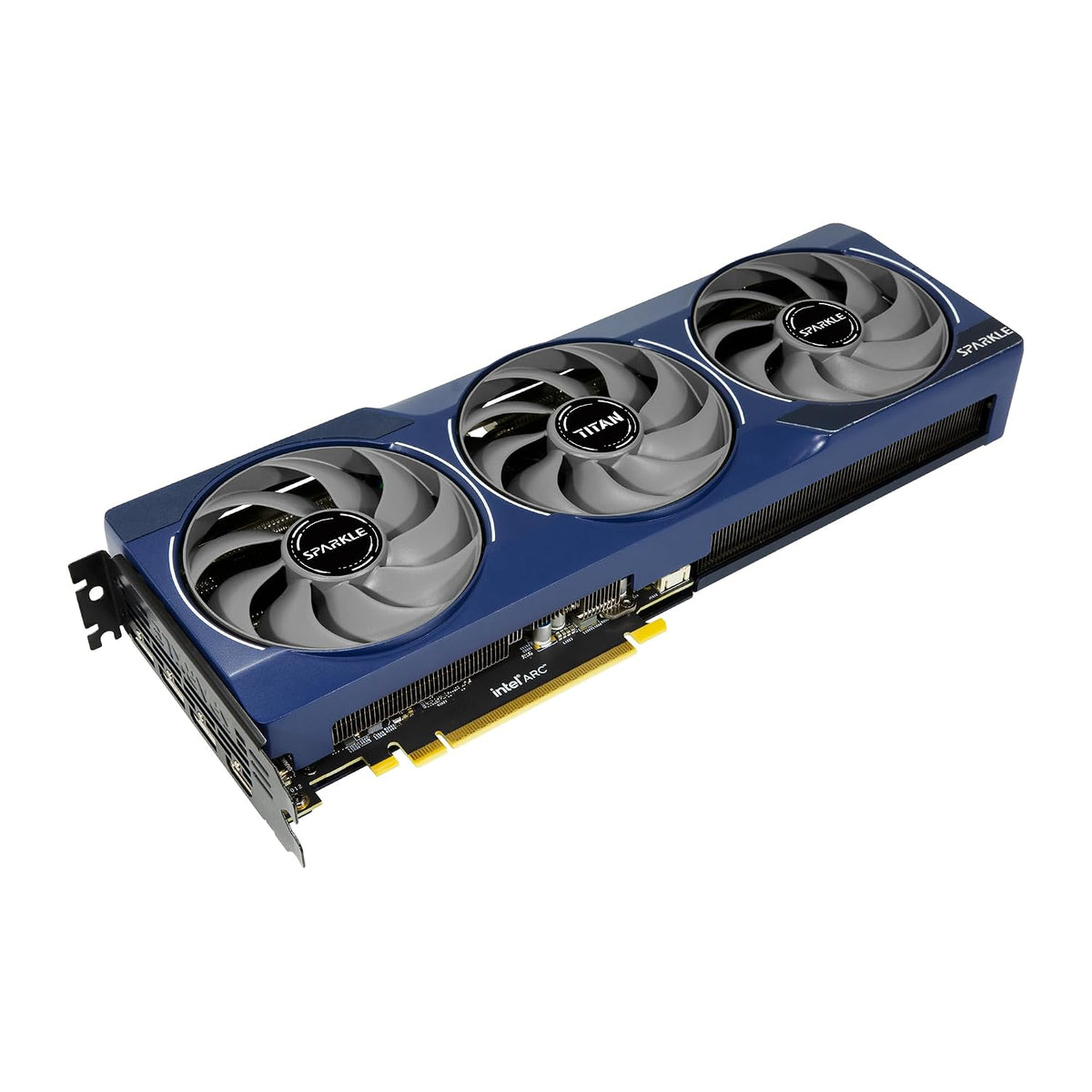

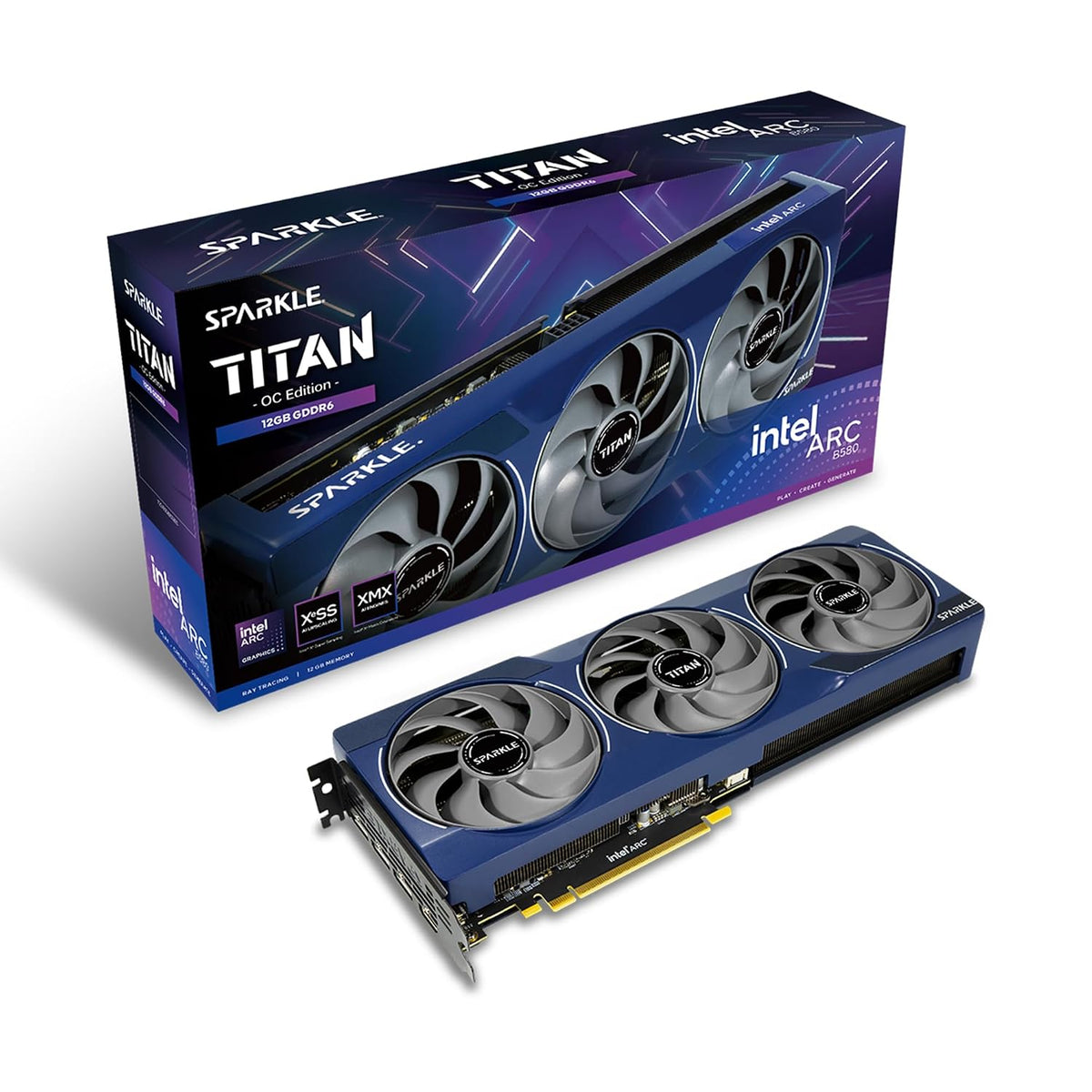

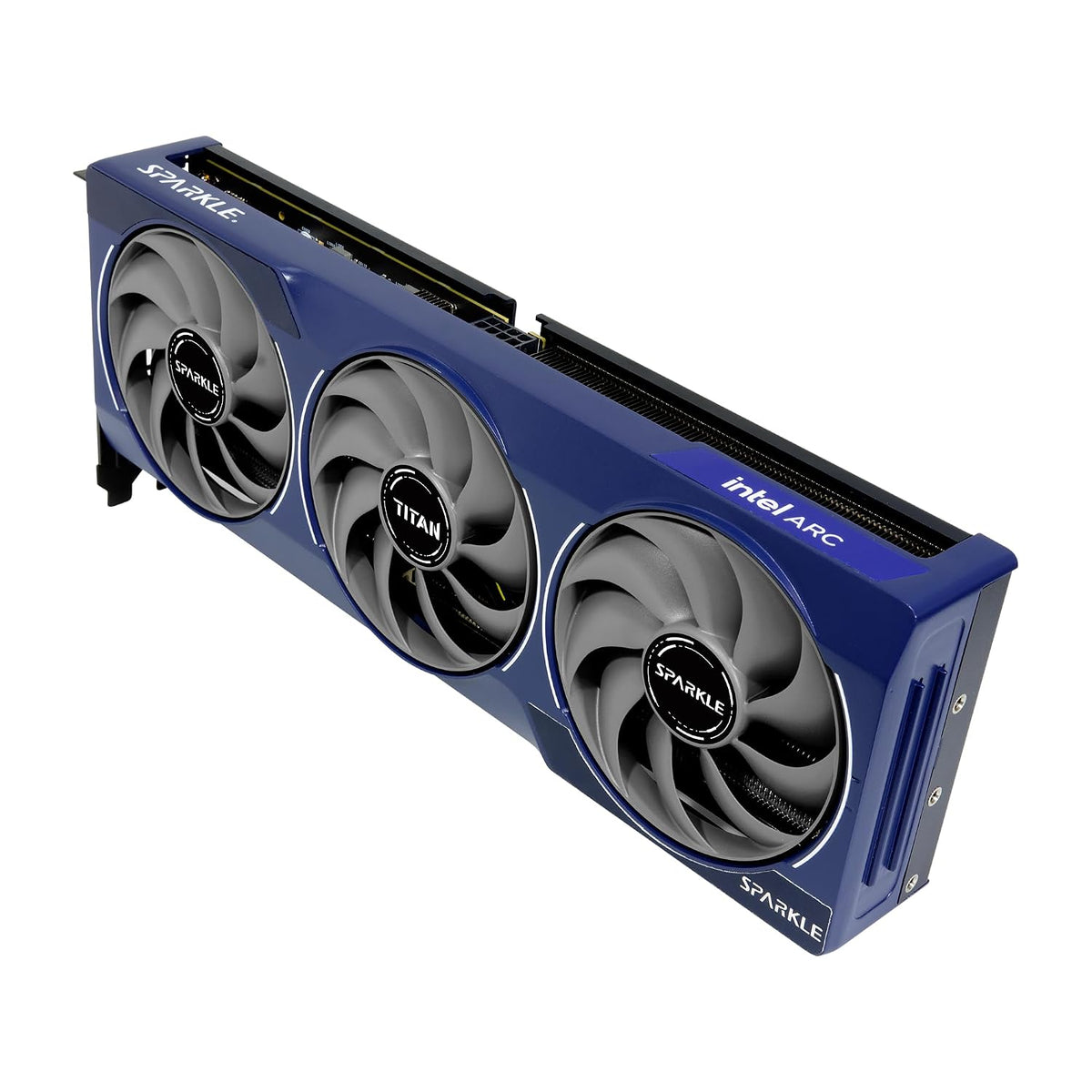

Sparkle Intel Arc B580 Titan OC 12GB GDDR6 Graphics Card
Sparkle Intel Arc B580 Titan OC 12GB GDDR6 Graphics Card
Shipping calculated at checkout.
Buy Sparkle Intel Arc B580 Titan OC 12GB GDDR6 Graphics Card Online in India
Buy the Sparkle Intel Arc B580 Titan OC 12GB GDDR6 Graphics Card online at Tech Depot India with secure Razorpay checkout.
The Sparkle Intel Arc B580 Titan OC 12GB GDDR6 Graphics Card (SB580T-12GOC) is a tri-fan, 2.2-slot card built on Intel's Xe2 architecture with XeSS AI upscaling and ray tracing. If you are shopping for an Intel Arc B580 12GB graphics card, the Titan OC offers a 2740 MHz boost clock, 20 Xe-cores, 12GB of GDDR6 memory on a 192-bit bus, and TORN Cooling 2.0 with a metal backplate.
Key Specifications
| Brand | Sparkle |
| GPU | Intel Arc B580 |
| Model | TITAN OC (SB580T-12GOC) |
| Xe-cores / ray tracing units | 20 / 20 |
| XMX engines | 160 |
| Boost clock | 2740 MHz |
| Memory | 12GB GDDR6 |
| Memory bus | 192-bit |
| Memory bandwidth | 456 GB/s |
| Interface | PCI Express 4.0 x8 |

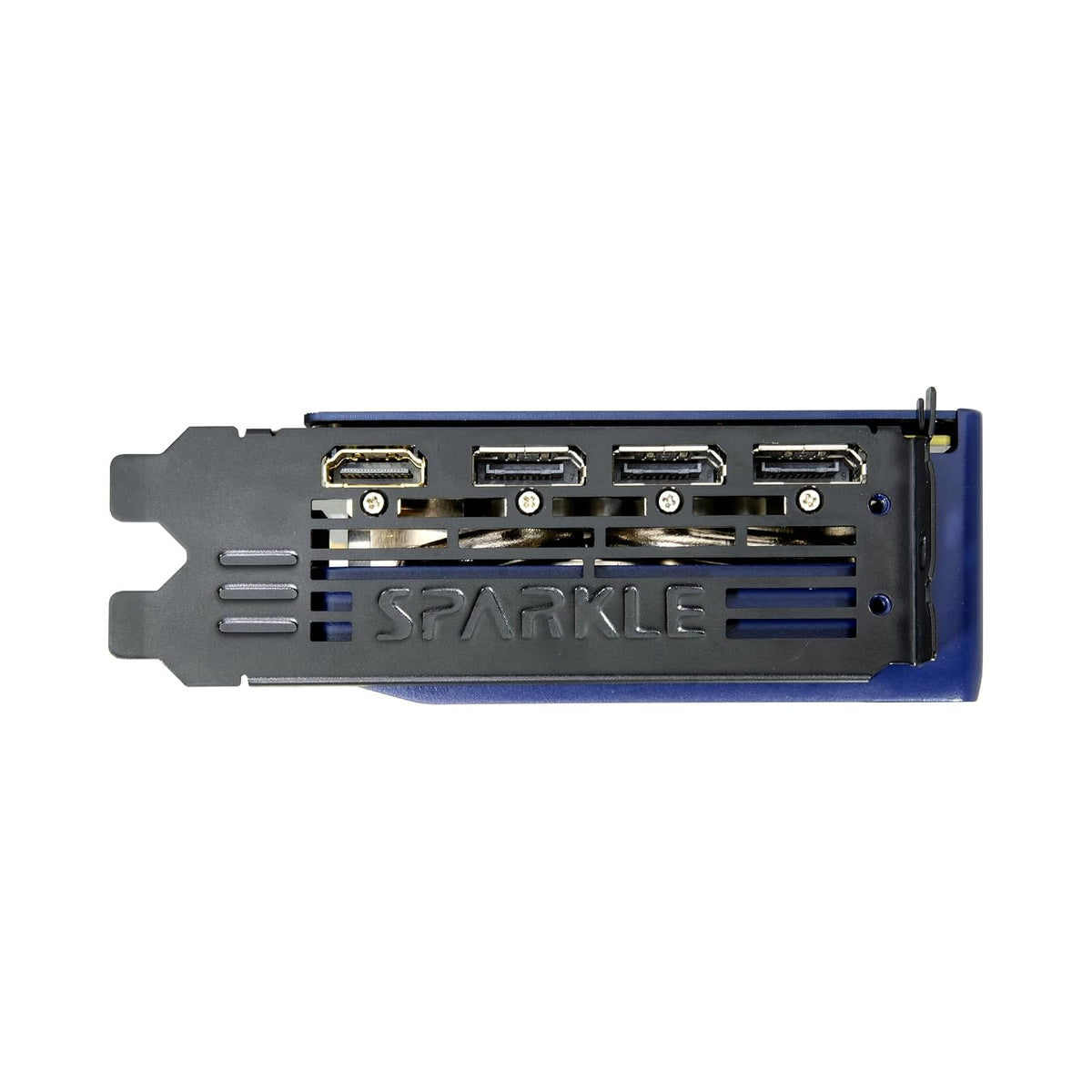

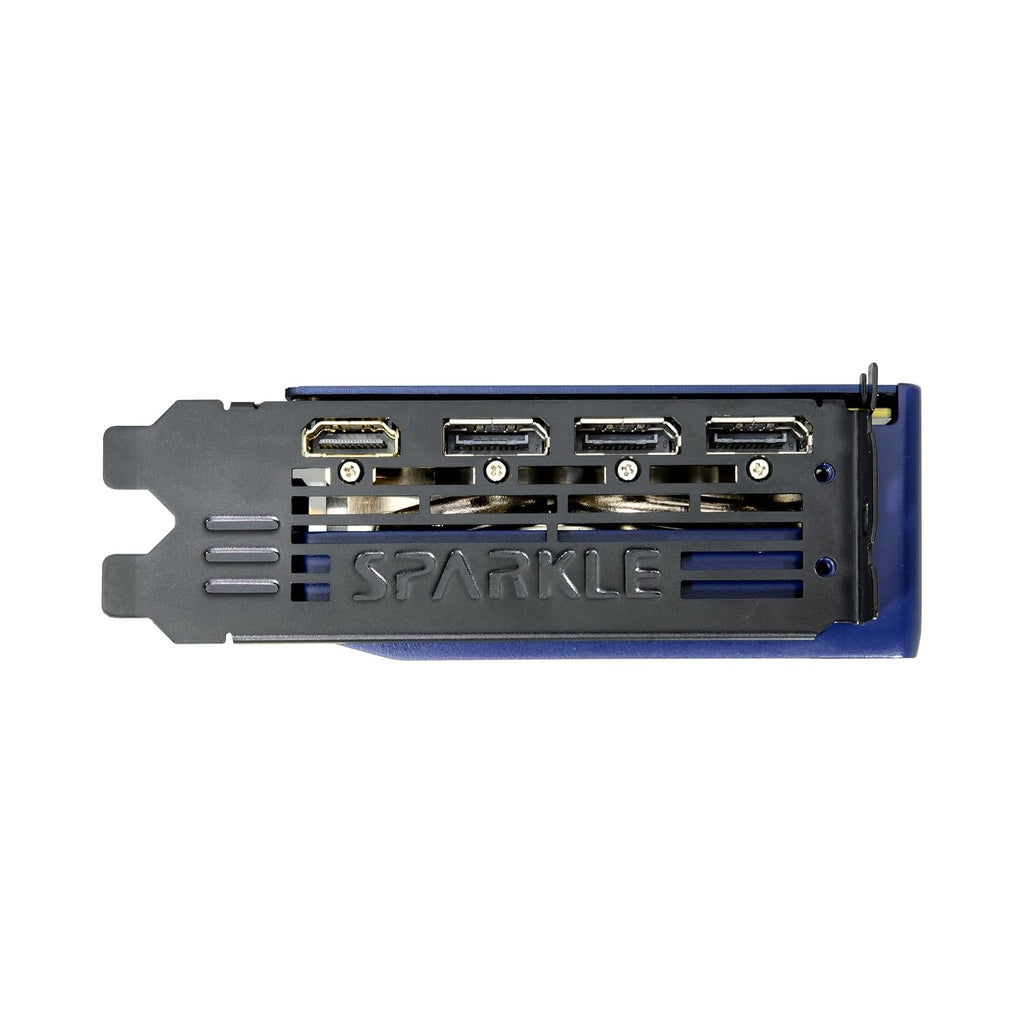

| Outputs | 3x DisplayPort 2.1, 1x HDMI 2.1 |
| Maximum resolution | HDMI 2.1 up to 7680 x 4320 at 120Hz; DisplayPort 2.1 up to 7680 x 4320 at 60Hz |
| Power connector | 1x 8-pin PCIe |
| Board power (TBP) | 200W |
| Recommended power supply | 600W or greater |
| Cooling | TORN Cooling 2.0 with three axial fans and metal backplate |
| Lighting | Blue breathing light |
| Card size | 315 x 117 x 44 mm (2.2 slot) |
| Product type | Graphics card (GPU) |
Compatibility
Needs a PCIe-compliant motherboard with a free x16 slot, and a 10th Gen Intel Core or AMD Ryzen 3000 series processor or newer with Resizable BAR (Smart Access Memory) support. Check that your cabinet has room for a 315 x 117 x 44 mm, 2.2-slot card, and that your power supply is rated 600W or more with one 8-pin PCIe connector.
Pairs Well With
- AMD Ryzen 9 3900X Desktop Processor
- Intel Core i7-10700F 10th Gen Desktop Processor
- 1TB NVMe M.2 2280 SSD
- Browse all Graphics Cards
Frequently Asked Questions
Is the Intel Arc B580 12GB good for gaming?
Yes. The Arc B580 Titan OC pairs 12GB of GDDR6 memory with 20 Xe-cores, hardware ray tracing and XeSS AI upscaling for high-resolution gaming.
What power supply do I need for the Sparkle Arc B580 Titan OC?
Sparkle lists a 600W or greater power supply with one 8-pin PCIe power connector.
Will it fit my motherboard?
Yes, if your motherboard has a free PCIe x16 slot and your system supports Resizable BAR, which Intel Arc cards need. The card uses PCI Express 4.0 x8 and is 315 mm long in a 2.2-slot design, so confirm cabinet clearance.
How much video memory does it have?
It has 12GB of GDDR6 memory on a 192-bit bus with 456 GB/s of memory bandwidth.
