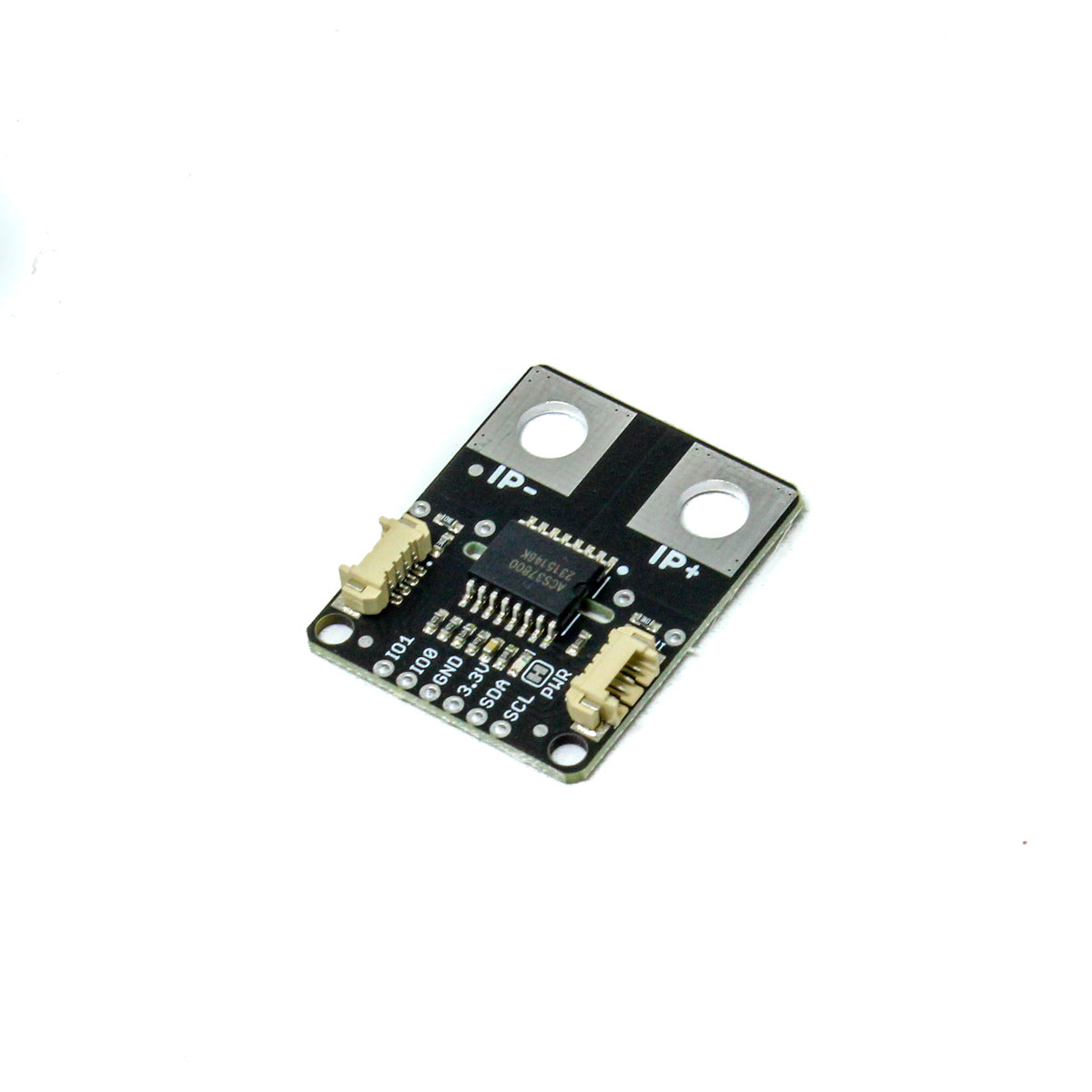

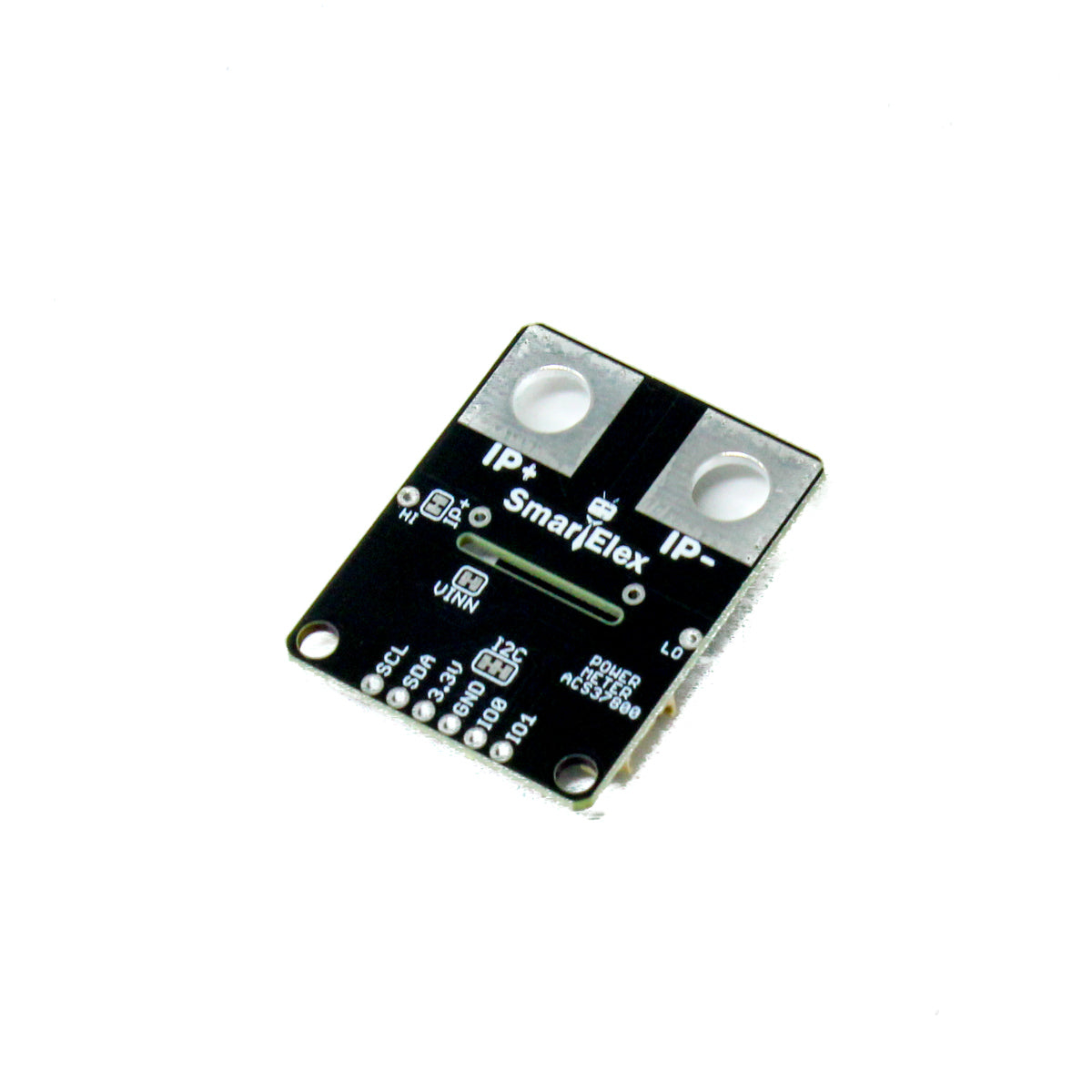

Accurately measure AC/DC power, voltage, current, and power factor in real time with the SmartElex Power Meter based on the Allegro ACS37800 IC. This compact, high-precision power monitoring breakout is designed for energy metering, smart appliances, and IoT power analytics. Available now at The Tech Depot, Bengaluru - trusted by makers and professionals across India.
Specifications
| Module | SmartElex Power Meter Breakout Board |
| Core IC | Allegro ACS37800 - Integrated Power Monitoring IC |
| Measurements | Voltage (RMS), Current (RMS), Active Power, Reactive Power, Apparent Power, Power Factor |
| Sensing Method | Hall-effect based isolated current sensing (integrated in IC) |
| Current Range | Up to 30A (refer to datasheet for specific variant) |
| Voltage Input | Supports AC and DC voltage measurement via resistor divider network |
| Communication Interface | SPI & I2C compatible digital output |
| Operating Voltage | 3.3V logic level |
| Isolation | Galvanic isolation between high-voltage sense path and logic side |
| Accuracy | High-accuracy RMS computation with on-chip DSP |
| On-Chip Features | Overcurrent fault detection, zero-crossing detection, programmable EEPROM |
| Form Factor | Compact breakout board with clearly labelled header pins |
| Compatibility | Arduino, ESP32, STM32, Raspberry Pi, and other 3.3V microcontrollers |
| Origin | Original / Authentic SmartElex Module |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 Technical Assistance |
Key Features
- All-in-One Power Monitoring: Measures voltage, current, active/reactive/apparent power, and power factor from a single IC - eliminating the need for separate CT clamps and voltage transformers.
- Allegro ACS37800 IC: Industry-grade hall-effect power monitoring IC with on-chip DSP for true RMS calculations and high measurement accuracy.
- Galvanic Isolation: Safely monitor mains-level AC power with isolated current sensing - no direct electrical connection between high-voltage path and your microcontroller.
- Dual Digital Interface: Communicate via SPI or I2C, giving you flexibility to integrate with virtually any microcontroller platform.
- On-Chip EEPROM: Store calibration data and configuration settings directly on the IC for persistent, reliable operation across power cycles.
- Overcurrent & Zero-Crossing Detection: Built-in fault protection and zero-crossing output enable smart load switching and safety shutdown routines.
- AC & DC Compatible: Monitor both AC mains power and DC bus power, making it versatile for solar inverters, battery systems, and appliance metering.
- Compact Breakout Design: Breadboard-friendly header pins and clear silkscreen labelling for rapid prototyping and easy PCB integration.
Why Choose the SmartElex ACS37800 Power Meter?
- 100% authentic SmartElex module sourced directly from authorized distributors
- Replaces bulky CT + voltage sensor combos with a single integrated solution
- True RMS computation on-chip - offloads processing from your microcontroller
- Ideal for energy metering projects requiring BIS/IEC-grade measurement accuracy
- Extensive community support with Arduino and ESP32 libraries available
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse to most locations in India
- Expert technical support included - we help you get it working in your project
Project Ideas
- IoT Energy Monitor: Build a Wi-Fi-connected smart energy meter using ESP32 + ACS37800 to track real-time household or industrial power consumption on a dashboard (Blynk, ThingSpeak, Home Assistant).
- Solar Inverter Analytics: Monitor DC input power from solar panels and AC output power from the inverter simultaneously - calculate conversion efficiency in real time.
- Smart Appliance Power Profiling: Measure the power signature of individual appliances to enable non-intrusive load monitoring (NILM) and predictive maintenance alerts.
- EV Charging Station Metering: Integrate into electric vehicle charging units to accurately meter energy delivered, compute billing, and detect overcurrent faults.
- Battery Management System (BMS): Monitor DC bus power in lithium-ion or lead-acid battery packs for state-of-charge estimation and load balancing.
- Industrial Motor Monitoring: Track power factor, reactive power, and current draw of AC motors to detect mechanical faults, overloading, or efficiency degradation.
- Educational Power Electronics Lab
