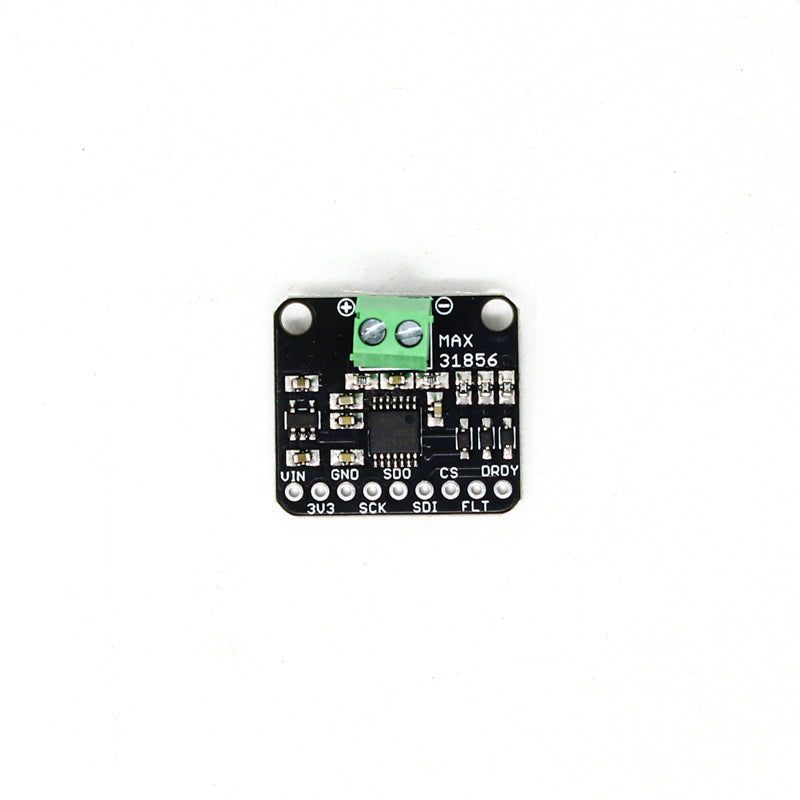

SmartElex MAX31856 Thermocouple Breakout - Universal High-Temperature Sensor Interface

When your project needs to measure temperatures from -210 degreesC to 1800 degreesC, the MAX31856 thermocouple breakout is your answer. Unlike the MAX6675 which only supports Type-K thermocouples, the MAX31856 supports all standard thermocouple types (B, E, J, K, N, R, S, T) via a single SPI interface - making it the last thermocouple front-end you'll buy. At Rs.445.50 from The Tech Depot, this SmartElex MAX31856 breakout is manufactured in India and ships 1-5 days from Bengaluru.

Specifications

• IC: Maxim MAX31856
• Thermocouple types: B, E, J, K, N, R, S, T
• Temperature range: -210 degreesC to 1800 degreesC (thermocouple dependent)
• Cold junction range: -40 degreesC to +125 degreesC
• Resolution: 0.0625 degreesC
• Interface: SPI (4-wire)
• Supply voltage: 3.3V - 5V
• Fault detection: open circuit, short to GND/VCC

Why SmartElex beats generic MAX6675 boards

MAX6675 clones only support Type-K and max out at 1024 degreesC. The MAX31856 supports all 8 types to 1800 degreesC, has built-in cold junction compensation, and includes fault detection. The SmartElex PCB adds proper decoupling and SPI level shifting for 3.3V/5V compatibility.

Real-world projects

1. Reflow Oven Controller

Measure solder paste temperatures up to 260 degreesC with a Type-K thermocouple on Arduino Uno for a DIY reflow station.

2. Kiln Temperature Logger

Log ceramic firing curves up to 1300 degreesC with ESP32 + SD card. Use our GPS Data Logger Shield for timestamping.

3. 3D Printer Hotend Monitor

Use as a redundant safety sensor alongside your thermistor for over-temperature shutdown protection.

How it compares

MAX6675 modules cost ~Rs.200 less but are limited to Type-K only. The MAX31856 at Rs.445.50 is not separately listed on thetechdepot.in, making The Tech Depot the best online source in India - with 7-day warranty on manufacturing defects and COD.

FAQ

Q: What thermocouple type should I use for 0-300 degreesC?
A: Type-K is the most common and affordable for this range. The MAX31856 supports it natively.

Q: Is it compatible with Arduino and Raspberry Pi?
A: Yes. Use the Adafruit MAX31856 library for Arduino. For Raspberry Pi, use the adafruit-circuitpython-max31856 library.

Q: Does it support multiple thermocouples?
A: One thermocouple per MAX31856 board. Use multiple boards with separate SPI CS pins for multi-channel setups.

Q: What is the accuracy at 25 degreesC ambient?
A: Cold junction compensation accuracy is +/-0.7 degreesC typical; thermocouple measurement accuracy depends on the thermocouple grade used.

Q: Does The Tech Depot provide a warranty?
A: Yes, 7-day warranty on manufacturing defects against manufacturing defects on all SmartElex modules.

Add to cart for ships in 1-5 days from Bengaluru. COD + UPI accepted. 7-day warranty on manufacturing defects included.
