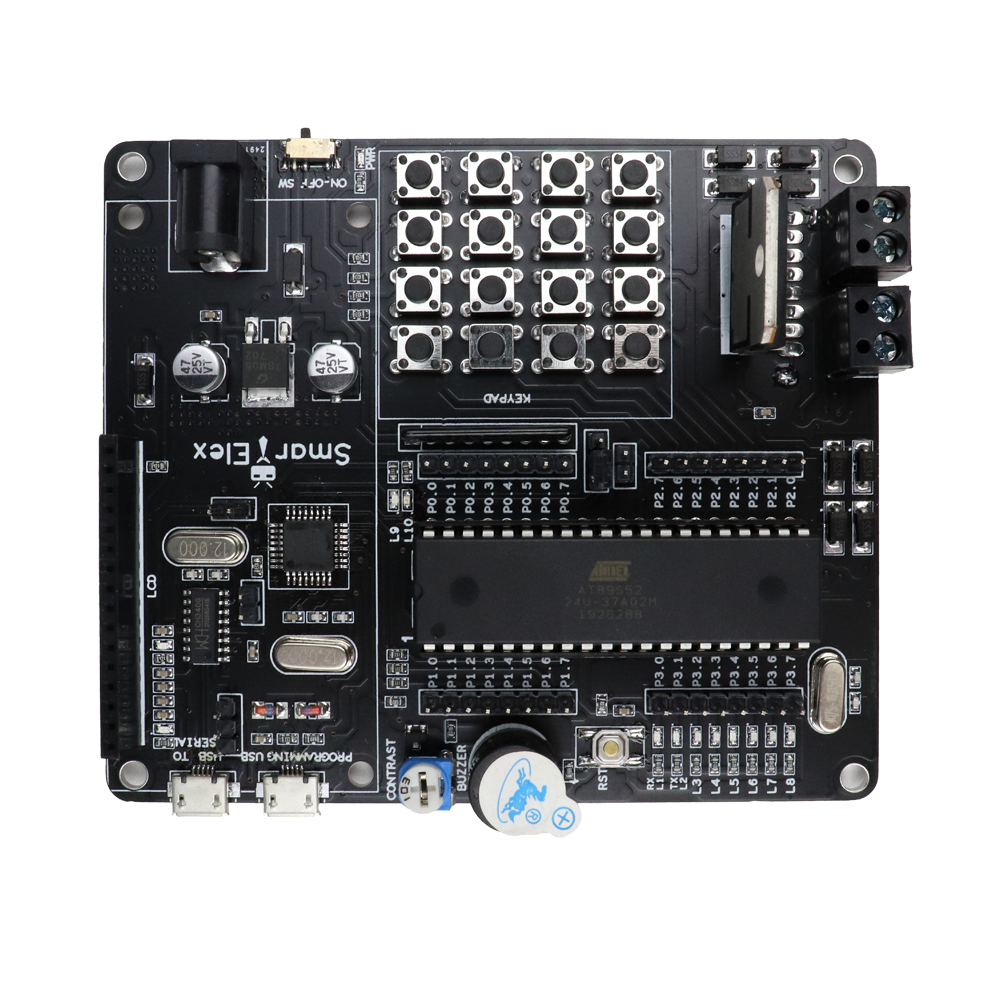

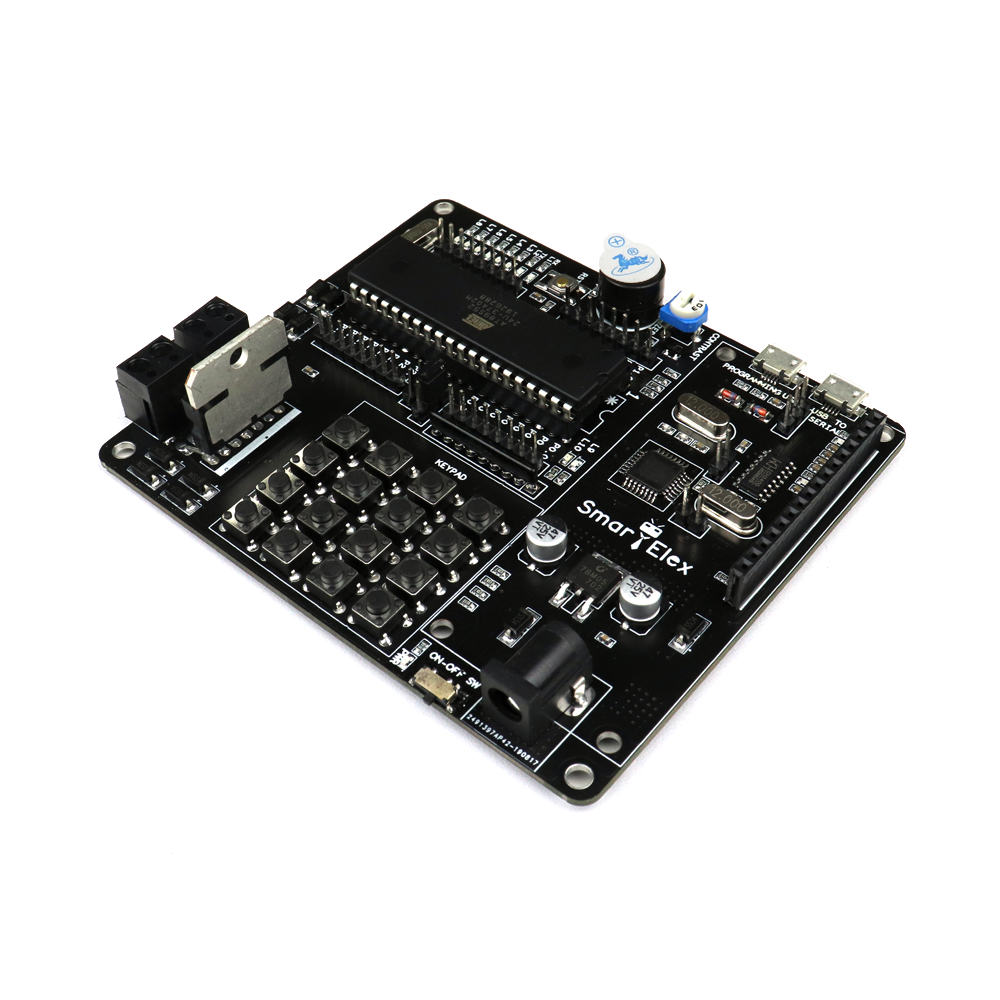

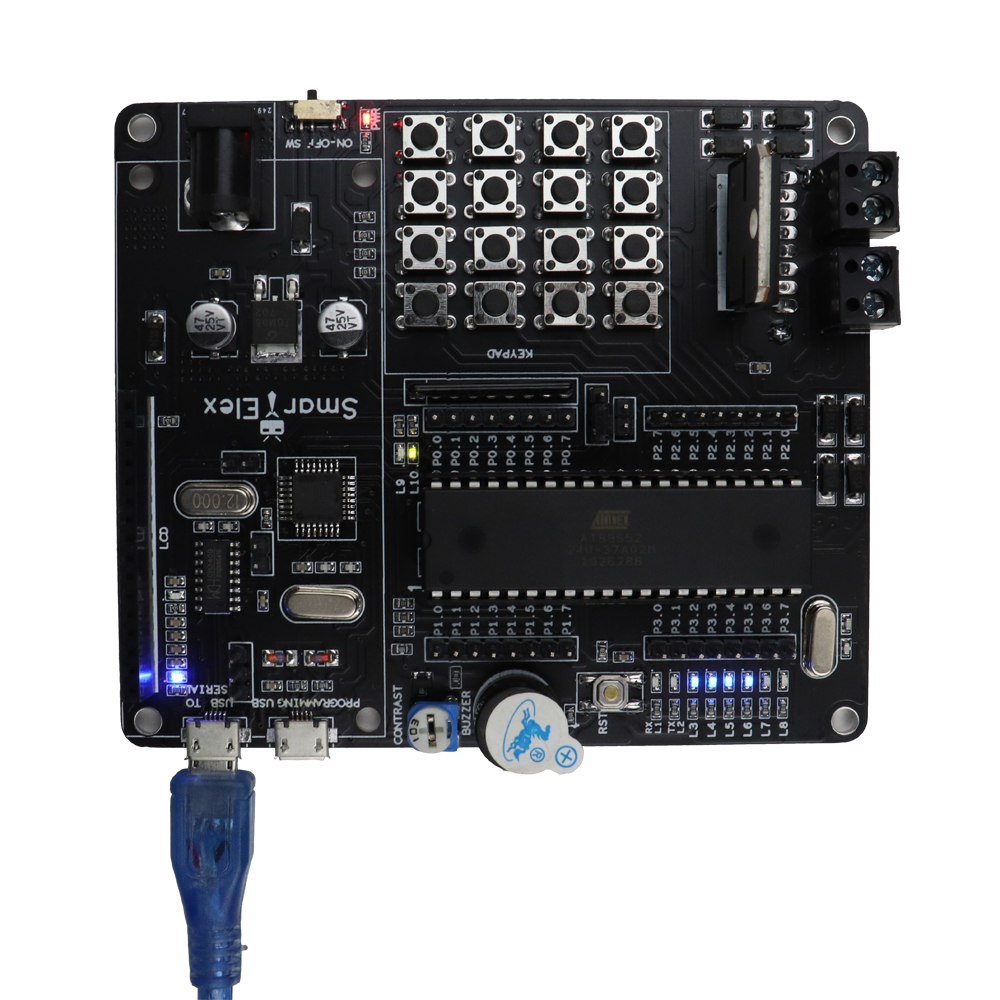

SmartElex AT89S52 Development Board
The SmartElex AT89S52 development board price in india is a fully loaded 8051 learning and prototyping platform. It packs an onboard 5V regulator, L298P DC motor driver, 4x4 keypad, 16x2 LCD, CH340 USB-to-serial and a USBASP programmer for HEX loading. Popular with students, makers and engineers in Bangalore and across India, it ships from our Bengaluru warehouse with a GST invoice.
Key Specifications
| Microcontroller | AT89S52 (8051 family) |
| Input Voltage | 9-15V (12V recommended), onboard 78M05 5V regulator |
| Onboard Peripherals | L298P motor driver, 4x4 keypad, 16x2 LCD |
| Programming | CH340 USB-to-serial + USBASP |
| Dimensions / Weight | 105 x 92 x 15 mm / 65 g |
| Country of Origin | Imported |
Key Features
- Onboard L298P DC motor driver and 4x4 matrix keypad
- 16x2 LCD display and 11.0592 MHz crystal
- Port extensions with detailed pin labelling
- CH340 USB-to-serial plus USBASP for easy HEX loading
Applications & Use Cases
- Learning 8051 embedded C on an AT89S52 8051 development board
- Motor control, keypad and LCD interfacing projects
- College labs and hobby robotics prototyping
Frequently Asked Questions
How do I program the AT89S52 board?
Load your HEX file over the onboard USBASP, or use the CH340 USB-to-serial for communication.
Can it drive DC motors?
Yes β the onboard L298P motor driver makes it a versatile development board Bangalore students use for robotics.
