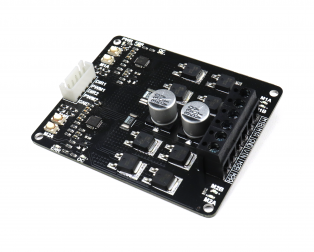

SmartElex 15D Dual Channel DC Motor Driver
SmartElex 15D Dual Channel DC Motor Driver
SmartElex 15D Dual Channel DC Motor Driver
The SmartElex 15D is a professional-grade dual channel DC motor driver module designed to independently control two DC motors with PWM speed regulation and directional control capabilities. This module is extensively used by roboticists, automation engineers, and embedded systems developers who require precise motor control in applications ranging from autonomous vehicles to industrial automation systems. It solves the critical challenge of managing multiple DC motors from microcontroller platforms with limited GPIO pins while maintaining independent speed and direction control for each motor channel.
Product Overview
The SmartElex 15D operates on the principle of H-bridge motor control topology, utilizing high-current MOSFETs to enable bidirectional current flow through motor windings. The dual channel architecture allows simultaneous control of two independent DC motors, with each channel featuring separate PWM inputs for speed modulation and direction control pins. The module accepts logic-level signals from microcontrollers like Arduino, Raspberry Pi, or PIC microcontrollers, making it compatible with most embedded development platforms. The integrated protection circuitry includes back-EMF suppression diodes and thermal management features to ensure reliable operation under continuous load conditions.
What distinguishes the SmartElex 15D in the market is its robust current handling capacity of up to 15A per channel with minimal voltage drop across the MOSFETs, resulting in superior efficiency and reduced heat generation. The module features a compact PCB design with clearly labeled pin headers for intuitive integration into prototyping breadboards and custom PCB layouts. Its wide operating voltage range from 5V to 35V DC accommodates various power supply configurations, from battery-powered robotics projects to industrial control systems. The module includes onboard indicator LEDs for each channel to provide visual feedback on motor operation status, facilitating quick troubleshooting during development phases.
Key Specifications
| Specification | Details |
| Product Type | Dual Channel DC Motor Driver Module |
| Brand | SmartElex |
| Model | 15D |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| Maximum Current per Channel | 15A continuous, 20A peak |
| Operating Voltage Range | 5V to 35V DC |
| Logic Input Voltage | 3.3V to 5V TTL compatible |
| Control Pins per Channel | 2 direction pins and 1 PWM speed pin |
| Onboard Protection | Back-EMF suppression diodes, thermal management |
| PCB Dimensions | 65mm x 45mm x 18mm |
Key Features
- Dual Independent Motor Channels with separate PWM speed control enabling simultaneous operation of two DC motors with different speeds and directions
- High Current Capacity of 15A continuous per channel with low MOSFET on-resistance ensuring minimal power dissipation and extended operational lifespan
- Wide Voltage Range from 5V to 35V DC supporting battery-powered applications, regulated power supplies, and industrial control systems without additional voltage conversion
- TTL Logic Compatible Inputs accepting standard 3.3V and 5V microcontroller outputs for seamless integration with Arduino, Raspberry Pi, STM32, and PIC platforms
- Integrated Back-EMF Protection Diodes preventing voltage spikes and protecting sensitive microcontroller circuits during motor deceleration and direction reversal
- Onboard Status LEDs for each channel providing real-time visual indication of motor operation, simplifying debugging and system monitoring during development
Applications and Use Cases
- Autonomous Robotics Platforms requiring independent control of left and right drive motors with PWM-based speed regulation for obstacle avoidance and path navigation algorithms
- Line Following Robots utilizing dual motor control for differential drive mechanisms where precise speed matching between motors determines trajectory accuracy
- Industrial Conveyor Belt Systems managing multiple motor zones with synchronized or independent speed control for material handling and production automation
- Robotic Arm Actuators controlling dual joint motors simultaneously for coordinated movement patterns in pick-and-place and assembly automation applications
- Drone and Quadcopter Propeller Systems managing dual motor pairs with PWM frequency up to 20kHz for stable flight control and altitude maintenance
- Educational Robotics Projects in STEM programs where students learn motor control principles through hands-on experimentation with Arduino-based platforms
How to Use
To implement the SmartElex 15D in your project, begin by identifying your power supply specifications and connecting the motor supply voltage to the VCC and GND pins, ensuring proper polarity to avoid component damage. Next, connect your two DC motors to the OUT1-OUT2 terminals for the first channel and OUT3-OUT4 terminals for the second channel, maintaining consistent polarity across both motors. Wire your microcontroller logic signals to the control pins: IN1 and IN2 for direction control of motor one, IN3 and IN4 for motor two direction, and PWM1 and PWM2 for speed control of each respective motor. The PWM frequency should ideally be between 1kHz and 20kHz to ensure smooth motor operation without audible noise and to maximize efficiency.
In your microcontroller code, configure the PWM pins as outputs and set the direction control pins as digital outputs. To run motor one forward at variable speed, set IN1 HIGH and IN2 LOW, then apply a PWM signal to PWM1 with duty cycle ranging from 0 to 255 for Arduino analogWrite function. For reverse operation, invert the logic on IN1 and IN2 while maintaining the PWM signal. Monitor the onboard status LEDs to verify correct operation before running extended tests. Always include current limiting resistors on the PWM lines if your microcontroller pins are sensitive to back-EMF noise, and consider adding a 100uF capacitor across the motor power supply terminals to stabilize voltage during transient load changes.
Frequently Asked Questions
What is the maximum PWM frequency supported by the SmartElex 15D?
The SmartElex 15D supports PWM frequencies from 1kHz to 20kHz without performance degradation. Frequencies below 1kHz may cause audible motor noise and reduced efficiency, while frequencies above 20kHz may exceed the switching speed of the onboard MOSFETs. For optimal performance with Arduino boards, use the default 490Hz frequency or reprogram Timer1 to 10kHz for smoother operation.
Can I operate the SmartElex 15D with a 12V power supply if my motors are rated for 12V?
Yes, the SmartElex 15D operates perfectly within its 5V to 35V range with a 12V power supply. This is an ideal configuration for most robotics projects using standard 12V lead-acid batteries or 12V regulated power supplies. Ensure your power supply can deliver sufficient current for both motors operating simultaneously, typically requiring at least 30A capacity for two 15A motors at full load.
How do I protect my microcontroller from back-EMF spikes when using the SmartElex 15D?
The SmartElex 15D includes integrated back-EMF suppression diodes on the motor output terminals that clamp voltage spikes to safe levels. However, for additional protection of your microcontroller's input pins, add 10k ohm pull-down resistors on the PWM input lines and use 100nF ceramic capacitors across the logic power supply pins. These measures create RC filters that attenuate high-frequency noise generated during rapid motor direction changes.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
