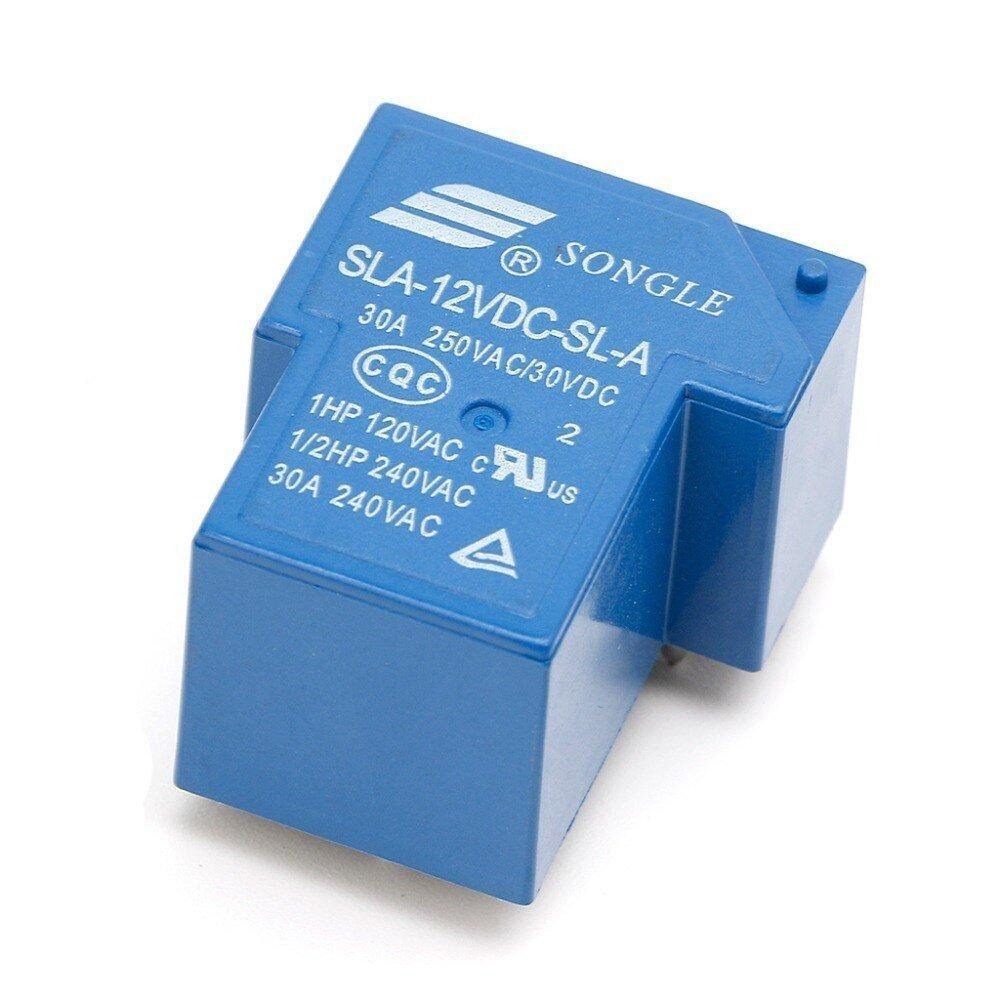

SLA 12VDC 4-Pin 30A Power Relay
High-current SPST power relay rated at 30A with 12V DC coil voltage - ideal for switching heavy loads in automotive, industrial, and high-power DIY projects. Available at The Tech Depot, Bengaluru with fast shipping and full warranty.
Specifications
| Relay Type | Power Relay (SPST - Normally Open) |
| Coil Voltage | 12V DC |
| Contact Rating | 30A @ 250V AC / 30V DC |
| Pin Configuration | 4-Pin (2 Coil + 1 COM + 1 NO) |
| Contact Form | 1 Form A (1A / SPST-NO) |
| Coil Resistance | ~400Ohm (typical) |
| Coil Power Consumption | ~0.36W |
| Pick-Up Voltage | <= 9V DC (75% of rated) |
| Release Voltage | >= 1.2V DC (10% of rated) |
| Max Switching Voltage | 250V AC / 30V DC |
| Max Switching Current | 30A |
| Contact Material | Silver Alloy (AgSnO2 or AgCdO) |
| Operate Time | <= 15ms |
| Release Time | <= 10ms |
| Dielectric Strength | >= 1500V AC (coil to contact) |
| Insulation Resistance | >= 100MOhm @ 500V DC |
| Mechanical Life | 10,000,000 operations (no load) |
| Electrical Life | 100,000 operations (at rated load) |
| Operating Temperature | -40 degreesC to +85 degreesC |
| Mounting Style | PCB Through-Hole |
| Dimensions (approx.) | 27.5 x 20.5 x 21mm |
| Weight (approx.) | ~20g |
| Series | SLA (Songle or equivalent) |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- 30A High-Current Switching: Handles heavy resistive and inductive loads including motors, heaters, pumps, and high-power lighting circuits.
- 12V DC Coil: Directly compatible with 12V automotive systems, battery-powered setups, Arduino (via driver transistor), and standard 12V power supplies.
- 4-Pin SPST-NO Configuration: Simple normally-open single-pole design - only 4 pins for straightforward wiring and PCB layout.
- Low Coil Power Consumption: Approximately 0.36W coil draw makes it efficient and easy to drive with a small transistor or MOSFET.
- Silver Alloy Contacts: High-quality contact material ensures low contact resistance, minimal arcing, and long electrical life at rated loads.
- Compact Form Factor: Small relay footprint (~27.5 x 20.5mm) fits easily on custom PCBs, relay modules, and tight enclosure spaces.
- Wide Temperature Range: Operates reliably from -40 degreesC to +85 degreesC, suitable for automotive under-hood, outdoor, and industrial environments.
- High Dielectric Strength: 1500V AC isolation between coil and contacts ensures safe separation of control and load circuits.
- Excellent Mechanical Durability: Rated for 10 million mechanical cycles, ensuring years of reliable service in switching applications.
- PCB Through-Hole Mount: Standard pin spacing for easy soldering onto single-sided or double-sided PCBs without special tooling.
Pin Configuration (4-Pin Layout)
| Pin | Function | Description |
| Pin 1 | Coil (+) | Connect to +12V DC through a switching transistor or directly from a control signal |
| Pin 2 | Coil () | Connect to ground (GND) of the 12V supply |
| Pin 3 | Common (COM) | Common terminal - connect to the load power source |
| Pin 4 | Normally Open (NO) | Connects |
