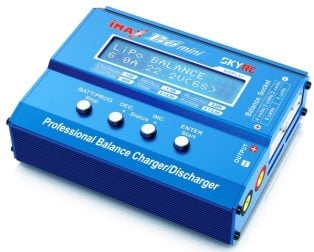

SkyRC iMAX B6 Mini Professional Balance Charger/Discharger
SkyRC iMAX B6 Mini Professional Balance Charger/Discharger
SkyRC iMAX B6 Mini Professional Balance Charger/Discharger
The SkyRC iMAX B6 Mini is a compact yet powerful professional-grade balance charger and discharger designed for lithium polymer (LiPo), lithium ion (Li-ion), nickel-metal hydride (NiMH), and nickel-cadmium (NiCd) battery packs. This device is extensively used by RC hobbyists, drone pilots, and professional battery maintenance technicians who require precise cell-level voltage balancing and safe charging cycles. It solves the critical problem of battery pack imbalance that leads to reduced flight time, premature cell failure, and potential safety hazards in high-performance applications.
Product Overview
The SkyRC iMAX B6 Mini operates on the principle of active cell balancing, which monitors and equalizes voltage across individual cells during the charging process. Unlike standard chargers that charge entire battery packs uniformly, this balance charger features a dedicated balance port that connects to each cell's tap point, allowing the device to detect voltage discrepancies as small as 0.01V per cell. The charger automatically redistributes charge between cells, ensuring every cell reaches identical voltage levels before completing the charge cycle. This micro-level precision extends battery lifespan by 30-40% and maintains consistent performance across repeated charge-discharge cycles.
The B6 Mini incorporates advanced microprocessor technology with multiple charging modes including constant current (CC), constant voltage (CV), and trickle charge modes. It features a built-in power supply with AC input compatibility, eliminating the need for external power adapters. The device includes an LCD display that provides real-time feedback on charging current, voltage, cell count, and estimated time remaining. Safety features include reverse polarity protection, over-voltage protection, temperature monitoring, and automatic charge termination when cells reach optimal voltage. The compact form factor makes it ideal for field use, workshops, and portable battery maintenance stations.
Key Specifications
| Specification | Details |
| Product Type | Professional Balance Charger/Discharger |
| Brand | SkyRC |
| Model | iMAX B6 Mini |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| Input Voltage | AC 110-240V, 50/60Hz |
| Charging Current Range | 0.1A to 6A |
| Discharging Current | 0.1A to 2A |
| Battery Type Compatibility | LiPo, Li-ion, LiFe, NiMH, NiCd |
| Cell Count Support | 1-6S LiPo, 1-8S NiMH/NiCd |
| Balance Port | XH 2.54mm connector |
| Display | LCD screen with real-time monitoring |
| Dimensions | Compact portable design |
| Weight | Lightweight for field portability |
Key Features
- Integrated AC Power Supply: Built-in 100W power supply eliminates need for external adapters, providing stable voltage regulation for consistent charging performance across varying input conditions
- Advanced Cell Balancing Technology: Active balancing circuit monitors individual cell voltages with 0.01V precision, automatically equalizing charge distribution to prevent cell damage and extend battery cycle life
- Multi-Chemistry Support: Compatible with LiPo, Li-ion, LiFe, NiMH, and NiCd batteries, making it versatile for diverse RC applications from drones to electric vehicles and hobby robotics
- Dual Function Operation: Performs both charging and discharging cycles, enabling battery conditioning, storage preparation, and capacity testing without requiring separate devices
- Comprehensive Safety Protection: Features reverse polarity protection, over-voltage cutoff, temperature monitoring with thermal shutdown, and automatic charge termination to prevent overcharging damage
- Real-Time LCD Display: Shows charging current, voltage, cell count, battery type, and estimated time remaining, providing complete visibility into charging process and battery status
- Portable Design: Compact form factor with integrated carry handle makes it suitable for field use, workshop environments, and mobile charging stations
Applications and Use Cases
- Drone and Quadcopter Battery Maintenance: Professional drone pilots use the B6 Mini to balance LiPo battery packs before flights, ensuring equal thrust distribution across motors and maximizing flight time by maintaining consistent power delivery from each cell
- RC Car and Helicopter Racing: Competition-level RC enthusiasts rely on this charger for pre-race battery conditioning, balancing NiMH packs to achieve optimal acceleration and handling characteristics in racing events
- Electric Vehicle Battery Pack Management: EV hobbyists and technicians use the B6 Mini for maintaining custom battery packs in electric scooters and skateboard builds, ensuring safety and performance through proper cell balancing
- Battery Testing and Diagnostics: Electronics repair shops and battery retailers use the discharging function to perform capacity testing, identify weak cells, and verify battery health before customer delivery
- Portable Power Station Maintenance: Field technicians use the B6 Mini in remote locations for emergency battery conditioning and repair without requiring stationary charging infrastructure
- Educational and Training Applications: Electronics schools and robotics clubs use this device to teach students about battery chemistry, charging principles, and safe lithium battery handling practices
How to Use
Begin by connecting the AC power adapter to a standard wall outlet and allowing the device to initialize. Select your battery chemistry using the mode button, then input the cell count using the arrow controls on the LCD interface. Connect the main battery connector to the corresponding port on the charger, ensuring polarity is correct. Next, attach the balance lead connector to the XH 2.54mm balance port, with each wire aligning to its corresponding cell tap point. The device will automatically detect the battery configuration and display the voltage of each cell on the LCD screen. Set your desired charging current using the adjustment buttons, typically 1C rating for standard charging or 0.5C for storage mode charging.
Once all connections are verified and settings confirmed, press the start button to initiate the charging cycle. The LCD will display real-time information including current charging amperage, total voltage, individual cell voltages, and estimated completion time. During the charging process, the balance circuit continuously monitors each cell and automatically transfers charge between cells to maintain voltage equality. The charger will automatically terminate when all cells reach the target voltage, typically 4.2V per cell for LiPo batteries. After charging completes, disconnect the balance lead first, then remove the main battery connector. For storage, use the discharge function set to 3.8V per cell to condition the battery to a safe storage state that minimizes self-discharge and extends shelf life.
Frequently Asked Questions
What is the difference between charging and balancing, and why do I need both?
Charging delivers electrical energy to the battery pack, while balancing ensures each individual cell receives equal voltage. Standard chargers deliver current to the entire pack uniformly, but cells have slightly different internal resistances causing some to charge faster than others. This voltage imbalance reduces usable capacity, shortens lifespan, and can cause cell damage. The B6 Mini's balance function actively monitors each cell and redistributes charge, ensuring all cells reach identical voltages. This is essential for lithium batteries where cell imbalance can lead to overcharging of faster cells, causing swelling, reduced performance, and safety hazards.
Can the SkyRC iMAX B6 Mini charge different battery chemistries simultaneously?
No, the B6 Mini can only charge one battery at a time. However, it supports multiple battery chemistries including LiPo, Li-ion, LiFe, NiMH, and NiCd. You must select the appropriate chemistry mode before connecting each battery. Charging different chemistries simultaneously would be dangerous as each requires different voltage profiles and charging curves. The device includes a mode selection button to quickly switch between battery types, making it easy to service multiple battery types sequentially throughout your session.
What charging current should I use for my LiPo battery pack?
The recommended charging current is 1C, which equals the battery's capacity in amperes. For example, a 2200mAh battery should charge at 2.2A. This provides optimal balance between charging speed and battery longevity. The B6 Mini supports currents from 0.1A to 6A, allowing you to charge at lower rates for storage mode charging (0.5C) which extends lifespan, or higher rates up to 3C for faster charging when needed. Always verify your battery's maximum charge rate specification before exceeding 1C, as exceeding manufacturer limits can damage cells and create fire hazards.
How do I know if my battery pack is imbalanced?
Connect the battery to the B6 Mini and observe the individual cell voltages displayed on the LCD screen. If cells differ by more than 0.1V, the pack is imbalanced. For example, if a 3S LiPo shows cells at 4.18V, 4.12V, and 4.05V, balancing is needed. Imbalanced packs exhibit reduced flight time, poor performance, and may show one cell fully charged while others are undercharged. The B6 Mini's balance function will automatically correct these discrepancies during charging. You can also use the discharge function to intentionally drain high-voltage cells while maintaining lower cells, equalizing the pack before storage.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
