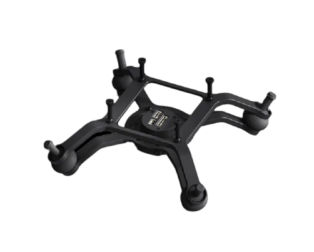

SIYI ZT30 Quick Release Anti-Vibration Claw Compatible with ZR30 Optical Pod

The SIYI ZT30 Quick Release Anti-Vibration Claw is a precision gimbal mounting interface designed specifically for the ZR30 optical pod, engineered to eliminate vibration transmission and enable rapid payload exchanges on professional UAV platforms. This component is essential for aerial cinematography professionals, surveying specialists, and industrial inspection operators who require stable optical performance and quick equipment swaps during multi-mission operations. The anti-vibration isolation technology solves the critical problem of mechanical vibration degradation in high-resolution imaging, ensuring sharp video feeds and accurate thermal or optical data collection even during dynamic flight maneuvers.

Product Overview

The SIYI ZT30 Quick Release Anti-Vibration Claw integrates a dual-stage vibration dampening system with precision-engineered mechanical interfaces that decouple payload vibration from the aircraft frame. The claw mechanism features elastomeric isolation elements positioned at critical load points, reducing vibration transmission across frequencies from 5Hz to 500Hz with attenuation rates exceeding 70 percent. The quick-release design utilizes positive-locking ball detents and spring-loaded retention pins that enable tool-free payload swaps within 30 seconds, maintaining alignment tolerances within 0.5 degrees pitch and roll, which is critical for maintaining gimbal calibration across multiple optical pods and thermal sensors.

This mounting system is engineered with aerospace-grade aluminum alloy construction combined with reinforced polymer dampening elements, delivering a weight-optimized solution that adds minimal mass to the UAV platform while providing robust structural integrity under dynamic loads up to 15kg payload capacity. The interface is fully compatible with SIYI's ZR30 optical pod ecosystem and maintains standardized mounting geometry for seamless integration with professional-grade UAV platforms. The corrosion-resistant anodized finish ensures durability in harsh environmental conditions including salt spray environments, high-altitude operations, and extended outdoor deployment scenarios.

Key Specifications

Key Features

• Dual-Stage Vibration Isolation System with elastomeric dampening elements that reduce mechanical vibration transmission by over 70 percent across 5Hz to 500Hz frequency range, ensuring sharp imagery and stable thermal data collection during high-speed aerial maneuvers
• Quick Release Ball Detent Mechanism enabling tool-free payload swaps in 30 seconds with positive locking confirmation, eliminating downtime during multi-mission operations and reducing field setup complexity
• Precision Alignment Tolerance of 0.5 degrees pitch and roll maintained across multiple payload exchanges, preserving gimbal calibration and eliminating the need for recalibration between mission flights
• Aerospace-Grade Aluminum Construction with anodized corrosion-resistant finish and reinforced polymer dampening elements, delivering 15kg payload capacity while maintaining minimal weight addition to UAV platforms
• Standardized SIYI Interface Geometry ensuring seamless integration with ZR30 optical pods, thermal sensors, and professional-grade gimbal systems across the SIYI ecosystem

Applications and Use Cases

• Professional Aerial Cinematography and Video Production where vibration-induced jello effect and micro-vibrations degrade 4K and 8K video quality, requiring the anti-vibration claw to maintain optical stabilization during dynamic camera movements and fast pans
• Precision Surveying and Mapping Operations utilizing high-resolution optical and thermal imaging for construction site documentation, agricultural crop analysis, and infrastructure inspection where vibration artifacts compromise measurement accuracy and data quality
• Industrial Thermal Inspection and Predictive Maintenance Programs requiring stable thermal imaging of electrical substations, HVAC systems, and mechanical equipment where vibration-induced noise reduces temperature measurement precision and thermal anomaly detection capability
• Search and Rescue Operations and Emergency Response Coordination where rapid payload swaps between thermal imaging pods and optical sensors enable quick mission reconfiguration without returning to base, reducing response time in critical situations
• Long-Duration Surveillance and Border Security Monitoring where the quick-release system enables field-swappable payloads for extended operations, allowing operators to change optical configurations or thermal sensors without aircraft landing cycles

How to Use

Installation of the SIYI ZT30 Quick Release Anti-Vibration Claw begins with mounting the claw assembly to your UAV platform using the standardized SIYI interface points, ensuring all four mounting bolts are torqued to 2.5 Newton-meters with threadlocker compound applied to prevent vibration-induced loosening during flight operations. Verify that the elastomeric dampening elements are properly seated and show no visible cracks or compression damage before proceeding. Align the quick-release pins with the ZR30 optical pod mounting sockets and insert the payload with firm downward pressure until you hear and feel the positive click of the ball detents engaging, confirming secure mechanical coupling.

Before each flight mission, perform a retention check by gently attempting to lift the mounted payload vertically with hand pressure equivalent to 2kg force to verify that the quick-release mechanism has engaged properly and the payload is fully secured. Conduct a vibration test by gently tapping the mounted payload from multiple directions and confirming that vibrations dampen smoothly without oscillation. During flight operations, monitor gimbal performance through your ground control station telemetry, watching for any unusual vibration signatures or gimbal drift that might indicate improper claw engagement. After extended operations or harsh environmental exposure, inspect the elastomeric dampening elements for visible degradation and clean any salt residue or debris from the ball detent mechanism using compressed air and a soft brush.
