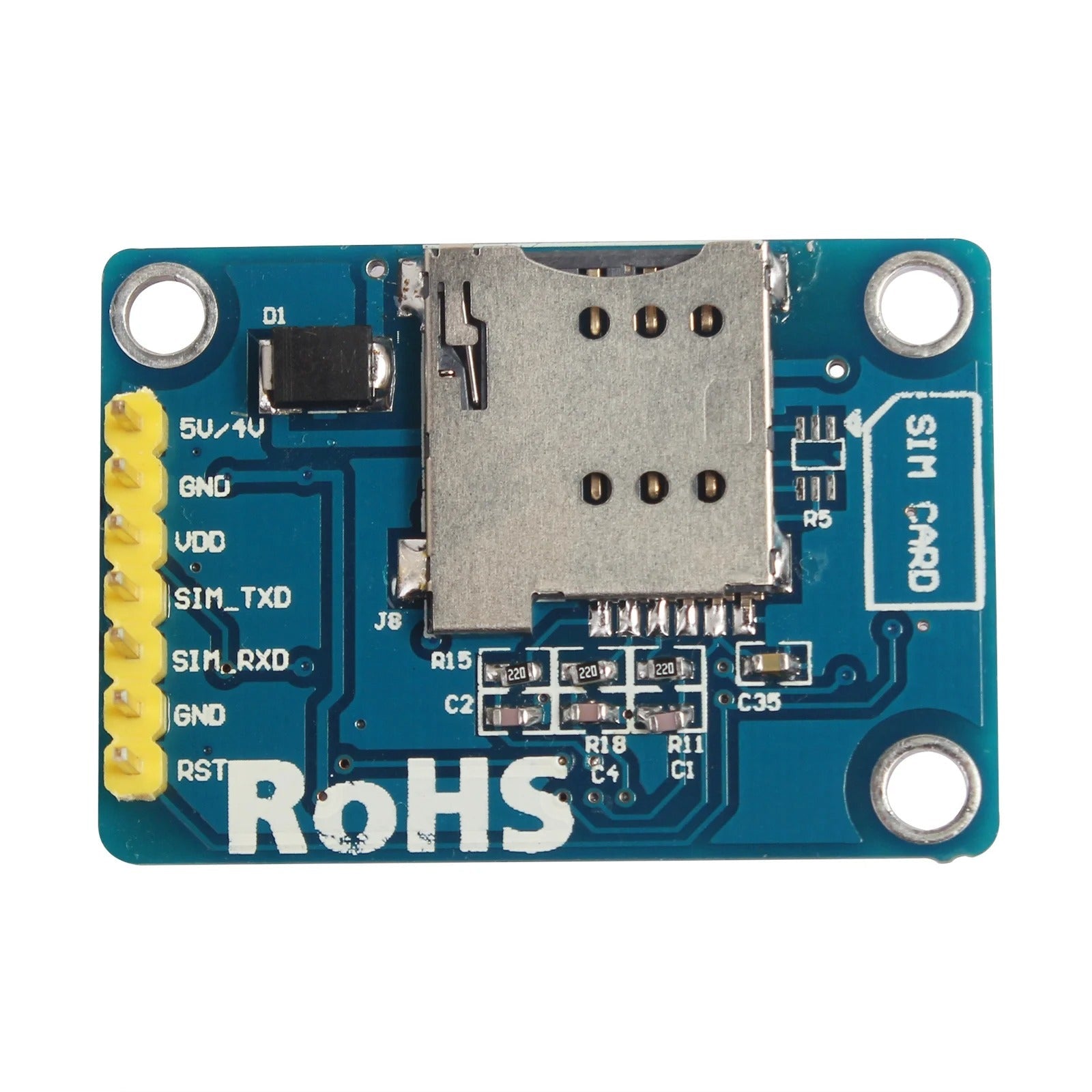

SIM800L V2.0 5V Wireless GSM GPRS Module - Quad-Band with Antenna
Add reliable cellular connectivity to your Arduino, ESP32, or microcontroller project with the SIM800L V2.0 GSM/GPRS module. This upgraded 5V version eliminates the need for a separate voltage regulator, making integration effortless. Send SMS messages, make voice calls, transmit data over GPRS, and build IoT devices with full quad-band global network support. Compact, powerful, and ready to connect - from The Tech Depot, Bengaluru. Fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Module | SIM800L V2.0 (upgraded version) |
| Chipset | SIMCom SIM800L |
| Operating Voltage | 5V DC (onboard 3.3V regulator included) |
| Frequency Bands | Quad-Band: 850/900/1800/1900 MHz |
| Communication Interface | UART (TTL serial, TX/RX) |
| Baud Rate | 1200 bps - 115200 bps (default 9600 bps) |
| GPRS Data | GPRS Class 12 - Download up to 85.6 kbps, Upload up to 42.8 kbps |
| GPRS Connectivity | GPRS multi-slot class 12/10 |
| SMS Support | Text and PDU mode |
| Voice Calls | Supported (speaker & microphone pins available) |
| SIM Card Slot | Micro-SIM (2FF) |
| Antenna | Spring/helical antenna included (SMA or IPX connector) |
| Network Indicator LED | Yes - blinks every 1s (searching), every 3s (registered/connected) |
| Protocols Supported | TCP/IP, HTTP, FTP, MUX, PPP |
| AT Command Set | Standard GSM 07.07, 07.05 & SIMCom enhanced AT commands |
| Operating Temperature | -40 degreesC to +85 degreesC |
| Board Dimensions | Approx. 25 mm x 23 mm |
| Peak Current Draw | Up to 2A during transmission bursts |
| Standby Current | ~0.7 mA (sleep mode) |
| Origin | Original SIMCom SIM800L chipset / Authentic module |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- 5V Direct Input (V2.0 Upgrade): Onboard voltage regulator accepts 5V directly from Arduino or USB, removing the hassle of external 3.7V LiPo power management required by older versions.
- Quad-Band Global Coverage: Operates on 850/900/1800/1900 MHz bands, compatible with 2G GSM networks worldwide - works with Airtel, Jio (2G), Vi, BSNL, and most international carriers.
- Full GSM Functionality: Send and receive SMS, make and receive voice calls, and establish GPRS data connections - all controlled via simple AT commands over UART.
- GPRS Internet Connectivity: Class 12 GPRS enables data transfer for IoT applications - push sensor data to cloud platforms, send HTTP requests, or use TCP/IP sockets.
- Compact Breakout Design: Castellated/pin-header breakout board with clearly labeled pins for TX, RX, VCC, GND, RST, and RING - breadboard and PCB friendly.
- Antenna Included: Ships with a matched antenna for immediate operation - no need to source separately.
- Network Status LED: Built-in LED provides visual feedback on network registration and connection status at a glance.
- Low Power Sleep Mode: Draws as little as 0.7 mA in sleep mode, ideal for battery-powered remote deployments.
- Wide Temperature Range: Industrial-grade operating range of -40 degreesC to +85 degreesC for outdoor and harsh-environment installations.
Why Choose the SIM800L V2.0 from The Tech Depot?
- 100% authentic SIMCom SIM800L chipset sourced from authorized distributors - no clones or remarked ICs
- V2.0 board with proven onboard regulator design - tested for stable operation under burst current loads
- 1-5 day shipping, 7-8 day delivery across India from our Bengaluru warehouse; same-day delivery within Bengaluru
- Expert technical support included - get help with wiring, AT commands, code examples, and troubleshooting
- 7-day warranty on manufacturing defects with hassle-free replacement on manufacturing def
