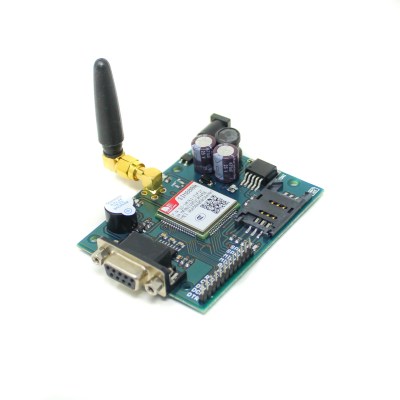

SIM800A Quad Band GSM/GPRS Module with RS232 Interface
SIM800A Quad Band GSM/GPRS Module with RS232 Interface
SIM800A Quad Band GSM/GPRS Module with RS232 Interface
The SIM800A is a compact quad-band GSM/GPRS module designed for embedded IoT applications, industrial telemetry, and remote communication systems requiring cellular connectivity. Electronics engineers, IoT developers, and industrial automation specialists use this module to add wireless communication capabilities to microcontroller-based projects without integrating complex cellular hardware. This module solves the critical challenge of enabling remote data transmission, SMS alerts, and voice communication in embedded systems operating across multiple global frequency bands.
Product Overview
The SIM800A operates on quad-band frequencies including GSM 850/900/1800/1900 MHz, ensuring global compatibility across diverse cellular networks. The module features an integrated RS232 serial interface that directly communicates with microcontrollers like Arduino, PIC, and ARM-based boards using standard AT command protocols. This eliminates the need for additional serial conversion circuits, streamlining the integration process. The module supports both voice calls and GPRS data transmission at speeds up to 85.6 kbps, making it suitable for applications requiring real-time data logging, remote monitoring, and emergency alert systems.
Built with robust power management and industrial-grade components, the SIM800A delivers reliable performance in temperature ranges from -40°C to +85°C, making it ideal for harsh field environments. The module includes integrated TCP/IP stack for direct internet connectivity via GPRS, eliminating the need for external protocol handling. Its compact form factor and low power consumption (approximately 1.5mA in sleep mode) make it perfect for battery-powered remote monitoring applications, solar-powered weather stations, and vehicle tracking systems where power efficiency is critical.
Key Specifications
| Specification | Details |
| Product Type | Quad Band GSM/GPRS Module with RS232 Interface |
| Brand | SIM800A Original |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| GSM Bands | 850/900/1800/1900 MHz Quad Band |
| Data Transfer Speed | GPRS Class 10, up to 85.6 kbps |
| Interface | RS232 Serial with TTL/CMOS levels |
| Operating Temperature | -40°C to +85°C |
| Power Supply | 3.4V to 4.2V DC, typical 2A peak current |
| Sleep Mode Current | Approximately 1.5mA |
Key Features
- Quad Band GSM/GPRS support covering 850/900/1800/1900 MHz ensures seamless operation across all major global cellular networks without regional limitations
- Direct RS232 serial interface eliminates the need for additional level shifters or conversion circuits, enabling direct connection to microcontroller UART pins
- Integrated TCP/IP stack allows direct internet connectivity via GPRS for IoT applications without external protocol handling modules
- Ultra-low sleep mode current consumption of 1.5mA makes this module ideal for battery-powered and solar-powered remote applications
- Full AT command compatibility enables rapid prototyping and integration with standard microcontroller development environments
- Industrial temperature range from -40°C to +85°C ensures reliable operation in extreme field conditions and outdoor deployments
Applications and Use Cases
- Remote Environmental Monitoring Systems: Deploy weather stations and soil moisture sensors in agricultural fields with real-time GPRS data transmission to cloud servers for precision farming analytics
- Vehicle Tracking and Fleet Management: Integrate into GPS tracking devices to transmit location coordinates and vehicle diagnostics via SMS and GPRS for logistics optimization
- Industrial Equipment Telemetry: Monitor pump stations, transformer substations, and water treatment plants with automated SMS alerts for critical parameters exceeding threshold values
- Emergency Alert Systems: Implement in security systems and panic buttons to send immediate voice calls and SMS notifications to emergency contacts when triggered
- Smart Meter Reading: Collect utility consumption data from distributed smart meters and transmit readings via GPRS to central billing servers in real-time
- Medical Alert Wearables: Enable elderly care devices and health monitoring wearables to send emergency notifications and vital sign data to healthcare providers
How to Use
Begin by connecting the SIM800A module to your microcontroller via the RS232 interface. Connect the TX pin to your microcontroller's RX pin, RX pin to TX pin, and ensure common ground connection. Supply power between 3.4V to 4.2V DC with a current capacity of at least 2A to handle peak current spikes during transmission. Insert a standard SIM card into the module's SIM slot, ensuring the card is properly seated. Use a serial terminal or microcontroller code to send AT commands for initialization, such as AT to verify communication, AT+CPIN? to check SIM status, and AT+CMGF=1 to set text message mode.
For GPRS connectivity, configure the APN settings using AT+SAPBR commands specific to your cellular provider. Test connectivity with AT+SAPBR=1,1 to activate the bearer connection. For sending SMS messages, use AT+CMGS="phonenumber" followed by your message text and Ctrl+Z terminator. For voice calls, use ATD+phonenumber; command. For IoT applications requiring internet connectivity, establish a TCP connection using AT+CIPSTART="TCP","server.address","port" and transmit JSON data payloads. Always implement proper error handling and timeout mechanisms in your microcontroller firmware to manage failed commands and network disconnections gracefully.
Frequently Asked Questions
What is the difference between SIM800A and other GSM modules like SIM900A?
The SIM800A is a more compact and power-efficient version compared to the SIM900A. While both support quad-band GSM/GPRS, the SIM800A has lower power consumption (1.5mA in sleep mode vs 2.5mA), smaller physical dimensions, and better heat management. The SIM800A also has improved RS232 interface stability and is preferred for battery-powered IoT applications. However, the SIM900A offers slightly better signal reception in weak coverage areas due to larger antenna coupling.
Can I use this module with Arduino directly without additional components?
Yes, the SIM800A's RS232 interface is compatible with Arduino's UART pins. However, you need to ensure proper voltage level conversion since Arduino operates at 5V logic while SIM800A uses 3.3V. Use a simple voltage divider network on the TX line or a dedicated level shifter module like MAX3232 for reliable bidirectional communication. Additionally, use a software serial library on Arduino to create a separate UART port dedicated to the GSM module communication.
What is the typical GPRS data speed and latency for IoT applications?
The SIM800A supports GPRS Class 10 with maximum theoretical speed of 85.6 kbps, but practical speeds typically range from 20-50 kbps depending on network congestion and signal strength. Latency for GPRS packet transmission is usually 500ms to 2 seconds. For time-critical applications requiring lower latency, consider upgrading to 3G or 4G modules. However, for most IoT telemetry and data logging applications, GPRS latency is acceptable. Always implement acknowledgment mechanisms in your application protocol to ensure reliable data delivery.
How do I handle power spikes and prevent microcontroller reset during transmission?
The SIM800A draws peak current up to 2A during transmission, which can cause voltage drops on weak power supplies. Use a dedicated power supply with minimum 2A capacity and add a 100µF electrolytic capacitor plus 10µF ceramic capacitor close to the module's power pins for current buffering. Additionally, implement a separate power rail for the GSM module isolated from the microcontroller supply to prevent ground bounce. Use a diode in series with the power supply to prevent reverse current flow during power cycling.
