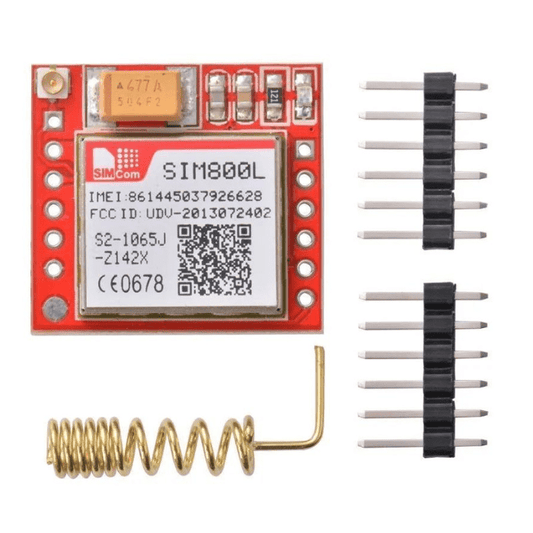

SIM 800L GSM/GPRS Module - Compact Cellular Communication for IoT & Embedded Projects
Add voice, SMS, and GPRS data capabilities to your microcontroller projects with the SIM 800L GSM/GPRS module from The Tech Depot, Bengaluru. This ultra-compact quad-band module accepts a micro-SIM card and communicates via simple AT commands over UART, making it the go-to choice for IoT, remote monitoring, and M2M applications. Fast shipping across India, 7-day warranty on manufacturing defects, and dedicated technical support included.
Specifications
| Module | SIM800L GSM/GPRS |
| Frequency Bands | Quad-band 850/900/1800/1900 MHz (works with all major Indian carriers) |
| Communication Interface | UART (TTL Serial) - TX, RX pins |
| Command Protocol | Standard 3GPP TS 27.007 / 27.005 AT Commands |
| Supply Voltage | 3.4 V - 4.4 V DC (recommended 4.0 V) |
| Peak Current Draw | Up to 2 A during transmission bursts |
| Typical Idle Current | ~0.7 mA in sleep mode |
| SIM Card Slot | Micro-SIM (2FF) |
| GPRS Data | GPRS multi-slot class 12/10; max 85.6 kbps (downlink/uplink) |
| SMS Support | Text & PDU mode |
| Voice Calls | Supported (external mic & speaker required) |
| Antenna Connector | IPX/U.FL (helical antenna typically included) |
| LED Indicator | Network status LED (fast blink = searching, slow blink = registered) |
| Operating Temperature | 40 degreesC to +85 degreesC |
| Board Dimensions | ~25 mm x 23 mm (ultra-compact breakout) |
| Compatibility | Arduino, ESP32, ESP8266, STM32, Raspberry Pi (via level shifter), PIC, and other 3.3 V/5 V MCUs |
| Origin | Original SIMCom SIM800L chipset - Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 Technical Assistance |
Key Features
- Quad-Band Global Coverage: Operates on 850/900/1800/1900 MHz, compatible with Jio, Airtel, Vi, BSNL, and virtually every GSM carrier worldwide.
- Ultra-Compact Form Factor: At just 25 x 23 mm, the SIM800L breakout fits into the tightest enclosures and wearable prototypes.
- Simple UART Interface: Connect TX, RX, and GND to any microcontroller and control everything with human-readable AT commands - no complex protocol stacks needed.
- Voice, SMS & Data in One Module: Make and receive phone calls, send/receive SMS messages, and establish GPRS TCP/UDP/HTTP connections - all from a single chip.
- Low Power Sleep Mode: Draws as little as 0.7 mA in sleep, ideal for battery-powered remote sensors and solar-powered deployments.
- Built-In Network LED: Instantly diagnose connection status - fast blinking means the module is searching for a network, slow blinking confirms successful registration.
- Onboard Voltage Regulator Friendly: Runs directly from a single LiPo cell (3.7 V nominal), eliminating the need for complex power supply design.
- GPRS Internet Connectivity: Supports HTTP GET/POST, FTP, and raw TCP/IP sockets for cloud data logging, API calls, and firmware OTA concepts.
Why Choose the SIM 800L from The Tech Depot?
- 100% Authentic SIMCom Chipset: Sourced directly from authorized distributors - no clones, no relabeled rejects. Every module is authentication-verified.
- Tested Before Dispatch: Each unit undergoes AT command response verification and network registration check before packaging.
- 1-5 days shipping from Bengaluru: Dispatched from our central warehouse; same-day delivery available within Bengaluru city limits.
- Expert Technical Support: Our embedded-systems engineers provide hands-on guidance via WhatsApp and email - from wiring diagrams to code debugging.
- Comprehensive Documentation: Receive pinout diagrams, wiring guides, sample Arduino/ESP32 code, and the official SIMCom AT command reference.
- Wholesale & Bulk Pricing: Building a fleet of IoT devices? Contact us for volume discounts on 10+ units.
Pinout Overview
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
