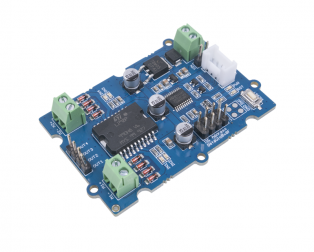

SeeedStudio Grove – I2C Motor Driver (L298P)
SeeedStudio Grove – I2C Motor Driver (L298P)
SeeedStudio Grove – I2C Motor Driver (L298P)
The SeeedStudio Grove I2C Motor Driver is a dual-channel DC motor control module built around the L298P H-bridge IC, enabling precise PWM-based speed and directional control of two independent DC motors via a simple I2C interface. Embedded systems engineers, robotics developers, and automation technicians use this module to eliminate complex wiring and reduce microcontroller GPIO pin requirements in motor-driven applications. It solves the critical challenge of controlling multiple motors with minimal code complexity while maintaining real-time speed regulation and smooth directional switching in autonomous vehicles, robotic arms, and industrial automation projects.
Product Overview
The Grove I2C Motor Driver operates on the principle of an H-bridge topology using the L298P dual full-bridge driver IC, which can handle continuous currents up to 2A per channel with peak currents reaching 3A. The module communicates exclusively through I2C protocol at standard 100kHz or fast 400kHz speeds, eliminating the need for multiple GPIO pins on your microcontroller. An onboard ATmega8L microcontroller manages I2C command parsing, PWM frequency generation at 31.25kHz, and motor direction control logic, allowing users to control motor speed (0-255 PWM levels) and direction with just two I2C data bytes per motor.
What distinguishes this module is its integrated power management and protection circuitry. The L298P features built-in freewheeling diodes for back-EMF protection during motor braking, thermal shutdown protection at 150°C, and current sensing capabilities through onboard resistive dividers. The Grove connector standard ensures plug-and-play compatibility with SeeedStudio Grove shields and development boards, while the compact 40x40mm form factor makes it ideal for space-constrained robotics platforms. The module accepts 5V to 12V DC input, with separate power pins allowing independent motor supply voltage, making it suitable for both low-power educational projects and higher-torque industrial applications.
Key Specifications
| Specification | Details |
| Product Type | I2C Dual Channel DC Motor Driver Module |
| Brand | SeeedStudio |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| Motor Driver IC | L298P Dual Full-Bridge Driver |
| Control Interface | I2C (100kHz/400kHz) |
| Continuous Current Per Channel | 2A (Peak 3A) |
| Input Voltage Range | 5V to 12V DC |
| PWM Frequency | 31.25kHz |
| Speed Control Resolution | 256 levels (0-255 PWM) |
| Onboard Microcontroller | ATmega8L |
| Module Dimensions | 40mm x 40mm |
| Connector Type | Grove Standard 4-pin |
| Protection Features | Freewheeling Diodes, Thermal Shutdown, Current Sensing |
Key Features
- I2C Interface Control: Eliminates need for multiple GPIO pins, allowing control of two DC motors using just SDA and SCL lines, reducing microcontroller pin overhead in complex projects
- Dual Independent Channels: Each motor operates independently with separate speed (0-255) and direction control, enabling differential drive configurations for mobile robots and autonomous systems
- L298P H-Bridge Driver: Delivers continuous 2A per channel with 3A peak capability, supporting motors ranging from 3V toy motors to 12V industrial-grade units with high torque requirements
- Integrated ATmega8L Microcontroller: Handles I2C protocol parsing and PWM generation at 31.25kHz, providing smooth motor acceleration and precise speed ramping without firmware complexity on the host microcontroller
- Back-EMF Protection: Built-in freewheeling diodes protect the driver IC from voltage spikes generated during motor braking and direction reversal, extending module lifespan in demanding applications
- Thermal Management: Integrated thermal shutdown protection at 150°C prevents damage during sustained high-current operations, with current sensing outputs for real-time motor load monitoring
- Grove Standard Compatibility: Direct plug-and-play integration with SeeedStudio Grove shields, Arduino-compatible boards, and Raspberry Pi through I2C expansion boards
- Compact Form Factor: 40x40mm module fits seamlessly into space-constrained robotics platforms, UAV frames, and embedded automation enclosures without requiring external motor driver circuits
Applications and Use Cases
- Mobile Robotics: Implement differential drive systems for autonomous navigation robots, line-following bots, and obstacle-avoidance platforms using dual independent motor control with synchronized PWM speed regulation
- Robotic Manipulators: Control multi-joint robotic arms and grippers with precise speed and directional control per joint, enabling smooth coordinated motion in industrial pick-and-place automation
- Drone and UAV Development: Power brushless motor ESC alternatives and gimbal stabilization systems, with I2C control reducing wiring complexity in compact aerial platforms
- Conveyor Belt Systems: Manage variable-speed conveyor motors in industrial automation with real-time speed adjustment through I2C commands, eliminating potentiometer-based analog control
- Educational Robotics: Teach embedded systems programming with simplified motor control abstractions, allowing students to focus on algorithm development rather than low-level PWM timing
- Smart Home Automation: Control motorized blinds, gate openers, and ventilation fans with centralized I2C control from microcontroller hubs, reducing wiring infrastructure
How to Use
Begin by connecting the Grove I2C Motor Driver to your microcontroller using the Grove I2C interface (SDA to SDA, SCL to SCL, GND to GND, VCC to VCC). Supply 5V to 12V DC power to the module's power input pins, with the ability to provide separate voltage for motor supply if using higher-voltage motors. Connect your DC motors to the OUT1/OUT2 and OUT3/OUT4 terminals, ensuring correct polarity for forward rotation direction. The module operates at I2C address 0x0F by default, which can be modified through firmware if multiple drivers are needed on the same I2C bus.
To control motor speed and direction, send I2C commands with the motor number (1 or 2), direction (forward/backward), and speed value (0-255 PWM). For example, setting motor 1 to forward at 200 PWM speed involves a simple two-byte I2C write operation. Most microcontroller libraries provide pre-built functions for this module, simplifying integration. The module accepts commands at both 100kHz and 400kHz I2C speeds, making it compatible with legacy and modern microcontroller platforms. Monitor the current sensing outputs if implementing load feedback control, with analog outputs proportional to motor current draw for real-time torque estimation and stall detection.
Frequently Asked Questions
Can I control more than two motors with a single Grove I2C Motor Driver module?
No, this module controls exactly two DC motors with independent speed and direction control. For multi-motor applications, you can chain multiple modules on the same I2C bus by modifying the I2C address of each module through firmware reprogramming. Each module occupies a unique I2C address, allowing you to control up to 16+ motors on a single I2C bus depending on your microcontroller's I2C bandwidth.
What is the maximum motor current this driver can handle continuously?
The L298P IC provides 2A continuous current per channel with peak ratings of 3A. Exceeding 2A continuously will trigger thermal shutdown protection at 150°C. For motors requiring more than 2A, consider using multiple modules in parallel or upgrading to higher-rated driver modules. Always verify your motor's stall current specification to ensure safe operation.
Can I use this module with stepper motors or only DC motors?
This module is optimized for DC motor control and will not work effectively with stepper motors. Stepper motors require synchronized multi-phase coil energization that this module's architecture cannot provide. For stepper control, use dedicated stepper driver modules like the DRV8825 or A4988 with appropriate microstepping configurations.
Does the module support motor braking or only forward and reverse rotation?
Yes, the module supports active braking through the L298P H-bridge configuration. By energizing both motor terminals with the same polarity, you create a braking effect that quickly stops the motor. The integrated freewheeling diodes protect the driver IC during this braking transition, preventing voltage spikes that could damage sensitive electronics.
What voltage range should I use for optimal performance?
The module accepts 5V to 12V input voltage. At 5V, you'll get maximum current efficiency but lower torque output suitable for small hobby motors. At 12V, you achieve higher torque and faster acceleration ideal for heavier loads. Choose voltage based on your motor specifications and load requirements, ensuring your power supply can deliver the required current without voltage sag.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
