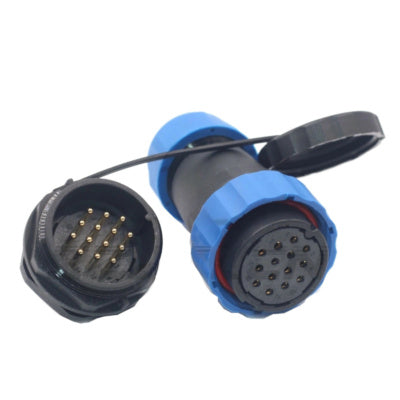

SD20 14PIN 5A Waterproof Panel Mount Aviation Connector Male Plug+Female Socket IP68
SD20 14PIN 5A Waterproof Panel Mount Aviation Connector Male Plug+Female Socket IP68
SD20 14PIN 5A Waterproof Panel Mount Aviation Connector Male Plug+Female Socket IP68
The SD20 14PIN 5A Waterproof Panel Mount Aviation Connector is a robust circular connector system designed for harsh industrial and aerospace applications requiring reliable signal and power transmission in moisture-prone environments. Professional engineers, equipment manufacturers, and field service technicians rely on this connector for mission-critical applications where IP68 waterproof sealing and corrosion resistance are non-negotiable. This connector solves the critical problem of maintaining secure electrical connections in outdoor installations, marine environments, and heavy-duty industrial settings where water ingress and environmental contamination would compromise standard connectors.
Product Overview
The SD20 aviation-style connector operates on the principle of circular mating design with precision-engineered pin contacts and elastomer sealing gaskets that create a complete environmental barrier against moisture, dust, and contaminants. The 14-pin configuration allows simultaneous transmission of multiple signal and power circuits through a single compact connector interface, while the 5A current rating per pin accommodates medium to high-power applications. The male plug and female socket pairing ensures foolproof mating orientation, with keyed designs preventing reverse insertion that could damage sensitive circuits. The panel mount configuration enables direct installation into equipment enclosures, control panels, and junction boxes without requiring additional mounting hardware.
What distinguishes the SD20 from standard connectors is its IP68 rating, which guarantees complete dust ingress protection and temporary submersion capability up to specified depths. The connector features corrosion-resistant materials including stainless steel contacts and nickel-plated brass bodies that maintain conductivity and mechanical integrity even after prolonged exposure to saltwater, industrial chemicals, and UV radiation. The circular design distributes mechanical stress evenly across mating surfaces, resulting in superior durability compared to rectangular connectors. The self-aligning contact geometry ensures consistent contact pressure and minimal insertion force, reducing operator fatigue and connection reliability issues in field installations.
Key Specifications
| Specification | Details |
| Product Type | Waterproof Panel Mount Aviation Connector |
| Pin Configuration | 14 PIN |
| Current Rating | 5A per pin |
| Voltage Rating | 250V AC / 400V DC maximum |
| Connector Style | Male Plug + Female Socket |
| IP Rating | IP68 Waterproof |
| Mounting Type | Panel Mount with threaded coupling |
| Contact Material | Nickel-plated brass with stainless steel springs |
| Body Material | Aluminum alloy with epoxy coating |
| Sealing Gasket | Silicone or EPDM elastomer |
| Operating Temperature | -40°C to +85°C |
| Mating Cycles | 5000+ cycles minimum |
| Brand | Original / Authentic |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
Key Features
- IP68 Waterproof Rating: Complete protection against dust ingress and temporary submersion, ensuring reliable operation in marine, outdoor, and wet industrial environments
- 14-PIN Configuration: Supports simultaneous transmission of multiple independent circuits with 5A capacity per pin, enabling complex signal and power distribution
- Panel Mount Design: Direct installation into equipment enclosures and control panels with M20 or M25 threaded coupling, eliminating need for external mounting brackets
- Male Plug + Female Socket Pairing: Keyed mating design prevents reverse insertion and ensures consistent contact orientation across repeated connection cycles
- Corrosion-Resistant Materials: Nickel-plated brass contacts and stainless steel springs maintain conductivity and mechanical integrity in saltwater and chemically aggressive environments
- Self-Aligning Contact Geometry: Ensures consistent contact pressure and minimal insertion force, reducing operator fatigue and connection reliability issues
- Wide Operating Temperature Range: Rated from -40°C to +85°C, suitable for arctic installations to tropical industrial environments
- 5000+ Mating Cycles: Engineered for long-term durability with minimal wear on contact surfaces and sealing gaskets
Applications and Use Cases
- Marine and Offshore Equipment: Power and signal distribution in ship propulsion systems, navigation equipment, and subsea control modules where saltwater corrosion and submersion are constant threats
- Industrial Process Control: Connection of PLC sensors, motor drives, and field instrumentation in wet manufacturing environments including food processing, chemical plants, and water treatment facilities
- Renewable Energy Systems: Interconnection of solar inverters, wind turbine controllers, and battery management systems exposed to outdoor weather conditions and moisture ingress
- Aerospace Ground Support Equipment: Power distribution and signal transmission in aircraft ground handling equipment, charging stations, and maintenance systems requiring aviation-grade reliability standards
- Outdoor Surveillance and Communication: Weatherproof connection of CCTV cameras, telecommunications equipment, and base station antennas mounted on towers and exposed structures
- Heavy Equipment and Machinery: Electrical interconnection in construction equipment, mining machinery, and agricultural equipment operating in dust-laden and moisture-rich environments
How to Use
Begin by selecting an appropriate panel location with sufficient clearance for connector insertion and removal operations. Drill a mounting hole matching the connector's thread diameter (typically M20 or M25) and ensure the panel thickness accommodates the threaded coupling length. Insert the female socket connector through the panel hole and secure using the provided locknut, ensuring the sealing gasket sits flush against the panel surface to maintain IP68 integrity. Do not over-tighten as this can compress the gasket excessively and reduce its sealing effectiveness.
For the male plug connector, ensure all pin contacts are clean and free of corrosion before mating. Align the connector keys with the socket slots and insert with gentle, steady pressure until you hear or feel the mechanical detent engage, indicating full mating. The self-aligning contact geometry will automatically position pins for optimal contact pressure. To disconnect, rotate the threaded coupling counter-clockwise while supporting the connector body, then withdraw the plug straight away from the socket. After disconnection in wet environments, inspect the sealing gasket for damage or debris accumulation and clean with a soft, lint-free cloth before the next mating cycle. Store disconnected connectors with protective dust caps to prevent contact oxidation and contamination.
Frequently Asked Questions
What does IP68 rating mean for this connector?
IP68 rating indicates complete dust ingress protection (6) and temporary submersion capability (8) under specified conditions, typically up to 1 meter depth for 30 minutes. This means the connector maintains electrical integrity even when fully submerged in fresh or saltwater, making it suitable for marine and outdoor applications where standard connectors would fail. The rating applies to the mated connector pair with properly installed sealing gaskets.
Can I use this connector for high-voltage applications?
The SD20 connector is rated for maximum 250V AC or 400V DC, making it suitable for standard industrial control circuits and low-voltage power distribution. For higher voltage applications exceeding these ratings, you must use specialized high-voltage connectors with appropriate insulation and creepage distances. Always verify your application voltage against the connector specifications before installation to prevent electrical hazards and equipment damage.
How many mating cycles can this connector withstand?
The SD20 is engineered for minimum 5000 mating cycles under normal operating conditions, with proper contact maintenance. Each mating cycle involves insertion, full engagement, and removal of the male plug from the female socket. In high-cycle applications with frequent connections, inspect the sealing gasket and contact surfaces every 1000 cycles for wear or contamination. Degraded gaskets should be replaced to maintain IP68 sealing integrity.
What is the correct installation procedure for panel mounting?
Drill a hole matching your connector thread size (M20 or M25) through the equipment panel. Insert the female socket connector from the rear, ensuring the sealing gasket sits flush against the panel surface. Secure with the provided locknut on the front side, tightening firmly but not excessively to avoid gasket compression damage. Verify the connector rotates freely before final tightening. This ensures proper sealing and allows for future connector rotation if needed for cable routing.
How do I maintain this connector in marine environments?
In saltwater environments, inspect the connector monthly for salt crystal accumulation on the coupling nut and sealing surfaces. Rinse with fresh water and dry with a lint-free cloth. Apply a thin coat of silicone-based dielectric grease to the coupling threads to prevent corrosion and ease future disconnection. Store disconnected connectors with protective dust caps in a dry location. Replace sealing gaskets annually or if visible damage is detected, as saltwater accelerates elastomer degradation.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
