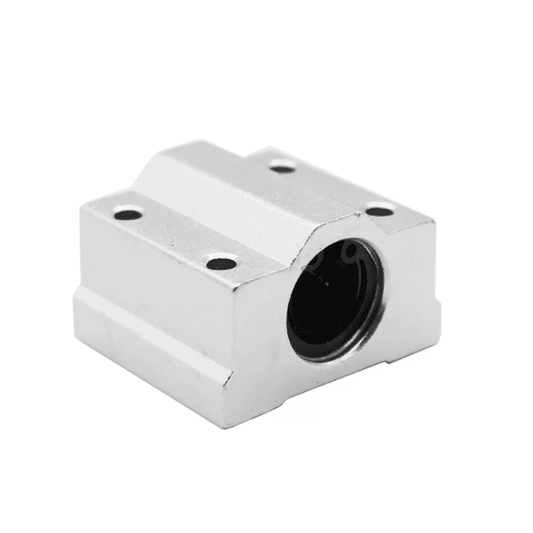

SC8UU Linear Bearing (8 mm)
SC8UU Linear Bearing (8 mm)
SC8UU Linear Bearing (8 mm)
High-quality SC8UU linear bearing block designed for 8 mm shafts, ideal for CNC machines, 3D printers, and precision linear motion systems. Available at The Tech Depot, Bengaluru with fast shipping and dedicated support.
Specifications
| Type | Linear Ball Bearing with Housing Block |
| Model | SC8UU (SCS8UU) |
| Shaft Diameter | 8 mm |
| Bearing Type | Closed Linear Ball Bearing (LM8UU inside) |
| Block Dimensions (L x W x H) | 34 mm x 30 mm x 22 mm |
| Bearing Length | 24 mm |
| Mounting Bolt Spacing | 18 mm x 24 mm |
| Mounting Bolt Size | M4 (4 mounting holes) |
| Material (Housing) | Aluminum alloy |
| Material (Bearing) | Chrome steel balls, steel retainer |
| Dynamic Load Rating | Approx. 294 N |
| Lubrication | Pre-lubricated with grease |
| Motion Type | Smooth linear sliding on 8 mm round shaft |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Why Choose This?
- Integrated aluminum housing block with embedded LM8UU bearing for easy bolt-on mounting
- Precision-ground steel balls deliver smooth, low-friction linear travel on 8 mm shafts
- Self-aligning design compensates for minor shaft misalignment and reduces binding
- Pre-lubricated and sealed for long service life with minimal maintenance
- Four M4 mounting holes allow secure attachment to plates, frames, and extrusions
- Industry-standard dimensions ensure drop-in compatibility with most CNC and 3D printer frames
- 100% authentic from trusted mechanical component suppliers
- 1-5 day shipping, 7-8 day delivery from Bengaluru warehouse across India
- Expert technical support for motion system design and troubleshooting
Project Ideas
- 3D Printer Axes: Use on X, Y, or Z axes of Prusa i3, RepRap, and custom 3D printer builds for precise layer-by-layer motion on 8 mm smooth rods.
- DIY CNC Router / Laser Cutter: Mount on the gantry and carriage to achieve accurate linear travel for cutting, engraving, and milling operations.
- Camera Slider & Motorized Dolly: Build a smooth, vibration-free camera slider for professional video production and time-lapse photography.
- Pick-and-Place Machines: Integrate into automated assembly systems for repeatable, precise component placement.
- Linear Actuator Assemblies: Combine with lead screws or belt drives to create custom linear actuators for robotics and automation.
- Laboratory & Test Equipment: Construct precision positioning stages for sensor calibration, material testing, or sample handling.
- Learning & Education: Great for mechanical engineering students studying linear motion, tolerances, and machine design principles.
What's in the Box
- 1 x SC8UU linear bearing block (with LM8UU bearing pre-installed)
- Documentation and support materials
Frequently Asked Questions
What shaft diameter does the SC8UU fit?
The SC8UU is designed for standard 8 mm diameter hardened smooth rods (linear shafts). Ensure your shaft is ground and hardened for optimal bearing life and smooth motion.
What is the difference between SC8UU and LM8UU?
The LM8UU is the bare cylindrical linear bearing, while the SC8UU includes the same LM8UU bearing pre-installed inside an aluminum housing block with four M4 mounting holes. The SC8UU is ready to bolt onto a flat surface, making installation much easier.
Can I use this on a vertical axis?
Yes, the SC8UU works on vertical, horizontal, or angled axes. For vertical applications, pair it with a lead screw or belt drive to prevent the carriage from sliding under gravity.
How many SC8UU bearings do I need per shaft?
For stable motion without rocking, use at least two SC8UU blocks per shaft, spaced apart on the carriage. Most 3D printers and CNC machines use two bearings per rod.
Does it require lubrication?
It comes pre-lubricated. For extended life, periodically apply a light machine oil or lithium grease to the shaft and bearing, especially in dusty environments or after prolonged use.
