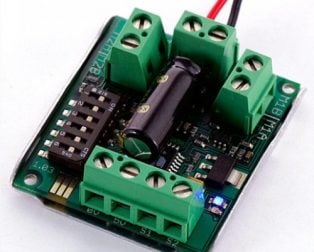

Sabertooth Dual 5A Motor Driver

The Sabertooth Dual 5A Motor Driver is a compact, dual-channel DC motor control module designed for independent speed and direction control of two motors up to 5 amperes each. Professional roboticists, autonomous vehicle developers, and industrial automation engineers rely on this module for precise motor management in applications requiring simultaneous dual-motor operation. This driver solves the critical challenge of managing multiple motors with limited microcontroller pins while maintaining smooth acceleration, dynamic braking, and current protection in demanding embedded systems.

Product Overview

The Sabertooth Dual 5A Motor Driver operates on the principle of PWM (Pulse Width Modulation) control, allowing users to regulate motor speed from 0-100% independently on each channel through simple analog or PWM input signals. The module features a dual H-bridge architecture with integrated MOSFET switches that enable forward, reverse, and dynamic braking operations. Each channel can handle continuous current up to 5 amperes with peak current capability of 10 amperes for short durations, making it suitable for small to medium-sized DC motors, stepper motor drivers, and solenoid control applications.

What distinguishes this motor driver is its simplified interfacing capability—it accepts both analog voltage inputs (0-5V) and PWM signals, eliminating the need for complex serial communication protocols. The onboard logic provides automatic current limiting and thermal protection, preventing damage from motor stalls or short circuits. The compact form factor and low heat dissipation design make it ideal for space-constrained robotics projects, autonomous drones, and embedded control systems where reliability and ease of integration are paramount.

Key Specifications

Key Features

• Dual Independent Motor Control: Manage two DC motors simultaneously with separate speed and direction control for each channel without microcontroller pin limitations
• PWM and Analog Input Support: Accept both PWM signals (1-2kHz) and analog voltage inputs (0-5V) for flexible integration with Arduino, Raspberry Pi, and other microcontrollers
• Dynamic Braking Capability: Achieve rapid motor stopping through electronic braking without mechanical friction, essential for precision robotics and safety-critical applications
• Integrated Current Protection: Built-in overcurrent limiting and thermal shutdown prevent damage from motor stalls, locked rotors, or short circuits during operation
• Compact PCB Design: Small form factor (approximately 2.5" x 1.5") fits easily into tight spaces in robot chassis, drone frames, and embedded systems
• Low Heat Dissipation: Efficient MOSFET switching reduces thermal load, enabling operation without external heatsinks in most applications

Applications and Use Cases

• Mobile Robotics Platforms: Drive differential drive robots, line-following bots, and obstacle-avoidance systems with independent left-right motor control for precise steering and maneuverability
• Autonomous Vehicles and Drones: Control dual propulsion motors in quadcopters, hexacopters, and ground-based autonomous vehicles requiring synchronized motor operation
• Industrial Automation: Operate conveyor belt motors, robotic arm actuators, and automated assembly line equipment with reliable speed regulation and directional control
• Educational Robotics Projects: Perfect for student competitions like RoboWars, line-following challenges, and STEM robotics programs requiring straightforward motor control implementation
• Hobby Electronics and DIY Projects: Build custom motorized projects including camera pan-tilt mechanisms, motorized gates, and automated home automation systems with simple control logic

How to Use

To implement the Sabertooth Dual 5A Motor Driver, begin by connecting your power supply (6-24V DC) to the VCC and GND terminals, ensuring proper polarity to avoid damage. Connect your two DC motors to the OUT1+/OUT1- and OUT2+/OUT2- terminals respectively. For microcontroller integration, connect your control signals to the IN1 and IN2 pins for channel 1, and IN3 and IN4 pins for channel 2. You can use either analog voltage inputs (0-5V) or PWM signals with frequencies between 1-2kHz for speed control.

Configure your microcontroller code to generate appropriate control signals: for analog control, use PWM output pins set to generate 0-5V levels; for PWM control, simply output your desired PWM signal directly. The driver interprets voltage levels or PWM duty cycles to determine motor speed and direction. Test with a simple program first—set one motor to rotate forward at 50% speed while keeping the other stationary to verify correct wiring and functionality. Always include current-limiting resistors on input lines if your microcontroller outputs exceed 5V, and ensure adequate power supply capacity to handle peak current demands of both motors simultaneously.
