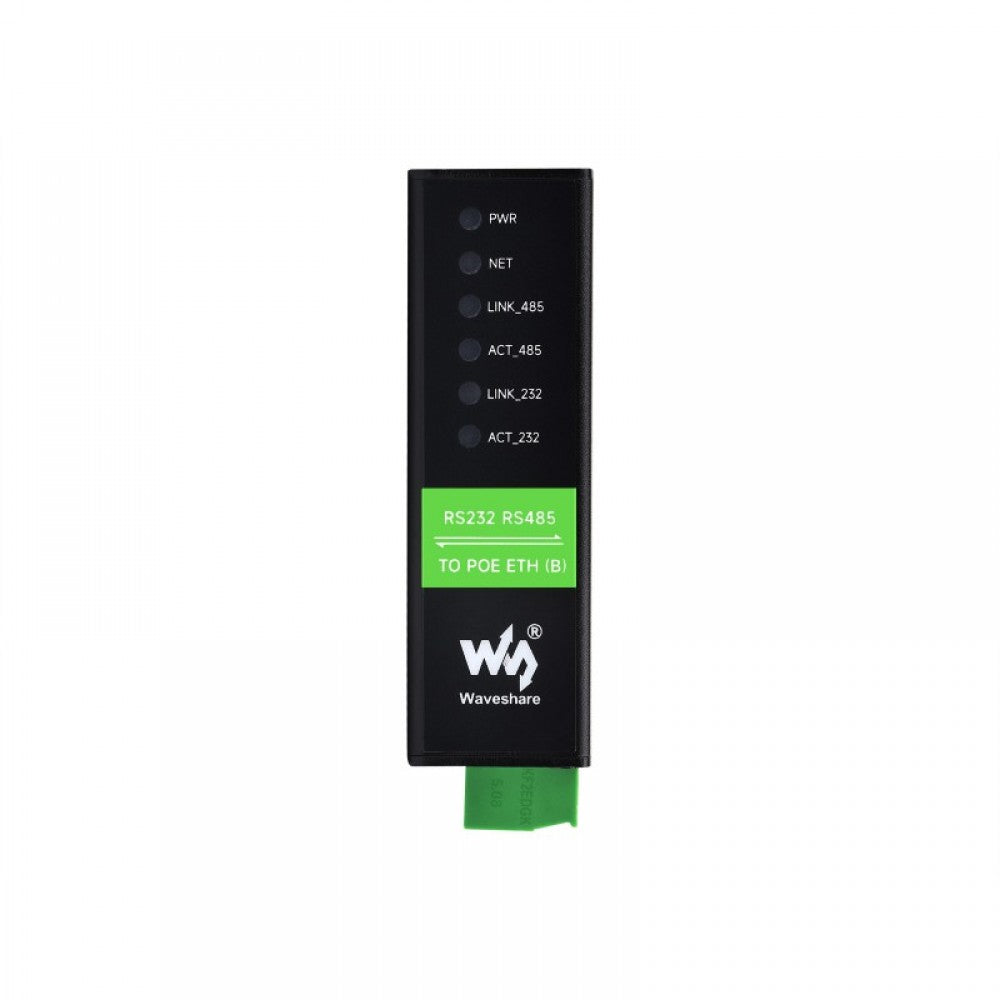

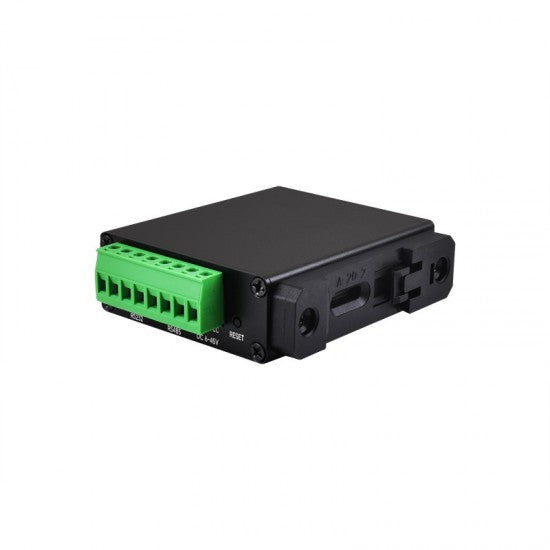

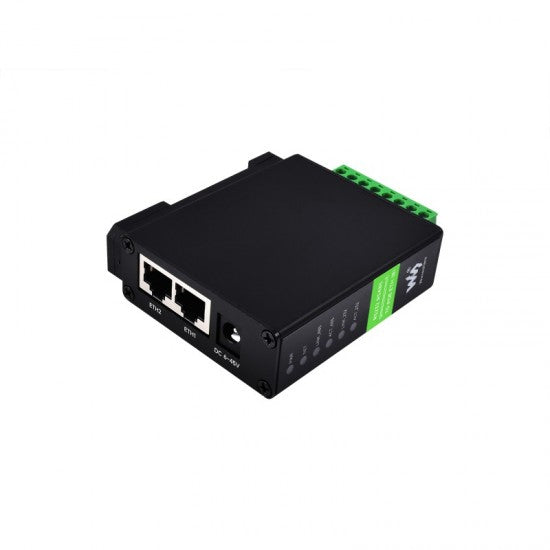

This is a dual serial ports device data acquisitor / IoT gateway designed for the industrial environment, 1-ch RS232 and 1-ch RS485 can work simultaneously without interfering with each other using one Ethernet cable. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232 and RS485 to JSON, etc. The other one Ethernet port can be used as a network switch or for cascading, and the PoE* function is optional for dual Ethernet ports. Provides two power supply methods: DC port (outer diameter: 5.5mm, inner diameter: 2.1mm) and screw terminal. The case with rail-mount support, is small in size, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoriNG


Specifications

  • Product Type : Serial Server, Modbus Gateway, MQTT Gateway
  • Basic Function : Bi-directional transparent data transmission between RS232 and RS485 to Ethernet
  • Communication Interface : RS485x1, RS232x1, Ethernet port x2
  • Power Supply : DC 5.5 power port, screw terminal DC 6~45VWithout PoE network port power supply
  • Isolation Power Supply : Power Isolation, Signal Isolation


Communication

  • Ethernet : PoE Network Port, Support IEEE 802.3af Standard10 / 100M self-negotiation RJ45 interface, 2 KV surge protection
  • Serial Port : Isolated RS232 and RS485 (the 2 channels can receive and transmit independently at the same time)


Serial Specification

  • Baudrate : 300 ~ 115200 bps
  • Parity Bit : None, odd, even, mark, space
  • Data bit : 5 ~ 9 bits
  • Flow control : No flow control


Software

  • Protocol : ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
  • Configure method : Host configure, WEB browser, device management function library
  • Communication method : TCP/IP direct communication, VCOM
  • Operating Mode : TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast


Others

  • Operation temperature : -40 ~ 85
  • Humidity range : 5% ~ 95% relative humidity
  • Dimensions : L x W x H: 78 x 72.5 x 24.2 mm
