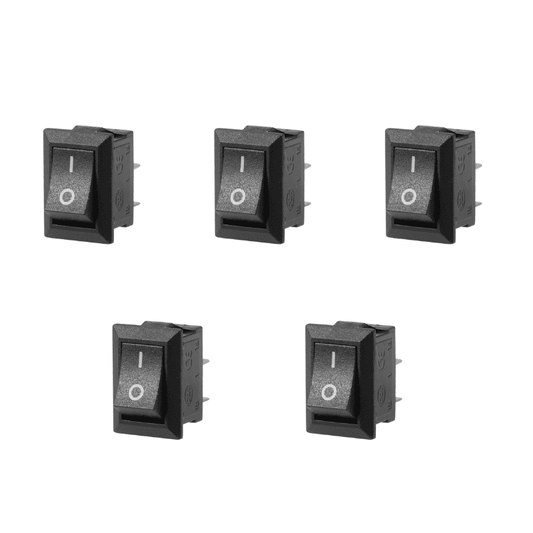

Rocker Switch Mini On/Off SPST 2-Pin KCD11
Compact and reliable KCD11 mini rocker switch for clean on/off power control in electronics projects, appliances, and embedded systems. Available at The Tech Depot, Bengaluru - fast shipping, expert support, and guaranteed authenticity.
Specifications
| Switch Type | SPST (Single Pole Single Throw) - On/Off |
| Model | KCD11 |
| Number of Pins | 2 |
| Rated Voltage | 250V AC / 125V AC |
| Rated Current | 3A at 250V AC / 6A at 125V AC |
| Contact Configuration | Single Pole, Single Throw (On/Off) |
| Actuator Style | Rocker (snap-action toggle) |
| Mounting Style | Panel mount (snap-fit into rectangular cutout) |
| Panel Cutout Size | Approx. 15mm x 10mm (standard KCD11) |
| Body Dimensions | Approx. 21mm x 15mm x 14mm (L x W x H) |
| Terminal Type | Solder lug / PCB pin |
| Insulation Resistance | >=100MOhm |
| Dielectric Strength | 1500V AC for 1 minute |
| Contact Resistance | <=30mOhm |
| Mechanical Life | >=10,000 cycles |
| Operating Temperature | -25 degreesC to +85 degreesC |
| Housing Material | PA66 (Nylon) - flame retardant |
| Contact Material | Silver alloy |
| Color | Black body with black or red actuator (as available) |
| Weight | Approx. 2-3 grams |
| Protection Rating | IP40 (panel-mounted) |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Ultra-Compact KCD11 Form Factor: One of the smallest standard rocker switches available, perfect for space-constrained enclosures, handheld devices, and compact project boxes.
- Simple 2-Pin SPST Configuration: Straightforward on/off switching - connect one pin to the power source and the other to the load. No complex wiring required.
- Satisfying Snap-Action Toggle: Positive tactile click feedback confirms switching state, preventing accidental half-positions and ensuring reliable contact engagement.
- The Tech Depot AC/DC Switching Capability: Rated for 3A at 250V AC and 6A at 125V AC, making it suitable for both low-voltage DC hobby circuits and mains-powered small appliances.
- Snap-Fit Panel Mounting: Retention clips built into the housing allow tool-free installation - simply push into a standard 15mm x 10mm rectangular panel cutout for a secure, professional fit.
- Flame-Retardant Nylon Housing: PA66 body material meets fire safety standards, providing an extra layer of protection in power switching applications.
- Silver Alloy Contacts: Low contact resistance (<=30mOhm) ensures minimal voltage drop and heat generation, contributing to long-term reliability across 10,000+ switching cycles.
- Wide Temperature Tolerance: Operates reliably from -25 degreesC to +85 degreesC, suitable for indoor electronics, outdoor enclosures, and automotive-adjacent applications.
- Lightweight and Low-Profile: At just 2-3 grams and 14mm tall above the panel, it adds virtually no bulk or weight to your design.
- Universal Compatibility: Works seamlessly with Arduino, Raspberry Pi, ESP32, STM32, and virtually any microcontroller or power circuit requiring a manual on/off control.
Why Choose This?
- 100% authentic from trusted suppliers - no counterfeit or substandard components
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse to most locations across India
- Expert technical support included - get wiring guidance, project advice, and troubleshooting help
- Industry-standard KCD11 footprint ensures compatibility with thousands of existing enclosure designs
- Ideal balance of size, current rating, and cost for prototyping and production runs
How It Works
The KCD11 is a mechanically simple yet highly reliable switch. It operates on the SPST (Single Pole Single Throw) principle - it controls a single circuit with two states: open (off) and closed (on). When the rocker is pressed to the
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
