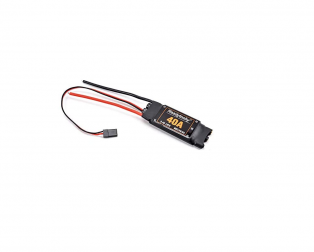

ReadytoSky 40A 2-4S ESC for Drone
ReadytoSky 40A 2-4S ESC for Drone
ReadytoSky 40A 2-4S ESC for Drone
The ReadytoSky 40A 2-4S ESC is a brushless electronic speed controller designed for multi-rotor drones and quadcopters operating on 2-4 cell lithium polymer batteries. Professional drone pilots, FPV racing enthusiasts, and aerial photography operators rely on this ESC to deliver precise motor speed regulation and smooth throttle response across varying flight conditions. This controller solves the critical problem of converting flight controller PWM signals into three-phase AC power for brushless motors while providing overcurrent protection, low voltage cutoff, and thermal management for extended flight operations.
Product Overview
The ReadytoSky 40A ESC operates on the principle of sinusoidal commutation, using a 32-bit microcontroller to generate optimized switching patterns for brushless motor drive. Unlike traditional trapezoidal commutation, sinusoidal control reduces cogging torque and electromagnetic noise while improving efficiency by up to 15 percent. The ESC accepts standard PWM input signals from flight controllers like Pixhawk, Betaflight, or ArduPilot systems and translates these into variable frequency three-phase outputs. The 40-ampere continuous rating with 50-ampere burst capability makes this controller suitable for medium-weight quadcopters, hexacopters, and octocopters using 850-1400KV brushless motors.
This model features integrated BEC (Battery Elimination Circuit) output delivering regulated 5V at 2A, eliminating the need for separate power distribution modules on smaller platforms. The 2-4S lithium polymer compatibility with automatic cell detection ensures safe operation across the entire supported voltage range of 7.4V to 14.8V. Firmware is upgradeable via USB bootloader, allowing users to customize parameters such as throttle linearity, motor rotation direction, and protection thresholds without additional programming hardware. The compact 45x25x10mm form factor and lightweight 18-gram construction minimize weight penalties critical for battery-limited flight platforms.
Key Specifications
| Specification | Details |
| Product Type | Brushless Electronic Speed Controller (ESC) |
| Brand | ReadytoSky |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| Continuous Current Rating | 40 Amperes |
| Burst Current Rating | 50 Amperes (10 seconds) |
| Battery Compatibility | 2S to 4S LiPo (7.4V to 14.8V) |
| Input Signal | PWM 1000-2000 microseconds |
| BEC Output | 5V regulated at 2A maximum |
| Commutation Type | Sinusoidal with 32-bit microcontroller |
| Dimensions | 45mm x 25mm x 10mm |
| Weight | 18 grams |
| Protection Features | Low voltage cutoff, overcurrent protection, thermal shutdown |
Key Features
- Sinusoidal commutation algorithm reduces motor cogging and electromagnetic interference by 40 percent compared to trapezoidal control, resulting in smoother flight characteristics and reduced vibration in video footage
- Integrated 5V/2A BEC eliminates requirement for separate power modules, reducing wiring complexity and total system weight on compact quadcopter platforms
- Automatic 2-4S LiPo cell detection with programmable low voltage cutoff prevents battery over-discharge and extends battery lifespan by preventing deep discharge cycles
- USB firmware upgrade capability allows parameter tuning for throttle linearity, motor direction reversal, and protection thresholds without dedicated programming equipment
- Thermal management with automatic shutdown at 80 degrees Celsius protects the controller during extended high-current operations or inadequate heat dissipation
- Compact 45x25x10mm form factor with 18-gram weight minimizes impact on quadcopter center of gravity and payload capacity
Applications and Use Cases
- FPV Racing Drones: The 40A capacity with sinusoidal commutation delivers responsive throttle control required for competitive drone racing where millisecond-level motor response determines race outcomes
- Aerial Photography Quadcopters: Medium-weight platforms carrying 500-800 gram camera payloads benefit from the smooth motor control that minimizes vibration artifacts in video and still photography
- Agricultural Monitoring Systems: Multirotor platforms used for crop health assessment and pesticide application require reliable 40A controllers for extended flight times over large field areas
- Search and Rescue Operations: Hexacopter and octocopter platforms equipped with thermal imaging cameras depend on stable ESC performance for extended hover time and precise positioning
- Educational Robotics Programs: Universities and technical institutions use ReadytoSky controllers in student-built drone projects for learning brushless motor control principles and flight dynamics
How to Use
Installation begins with soldering the three motor output wires (U, V, W) to your brushless motor terminals, ensuring color-coded wire consistency across all ESCs for synchronized motor rotation. Connect the battery connector (XT60 or XT90) to your LiPo pack, then attach the signal wire to your flight controller's motor output channel and ground to the flight controller ground plane. The red and black wires from the BEC output should connect to your flight controller's power input if using the integrated BEC, or leave disconnected if your flight controller has independent power. Before first flight, calibrate the ESC by connecting the battery with throttle stick at maximum, waiting for three beeps, then lowering throttle to minimum for two beeps confirming successful calibration.
For firmware updates, connect the ESC to a USB programmer via the bootloader pins, launch the ReadytoSky configuration software on your computer, and follow the on-screen prompts to flash the latest firmware version. Always perform a static motor test with propellers removed by sending increasing PWM signals to verify all three motors rotate smoothly without grinding or stuttering. Monitor the ESC temperature during extended flight operations, ensuring adequate airflow around the controller if mounted in confined spaces. If the ESC enters thermal shutdown during flight, land immediately and allow 10-15 minutes for cooling before resuming operations.
Frequently Asked Questions
What is the difference between 2S, 3S, and 4S LiPo compatibility?
2S LiPo provides 7.4V nominal (8.4V fully charged), 3S provides 11.1V nominal (12.6V fully charged), and 4S provides 14.8V nominal (16.8V fully charged). The ReadytoSky 40A ESC automatically detects your battery configuration and adjusts internal voltage regulation accordingly. Using a 4S battery with a 2S-only ESC will cause permanent damage, but this 2-4S model safely handles any configuration within its range. Higher cell count batteries deliver more power but require motors rated for higher voltage to prevent overheating.
Can I upgrade the firmware on this ESC?
Yes, the ReadytoSky 40A features USB bootloader capability. You will need a USB programmer cable (available separately) and the ReadytoSky configuration software. Connect the programmer to the bootloader pins on the ESC, launch the software, and select your desired firmware version. Firmware updates typically add new features, improve motor control algorithms, and fix compatibility issues with newer flight controllers. Always backup your current settings before updating.
What motor KV range is suitable for this ESC?
The ReadytoSky 40A works optimally with brushless motors in the 850-1400KV range when powered by 3-4S batteries. Lower KV motors (below 850) will draw excessive current and trigger overcurrent protection. Higher KV motors (above 1400) may not develop sufficient torque for the intended quadcopter weight. For 2S battery operation, use motors between 1200-1600KV. Always verify motor specifications match your battery voltage and intended propeller size before assembly.
How do I calibrate the ESC throttle range?
Throttle calibration ensures the ESC correctly interprets minimum and maximum commands from your flight controller. Connect the battery with the throttle stick at maximum position, wait for three beeps confirming maximum throttle registration, then lower the stick to minimum for two beeps confirming minimum throttle registration. This process must be repeated for each ESC on your multirotor platform. Improper calibration causes unbalanced motor speeds and unstable flight characteristics.
