Raspberry Pi 4 Model B 4GB Starter Kit
The Raspberry Pi 4 Model B 4GB Starter Kit is a complete single-board computer system featuring a quad-core ARM Cortex-A72 processor running at 1.5GHz with 4GB LPDDR4 RAM, designed for embedded systems development, IoT applications, and educational projects. Professional developers, systems engineers, and makers use this kit to prototype Linux-based applications, build automation systems, and develop edge computing solutions without requiring extensive hardware expertise. This starter kit solves the complexity of sourcing individual components by bundling the essential peripherals including a power supply, microSD card, HDMI cable, and cooling case, enabling users to begin development immediately.
Product Overview

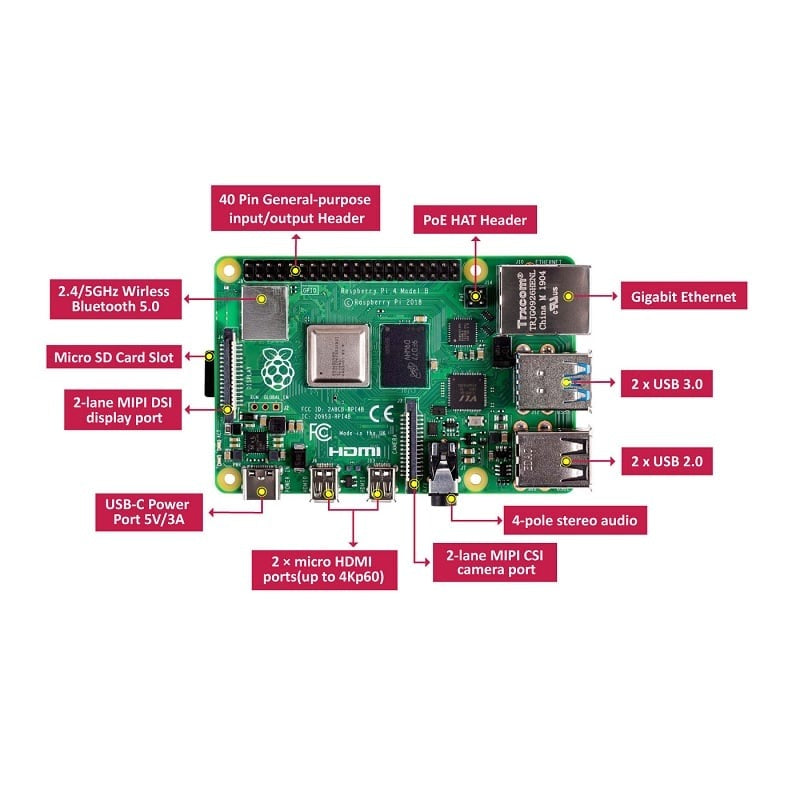

The Raspberry Pi 4 Model B 4GB represents a significant advancement in single-board computing, delivering desktop-class performance in a compact 85.6mm x 56.5mm form factor. At its core, the BCM2711 system-on-chip integrates a quad-core ARM Cortex-A72 processor with VideoCore VI GPU, supporting dual 4K HDMI output at 60fps and hardware-accelerated video encoding/decoding up to 1080p. The 4GB LPDDR4 configuration provides sufficient memory for multitasking, containerized applications, and machine learning inference workloads. Connectivity options include dual-band 802.11ac WiFi with MIMO, Bluetooth 5.0, Gigabit Ethernet with PoE capability, two USB 3.0 ports for high-speed peripherals, and two USB 2.0 ports, alongside a 40-pin GPIO header for direct hardware interfacing.
This starter kit distinguishes itself through comprehensive thermal management with an aluminum heatsink and optional active cooling, enabling sustained performance under continuous operation without thermal throttling. The included official Raspberry Pi power supply delivers 5.1V at 3A with USB-C connector, ensuring stable operation even when driving power-intensive peripherals. The pre-configured microSD card with Raspberry Pi OS eliminates setup complexity, allowing immediate boot into a Debian-based Linux environment with Python 3, Node.js, and development tools pre-installed. The protective ABS case with proper ventilation maintains component integrity while allowing full GPIO access, making this kit ideal for both prototyping and permanent installations.
Key Specifications
| Specification | Details |
| Product Type | Single Board Computer Starter Kit |
| Brand | Raspberry Pi Foundation |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| Processor | Broadcom BCM2711 Quad-core ARM Cortex-A72 1.5GHz |
| RAM | 4GB LPDDR4 SDRAM |
| Storage | microSD Card Slot (Card included) |
| Video Output | Dual micro-HDMI ports supporting 4K@60fps |
| USB Ports | 2x USB 3.0, 2x USB 2.0 |
| Networking | Gigabit Ethernet, Dual-band 802.11ac WiFi, Bluetooth 5.0 |
| GPIO | 40-pin header with 28 GPIO pins |
| Power Input | USB-C 5.1V 3A (PSU included) |
| Operating Temperature | 0-50°C |
| Kit Contents | Raspberry Pi 4 Model B, Official PSU, microSD Card 32GB, HDMI Cable, ABS Case, Heatsink |
Key Features
- Quad-core ARM Cortex-A72 processor at 1.5GHz with 4GB LPDDR4 RAM delivering 4x performance improvement over Pi 3B+ for multithreaded applications and real-time processing
- Dual 4K HDMI output with independent display support enabling dual-monitor setups for desktop computing or video wall applications without external adapters
- Gigabit Ethernet with Power over Ethernet support allowing network boot and remote power delivery, eliminating the need for separate power infrastructure in distributed deployments
- USB 3.0 ports providing 10x faster data transfer rates compared to USB 2.0, critical for high-bandwidth applications like external SSD storage or industrial camera interfaces
- Dual-band WiFi 802.11ac with MIMO and Bluetooth 5.0 enabling seamless wireless connectivity with extended range suitable for IoT mesh networks and remote monitoring systems
- Official aluminum heatsink with thermal design preventing throttling during sustained CPU-intensive workloads, maintaining consistent performance in production environments
Applications and Use Cases
- IoT Gateway Development: Deploy containerized services using Docker to aggregate sensor data from multiple edge devices, process locally with Python or Node.js, and forward filtered results to cloud platforms, reducing bandwidth and latency
- Machine Learning Inference: Run TensorFlow Lite or PyTorch models for image classification, object detection, or anomaly detection at the edge with GPU acceleration, ideal for surveillance systems or predictive maintenance applications
- Home Automation Controller: Build MQTT-based smart home hubs controlling lighting, HVAC, and security systems with local processing ensuring privacy and offline functionality when internet connectivity is unavailable
- Industrial Data Logger: Interface with Modbus/RTU sensors via GPIO or USB adapters to collect manufacturing metrics, perform real-time analytics, and generate automated alerts with 4GB RAM supporting extended data buffering
- Media Center and Streaming Server: Deploy Kodi or Jellyfin with dual 4K HDMI output for multi-room entertainment systems, or create a Plex server with USB 3.0 external storage for personal media libraries
- Educational Robotics Platform: Control robotic arms, autonomous vehicles, or drone systems through GPIO PWM outputs while running computer vision algorithms for navigation and obstacle detection
How to Use
Begin by inserting the pre-configured microSD card into the slot on the underside of the Raspberry Pi 4, then connect the official power supply via USB-C to boot into Raspberry Pi OS. Connect your display using the included micro-HDMI cable to one of the two HDMI ports, attach a USB keyboard and mouse to the USB ports, and connect to your network via Ethernet or WiFi. The system will boot to the desktop within 30 seconds, where you can access the terminal, Python IDE, or graphical applications. For headless operation, enable SSH through the Raspberry Pi Configuration utility and connect remotely via terminal using the device's IP address obtained from your router's DHCP client list.
For GPIO-based hardware projects, install the RPi.GPIO or gpiozero Python libraries to control pins programmatically. The 40-pin header provides 3.3V logic levels, so interface with external sensors and actuators using appropriate level shifters for 5V devices. For advanced applications requiring real-time performance, consider running a lightweight Linux distribution like DietPi or Ubuntu Server Core, which provides reduced overhead compared to the full desktop environment. The 4GB RAM allows comfortable multitasking with multiple Python scripts, web servers, and background services running simultaneously without memory exhaustion or swap thrashing.
Frequently Asked Questions
Can the Raspberry Pi 4 4GB run desktop applications and serve as a primary computer?
Yes, the Raspberry Pi 4 4GB can function as a desktop computer for productivity tasks including web browsing, document editing, and media playback. The 4GB RAM supports smooth multitasking with multiple browser tabs and applications. However, performance will be noticeably slower than modern laptops for CPU-intensive tasks like video editing or compilation. It excels as a secondary computer for email, spreadsheets, and light development work, or as a dedicated server for specific applications.
What is the maximum storage capacity and can I use NVMe SSDs?
The Raspberry Pi 4 supports microSD cards up to 1TB capacity, though practical limits are typically 512GB due to formatting constraints. For larger storage, connect external USB 3.0 drives or SSDs via the USB ports, which provide significantly faster performance than microSD cards. NVMe SSDs require a USB adapter, as the Pi lacks native M.2 slots. For network storage, mount NFS or SMB shares from external NAS devices via Gigabit Ethernet for high-speed access without consuming local USB bandwidth.
Does the Pi 4 support hardware video encoding and what codecs are available?
Yes, the VideoCore VI GPU provides hardware-accelerated H.264 encoding at up to 1080p30 and H.265 decoding, making it suitable for streaming applications and video surveillance systems. The omxenc and ffmpeg libraries interface with the hardware encoder. For 4K encoding, performance is limited to software encoding using the CPU, which will consume significant processing power. This hardware capability is invaluable for security camera applications or live streaming where CPU efficiency is critical.
Can I power the Raspberry Pi 4 using a standard USB-C phone charger?
Most standard phone chargers delivering 5V at 2A are insufficient and will cause voltage sag, particularly when driving USB peripherals or intensive GPIO loads. The official 5.1V 3A power supply included in this kit is specifically designed to maintain stable voltage under peak load conditions. Using undersized power supplies risks data corruption on the microSD card and unpredictable system behavior. If using alternative supplies, verify they deliver at least 3A at 5.1V with proper cable gauge to minimize voltage drop.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
