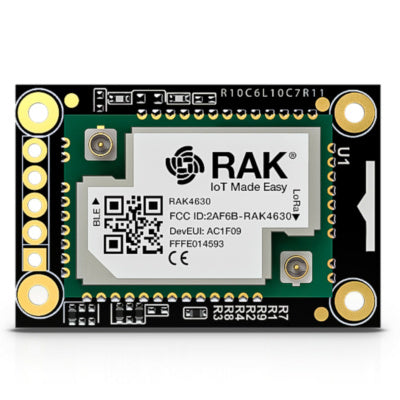

RAK4630 WisBlock LPWAN Module
RAK4630 WisBlock LPWAN Module
RAK4630 WisBlock LPWAN Module
The RAK4630 WisBlock LPWAN Module is a compact, multi-protocol wireless communication module designed for IoT applications requiring long-range, low-power connectivity. Professional engineers and IoT developers use this module to build scalable wireless sensor networks, remote monitoring systems, and asset tracking solutions across industries. It solves the critical challenge of achieving extended battery life while maintaining reliable long-distance communication in environments where traditional cellular or WiFi connectivity is impractical or cost-prohibitive.
Product Overview
The RAK4630 is a powerful WisBlock LPWAN core module built around the nRF52840 microcontroller with integrated LoRaWAN and NB-IoT capabilities. It operates on the principle of ultra-narrowband modulation and adaptive data rate mechanisms, allowing devices to transmit data over several kilometers while consuming minimal power. The module integrates a 64MHz ARM Cortex-M4 processor with 256KB RAM and 1MB flash memory, enabling complex signal processing and local data management directly on the device. Its modular WisBlock architecture allows seamless integration with various sensor and interface modules, making it ideal for rapid prototyping and production-grade deployments.
What distinguishes the RAK4630 is its dual-mode capability supporting both LoRaWAN Class A/B/C protocols and NB-IoT connectivity, providing flexibility in network selection based on regional infrastructure and application requirements. The module features an onboard power management unit with ultra-low sleep current consumption of approximately 2 microamps, extending battery life to several years in typical IoT applications. Its industrial-grade design includes comprehensive security features including AES-128 encryption, secure key management, and support for OTAA and ABP join modes, ensuring data integrity and device authentication in mission-critical deployments.
Key Specifications
| Specification | Details |
| Product Type | WisBlock LPWAN Core Module |
| Brand | RAK Wireless |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| Microcontroller | nRF52840 ARM Cortex-M4 64MHz |
| Memory | 256KB RAM, 1MB Flash Memory |
| Communication Protocols | LoRaWAN, NB-IoT, Bluetooth 5.0 |
| Operating Frequency | LoRa: 868/915MHz, NB-IoT: LTE Band 20/8 |
| Sleep Current | 2 microamps (ultra-low power mode) |
| Operating Temperature | -40 to +85 degrees Celsius |
Key Features
- Dual-Mode Connectivity: Supports both LoRaWAN and NB-IoT protocols, enabling network flexibility and fallback options for critical applications
- Ultra-Low Power Consumption: Sleep current of 2 microamps ensures multi-year battery life in remote sensor deployments and asset tracking solutions
- WisBlock Modular Architecture: Seamless compatibility with WisBlock sensor and interface modules, reducing development time and enabling rapid system expansion
- Military-Grade Security: AES-128 encryption, secure key management, and support for OTAA/ABP authentication modes protect sensitive IoT data
- Extended Range Transmission: LoRa modulation achieves communication distances up to 15km in line-of-sight conditions with minimal transmit power
- Integrated Bluetooth 5.0: Local wireless connectivity for configuration, debugging, and short-range communication without external modules
Applications and Use Cases
- Smart Agriculture: Deploy soil moisture and temperature sensors across large farms using LoRaWAN for real-time crop monitoring and irrigation optimization with minimal power consumption
- Industrial IoT Monitoring: Monitor equipment health, vibration, and temperature in factories and manufacturing plants where WiFi coverage is unreliable or unavailable
- Smart City Infrastructure: Build connected streetlight networks, parking sensors, and environmental monitoring stations using NB-IoT for reliable urban data collection
- Asset Tracking and Logistics: Track high-value shipments and fleet vehicles across regions using long-range LoRa connectivity with GPS integration for location-based services
- Environmental Monitoring: Deploy weather stations, air quality sensors, and water level monitors in remote locations with autonomous operation for months without maintenance
- Building Energy Management: Monitor HVAC systems, occupancy sensors, and power consumption across multi-floor commercial buildings with centralized data aggregation
How to Use
To begin using the RAK4630 WisBlock LPWAN Module, first mount it onto a compatible WisBlock base board such as the RAK5005-O or RAK5005-D, ensuring proper alignment of the 40-pin connector and secure mechanical fastening. Connect the module to your development computer via USB or UART interface, then install the Arduino IDE with RAK Board Support Package or use the RAK Studio development environment. Configure your LoRaWAN credentials including DevEUI, AppEUI, and AppKey in the firmware, then select your regional frequency band (EU868, US915, etc.) and join mode (OTAA for dynamic key management or ABP for static configuration).
For sensor integration, attach WisBlock sensor modules to the available slots on your base board, ensuring proper I2C or SPI communication configuration in your firmware. Implement your application logic using the provided Arduino libraries and RAK example sketches, which handle low-level protocol management and power optimization automatically. Test your setup using the RAK Serial Tool to monitor debug messages and verify successful LoRaWAN join procedures. Once validated, deploy the module in your target environment, monitor battery voltage periodically, and leverage the module's adaptive data rate algorithm to optimize transmission parameters based on signal quality and network conditions.
Frequently Asked Questions
What is the maximum transmission range of the RAK4630 module?
The RAK4630 achieves communication distances up to 15 kilometers in line-of-sight conditions using LoRa modulation with optimal spreading factors. In urban environments with obstacles, typical range is 2-5 kilometers. NB-IoT mode provides slightly shorter range but superior penetration through buildings and obstacles. Actual range depends on antenna quality, transmit power settings, and environmental interference.
How long can the RAK4630 operate on a single battery charge?
Battery life depends on your application profile. With a 3000mAh battery and typical sensor readings every 15 minutes, the module can operate for 6-12 months. The ultra-low 2 microamp sleep current minimizes standby power drain. Factors affecting battery life include transmission frequency, payload size, spreading factor selection, and ambient temperature. Using adaptive data rates and duty cycle optimization can extend battery life to 2-3 years in low-activity applications.
Can the RAK4630 support multiple sensor connections simultaneously?
Yes, the RAK4630 supports multiple sensor modules through the WisBlock ecosystem. The base board typically provides multiple expansion slots with independent I2C and SPI buses, allowing simultaneous connection of temperature, humidity, pressure, GPS, and accelerometer modules. The nRF52840 microcontroller handles multiplexing and data aggregation efficiently, enabling complex multi-sensor applications with minimal power overhead.
Is the RAK4630 suitable for outdoor deployment in harsh environments?
The RAK4630 is designed for industrial-grade applications with operating temperature range from -40 to +85 degrees Celsius, making it suitable for outdoor deployment. However, the module itself requires protection from direct moisture and mechanical damage. Use appropriate enclosures with IP65 or higher rating, and ensure proper antenna weatherproofing. The module's robust design handles temperature fluctuations and electrical noise common in industrial environments.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
