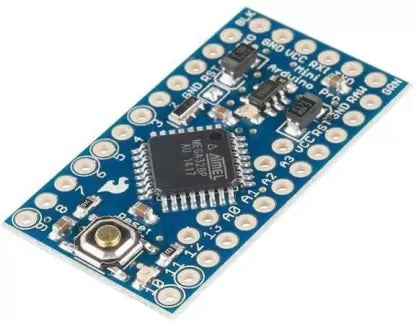

Pro Mini ATmega328P 3.3V 8MHz / 5V 16MHz with Jumper Wire
Compact, powerful, and breadboard-friendly - the Pro Mini ATmega328P is a stripped-down Arduino-compatible microcontroller board designed for space-constrained and embedded projects. Available in both 3.3V/8MHz and 5V/16MHz configurations, this board delivers the full capability of the ATmega328P in an ultra-small form factor. Shipped with jumper wires for immediate prototyping. Premium electronics from The Tech Depot, Bengaluru. Fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Microcontroller | ATmega328P |
| Operating Voltage Options | 3.3V @ 8MHz or 5V @ 16MHz |
| Clock Speed | 8MHz (3.3V version) / 16MHz (5V version) |
| Digital I/O Pins | 14 (6 provide PWM output) |
| Analog Input Pins | 8 |
| Flash Memory | 32KB (2KB used by bootloader) |
| SRAM | 2KB |
| EEPROM | 1KB |
| Board Dimensions | ~33mm x 18mm (ultra-compact) |
| Communication | UART (Serial), SPI, I2C |
| Programming Interface | FTDI-compatible 6-pin header (FTDI adapter required, sold separately) |
| Bootloader | Arduino Pro Mini (pre-loaded) |
| Input Voltage (RAW pin) | 3.35V-12V (3.3V version) / 5V-12V (5V version) |
| Included Accessory | Jumper wires for breadboard connection |
| Compatibility | Arduino IDE (select "Arduino Pro or Pro Mini" in board manager) |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Ultra-Compact Form Factor: At just 33mm x 18mm, the Pro Mini is one of the smallest Arduino-compatible boards available - ideal for embedding inside enclosures, wearables, and tight spaces where a full-size Arduino Uno simply won't fit.
- Dual Voltage Options: Choose the 3.3V/8MHz version for battery-powered and low-power sensor projects, or the 5V/16MHz version for maximum processing speed and 5V-logic sensor compatibility.
- Full ATmega328P Power: Same microcontroller as the Arduino Uno - 32KB flash, 2KB SRAM, 14 digital I/O pins, 8 analog inputs, PWM, UART, SPI, and I2C. No compromises on functionality.
- Breadboard-Friendly Design: Pin headers can be soldered in any orientation for direct breadboard insertion. Included jumper wires let you start prototyping right out of the box.
- Low Power Consumption: The 3.3V/8MHz variant is particularly suited for battery-operated projects, consuming significantly less power than its 5V counterpart - perfect for remote sensors and IoT nodes.
- On-Board Voltage Regulator: The RAW pin accepts a range of input voltages (up to 12V), with the on-board regulator providing stable 3.3V or 5V to the microcontroller.
- Pre-Loaded Bootloader: Ships with the Arduino Pro Mini bootloader pre-installed - simply connect an FTDI USB-to-serial adapter, open the Arduino IDE, and upload your sketches immediately.
- Minimal Footprint, Maximum Flexibility: No USB port or unnecessary components - every pin and feature is intentionally exposed, giving you complete control over your design.
Why Choose the Pro Mini ATmega328P?
- 100% Authentic: Sourced directly from trusted suppliers with genuine ATmega328P chips - no counterfeit or remarked components.
- Ready to Prototype: Included jumper wires mean you can connect to a breadboard and start building circuits immediately.
- Perfect for Permanent Installations: Unlike development boards with USB ports and extra circuitry, the Pro Mini's minimal design makes it ideal for soldering into final PCBs and permanent project enclosures.
- 1-5 days shipping: Ships from our Bengaluru warehouse to most locations across India. Same-day delivery available within Bengaluru.
- Expert Technical Support: Our engineering team provides guidance on wiring, programming, FTDI adapter selection, and project integration via email and WhatsApp.
- Cost-Effective for Multi-Board Projects: The Pro Mini's low price point makes it practical to deploy multiple microcontrollers across a single project - sensor networks, multi-node systems, and distributed control.
Project Ideas
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
